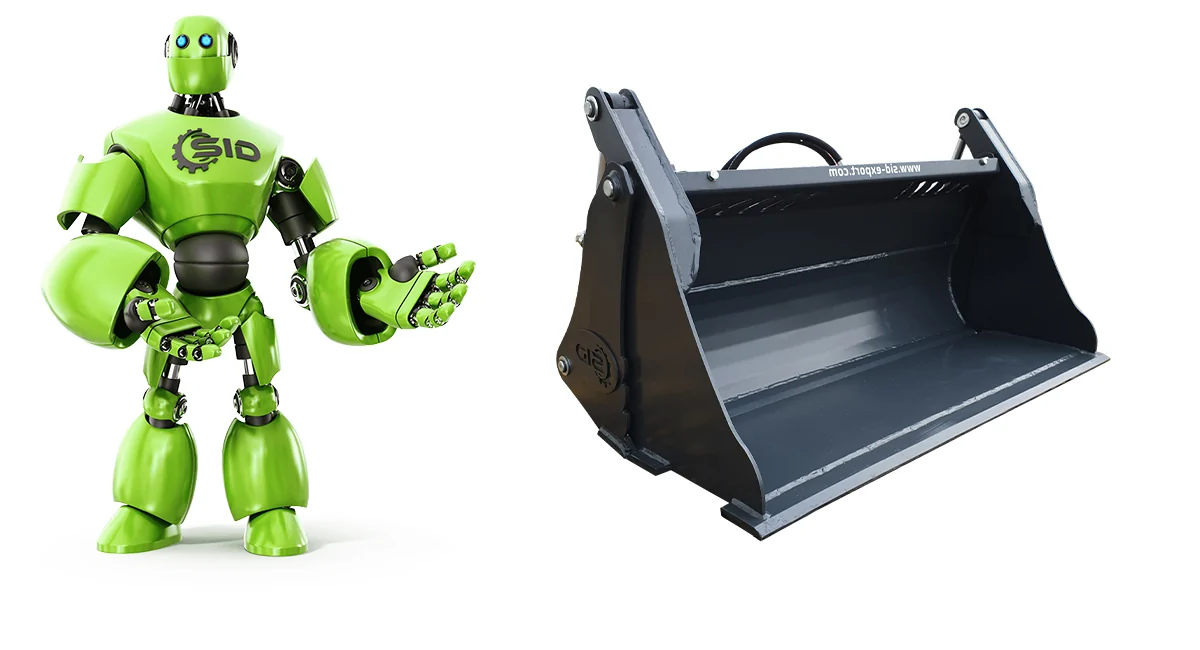

4 in 1 multi-functional bucket – mini
The 4-in-1 multi-functional bucket – is designed with broad purposes and applications in mind. This attachment finds applications in agricultural, forestry and municipal work.
Thanks to the application of blades made of abrasion-resistant HARDOX steel and the capability of lubricating moving joints on sleeves, the machine is protected against rapid wear. The 4-in-1 multi-functional scoop has the moving part of the scoop mounted with rotation, affording wide opening thanks to two hydraulic cylinders.
Main product features
4-in-1 multi-functional scoop made of S355 steel, 5 mm plating and 8 mm sides
Hardox 12 × 110 abrasion resistant blades for long bucket life.
Moving places lubricated on replaceable sliding sleeves.
Two actuators FI 73 mm.
Possibility of screwing teeths, additionally payable.
Pins made of quality steel C45 FI 30, galvanized.
Hydraulic hoses: DN10 2SN double steel braid, strength 330 bar.
Wysokość łyżki 705 mm.
Bucket depth 724 mm.
Euro fastening is provided in the standard version, all others available on order at the client’s request.
||0,18 m³||173 kg|
|1400 mm||0,25 m³
|1600 mm||0,29 m³||227 kg|
