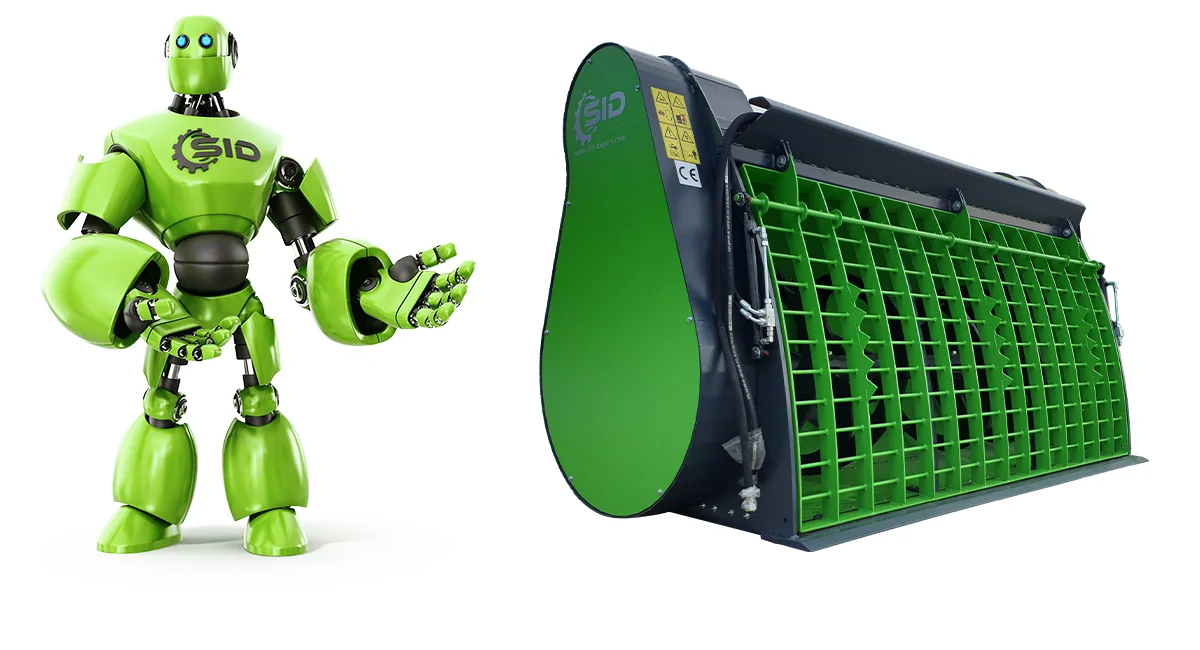

Concrete mixer TORNADO MAX
The TORNADO MAX concrete mixer is a professional equipment that is used on the construction site, for hardening and renovating pavements, water channels, sewers, and is also ideal for mixing feed.
The TORNADO MAX concrete mixer is an improved version of the standard mixer. Recommended especially on construction sites with limited or no access to electricity. Before direct use, the required amount of material can be mixed and transported to any place. The TORNADO concrete mixer is hydraulically driven from the installation on the machine arm.
Main product features
TORNADO bucket concrete mixer allows to minimize the cost of concrete production practically to the cost of raw materials: aggregate, water and cement.
The TORNADO concrete mixer is equipped with a safety hatch with teeth for ripping the bags.
The grate protects the mixer against stones and other impurities that may damage or block the impeller.
The lower part with a blade has been moved forward in the mixer for easier scooping of gravel straight from the heap.
Can be mounted on mini loaders, loaders, backhoe loaders, telehandlers and agricultural tractors.
Dry blending possible.
The Tornado concrete mixer is made of 6mm S355 steel with replaceable 3mm thick inserts, screwed to the mixer structure in places most exposed to abrasion.
Stirrer with a diameter of 700 mm, thickness 12 mm, interchangeable, screwed.
The standard is euro mount, each other on request according to customer needs.
A new solution for connecting the blades - much stronger.
It is possible to produce a mixer with dimensions according to customer needs.
Pipe fi 90mm, replaceable screwed.
Driven by the 800 cm3 OMT orbital hydraulic motor.
Power transmission through the chain 20b1.
Easy access to the chain lubrication.
Self-aligning bearings with the possibility of lubrication.
Additional leakage in front of the bearings.
Additional bearing seals.
Gear ratio 1: 4.3.
Supporting the small rack in the gearbox with bearings - removing the load on the hydraulic motor.
Engine safety valve.
Hydraulic lock on the actuator.
Hardened tooth wheels.
Bottom drain opened hydraulically with an electrovalve.
Hydraulically opening front hatch.
Hydraulic shock absorbers for two engines.
||2,00 m³||2750 kg|
||2,50 m³||3000 kg|
||3,00 m³||3250 kg|
The TORNADO MAX concrete mixer is a construction equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
