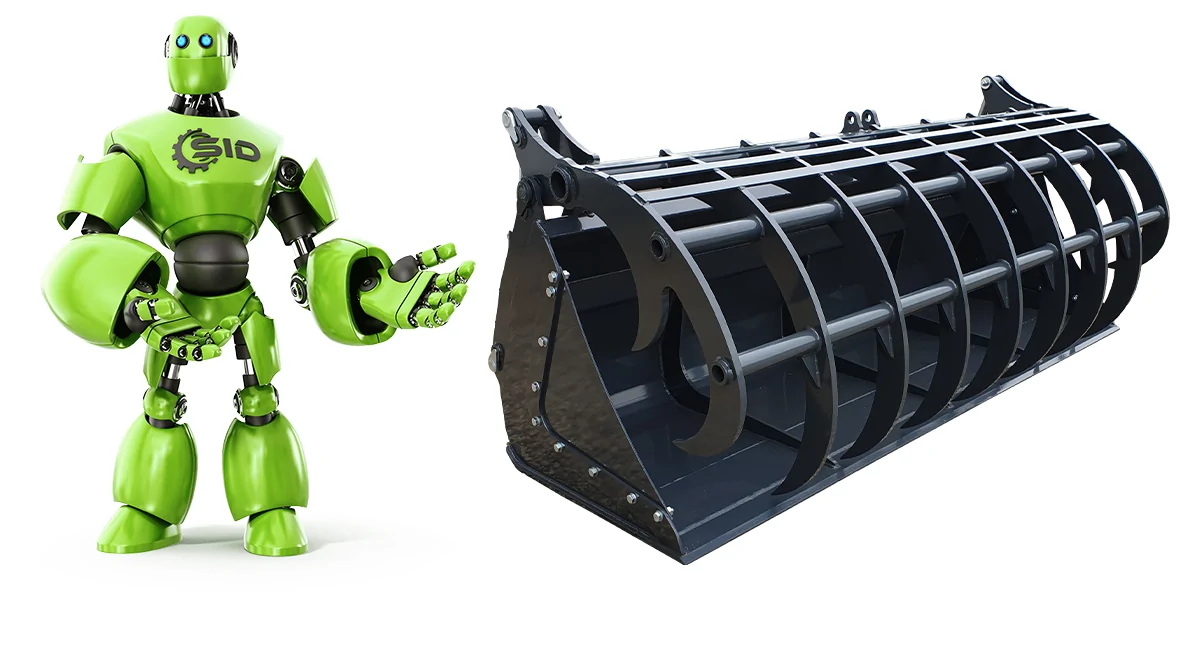

Crocodile grab bucket burned tines XXL
Crocodile grab bucket burned tines XXL – an equipment for working with silage, but it also performs its function well in other tasks related to gripping and gathering in agriculture, municipal services and small enterprises.
In order to achieve greater efficiency and speed of work, ac rocodile grab bucket burned tines XXL was created to increase the working capacity, which reaches 2.15 m3. The crocodile drawer is made of high-quality steel, which is highly resistant to damage. In addition, the blade is made of HARDOX, which makes the life of the attachment much longer. The machine is equipped with two powerful cylinders that make the jaw grip very strong and secure. A significant advantage of the bucket-crocodile is the large opening angle of the movable frame, because it is 1700 mm, thanks to which the loading of manure or corn is not a problem for him, and at the same time does not interfere with the work with loose materials.
Main product features
Plating 8 mm, sides 10 mm, reinforcements 15 mm, S355 steel, burnt teeth 20 mm, HARDOX HB500 blade 150 × 20.
Opening height 1700 mm.
Hydraulic conduits with a double steel braid DN 10 2SN.
Pins made of C45 quality steel, galvanized.
Movable places are lubricated.
The standard is euro mount, each other on request according to customer needs.
It is possible to manufacture a spoon-crocodile with dimensions according to the customer's needs.
It is possible to equip the crocodile shovel with unscrewed sides, which will help in some work.
||1,81 m³||1002 kg|
|2600 mm||2,16 m³||1092 kg|
The crocodile grab bucket burned tines XXL we offer is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents.A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
