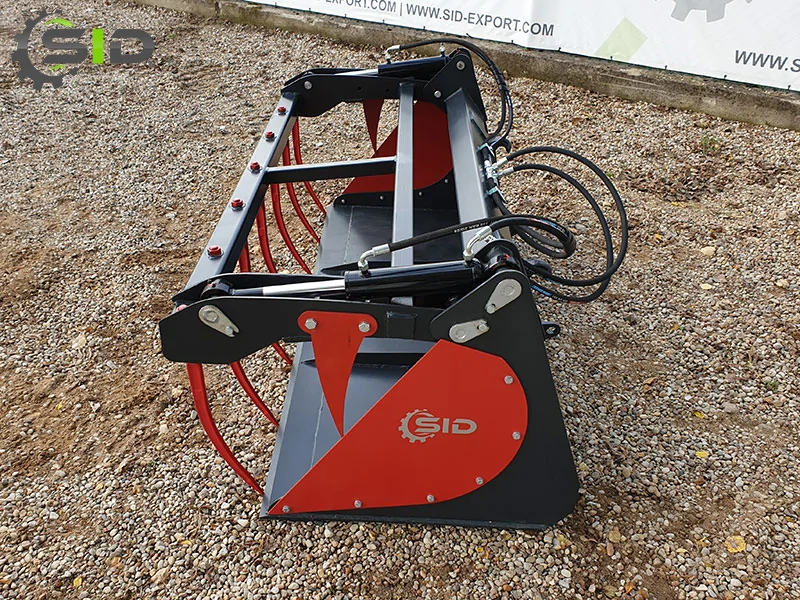

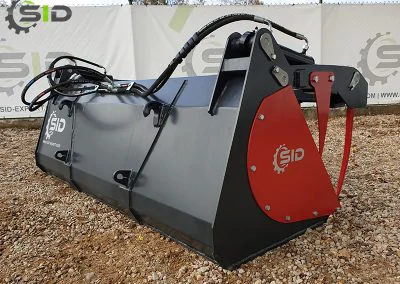

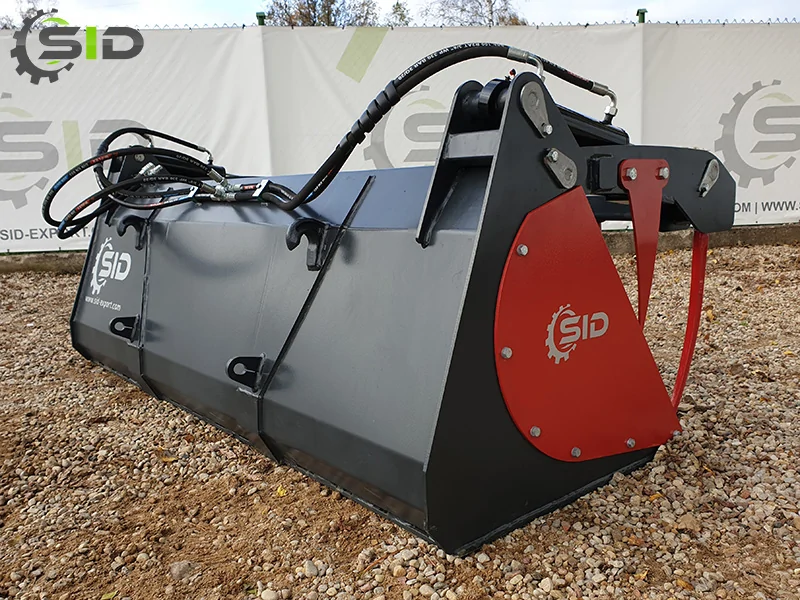

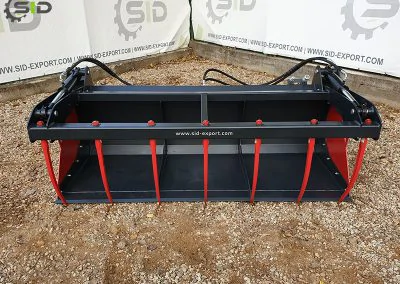

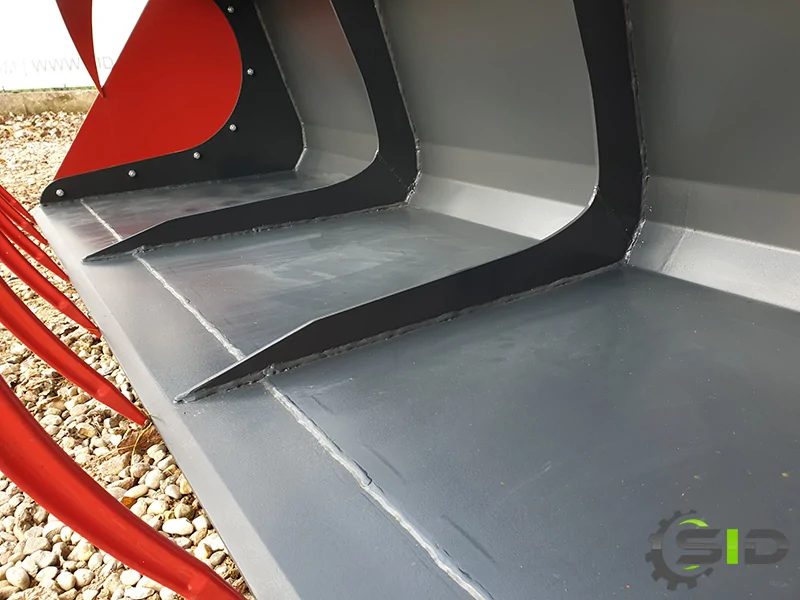

Grab bucket forged tines
Grab bucket forged tines is primarily an accessory for working with silage, but it also fulfills its role well when performing other tasks related to grabbing and collecting in agriculture, public services or smaller enterprises.
Description
The crocodile bucket is equipped with a conical bucket that makes it easy to fill and empty the machine. There is no problem with access to the material, also against the walls, because the spoon-crocodile opens very wide. The possibility of unscrewing the sides gives us easier transport of wood material, ie branches, etc. Thanks to the use of hard-wearing HARDOX steel blades and the possibility of lubricating the movable place on the sleeves, the machine is protected against quick wear.
Main product features
A solid and durable structure made of S355 high-strength steel
High-power hydraulic cylinders enable the appropriate, firm grip of the material
The full bottom of the spoon-crocodile enables the complete collection of the material and prevents it from falling out during transport
Bucket blade made of Hardox 500 wear-resistant steel
Forged replaceable teeth characterized by high strength embedded in conical sleeves and welded into the profile 80x80x5-6 mm
Hydraulic lines DN10 2SN 330 bar
The advantage of the device is the wide 90-degree opening angle of the movable frame, which allows easy loading from the prism, even directly from under the wall.
Possibility to use tightened or fixed sides
12-month warranty.
The standard is euro mount, each other on request, according to customer needs.
Zinc-plated pins made of wear-resistant C45 steel ensure reliable operation
Specification
| Width | Capacity | Weight |
| 1200 mm | 0,70 m³ | 266 kg |
| 1400 mm | 0,80 m³ | 308 kg |
| 1600 mm | 0,83 m³ |
360 kg |
| 1800 mm | 0,90 m³ | 394 kg |
| 2000 mm | 1,00 m³ | 428 kg |
| 2200 mm | 1,10 m³ | 462 kg |
| 2400 mm |
1,20 m³ | 505 kg |
Each agricultural equipment is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
