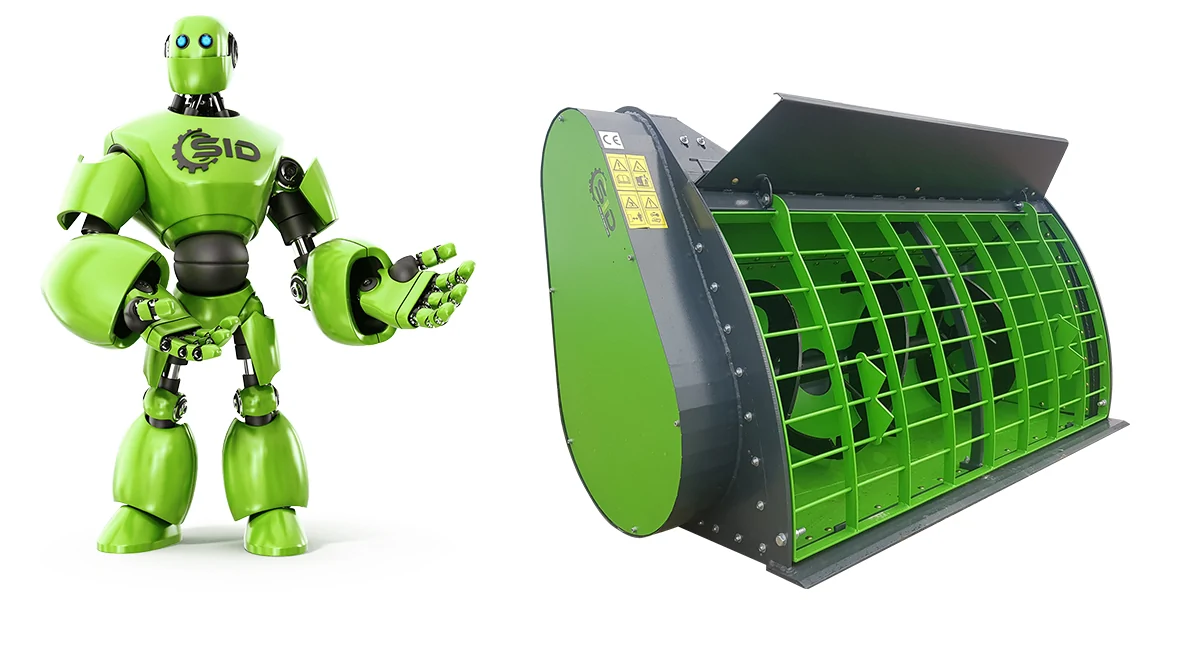

Concrete mixer TORNADO
The TORNADO concrete mixer is professional equipment that finds applications on construction sites, during paving and renovation of sidewalks, water channels, sewage channels, and is also ideal for mixing fodder.
Description
This is an improved version of the standard mixer. It is particularly recommended on construction sites with limited or no electricity. Before immediate use, the required amount can be mixed and transported to the desired location. The TORNADO concrete mixer is hydraulically driven by the installation on the machine’s arm.
Main product features
TORNADO bucket concrete mixer allows you to minimize the cost of concrete production practically down to the cost of raw materials: aggregate, water and cement.
The TORNADO concrete mixer is equipped with a safety hatch with teeth for ripping the bags.
The grate protects the mixer against stones and other impurities that may damage or block the impeller.
The lower part with a blade has been moved forward in the mixer for easier scooping of gravel straight from the heap.
It can be mounted on mini loaders, loaders, backhoe loaders, telescopic loaders and agricultural tractors.
Dry blending possible.
The Tornado concrete mixer is made of S355 steel with a thickness of 6mm with replaceable 3mm thick inserts, screwed to the mixer structure in places exposed to abrasion.
Stirrer with a diameter of 700 mm, thickness 12 mm, interchangeable, screwed.
A new solution for connecting the blades - much stronger.
It is possible to produce a mixer with dimensions according to customer needs.
12-month warranty.
Pipe fi 90mm, replaceable screwed.
Driven by the 800 cm3 OMT orbital hydraulic motor.
Power transmission through the chain 20b1.
Easy access to chain lubrication.
Self-aligning bearings with the possibility of lubrication.
Additional leakage of leaks ahead of the bearings.
Additional bearing seals.
Gear ratio 1: 4.3.
Supporting the small rack in the gearbox with bearings - removing the load on the hydraulic motor.
Engine safety valve.
Hydraulic lock on the actuator.
Hardened tooth wheels.
Screw fastening.
Bottom drain opened hydraulically with an electrovalve.
Additional option
Hydraulically opening front hatch.
Hydraulic shock absorbers for two engines.
Hardox liner.
Hardox auger.
Specification
| Width | Capacity | Weight |
| 1500 mm |
0,60 m³ | 795 kg |
| 1750 mm |
0,80 m³ | 858 kg |
| 2000 mm |
1,00 m³ | 922 kg |
| 2200 mm |
1,20 m³ | 1020 kg |
The TORNADO concrete mixer we offer is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. It is used in protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
Product Gallery
Video presentation
The SID company presents the TORNADO concrete mixer, which performs well in places with limited or no access to electricity. Before direct use, the required amount of material can be mixed and transported to any place.
Stirrer with a diameter of 700 mm, thickness 12 mm, interchangeable, screwed
Easy access to the chain lubrication
It is made of S355 steel with a thickness of 6mm
