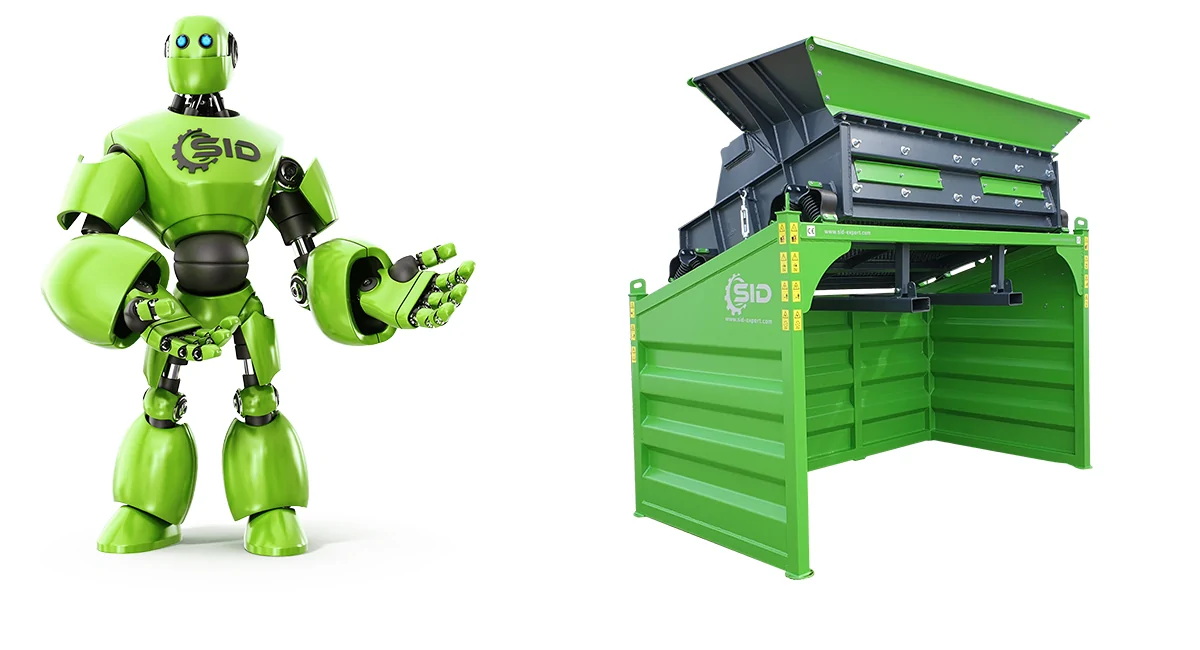

Vibrating Screen
2-fractional vibrating sive machine, which can be separated into 3 fractions. It is extremely comfortable to transport. The small dimensions and lightness of the machine allows you to easily move the screen.
Description
The sifter has two layers of screens, of which the upper screen has dimensions of 45x45mm, while the lower one is a smaller screen of 15x15mm. The design of the equipment allows for quick replacement of screens and disassembly of covers. In order for the machine to be transported safely, it was equipped with turnbuckles.
A powerful electric motor with a power of 1.5 kW combined with a sieve area of 2.7 m2, the machine has a high capacity.
Performance:
- stone 40t / h – 22m³ / h
- gravel 45t / h – 30m³ / h
Dimensions of the charging hopper:
2570mm x 920mm, h1: 650mm, h2: 480mm
Main product features
2 sieve decks - 1.00x1.40m
Top 50x50 sieve, bottom 16x16 sieve.
At the customer's request, it is possible to produce the machine with the desired size of sieve.
2.73m² screening surface.
The sieves have a longitudinal tension.
12-month warranty.
Fast sieve replacement.
Powered by a 400V 1.5kW electric motor.
Power supply from mains or aggregate.
Handles for transportation.
Turnbuckles for securing during transporting.
Removable covers.
Additional option
Belt conveyors.
Chutes for separating fractions or transporting the output to further places
Specification
| Model | Width | Depth | Height | Weight |
| 2 Fractions Setup |
2850 mm |
1500 mm |
2520 mm |
1612 kg |
| 3 Fractions Setup |
2850 mm |
2500 mm |
2520 mm |
1699 kg |
Vibrating screen is a construction equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
