Vibrating Screen

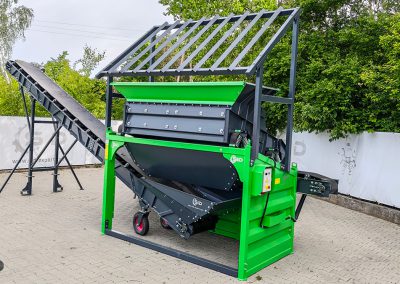

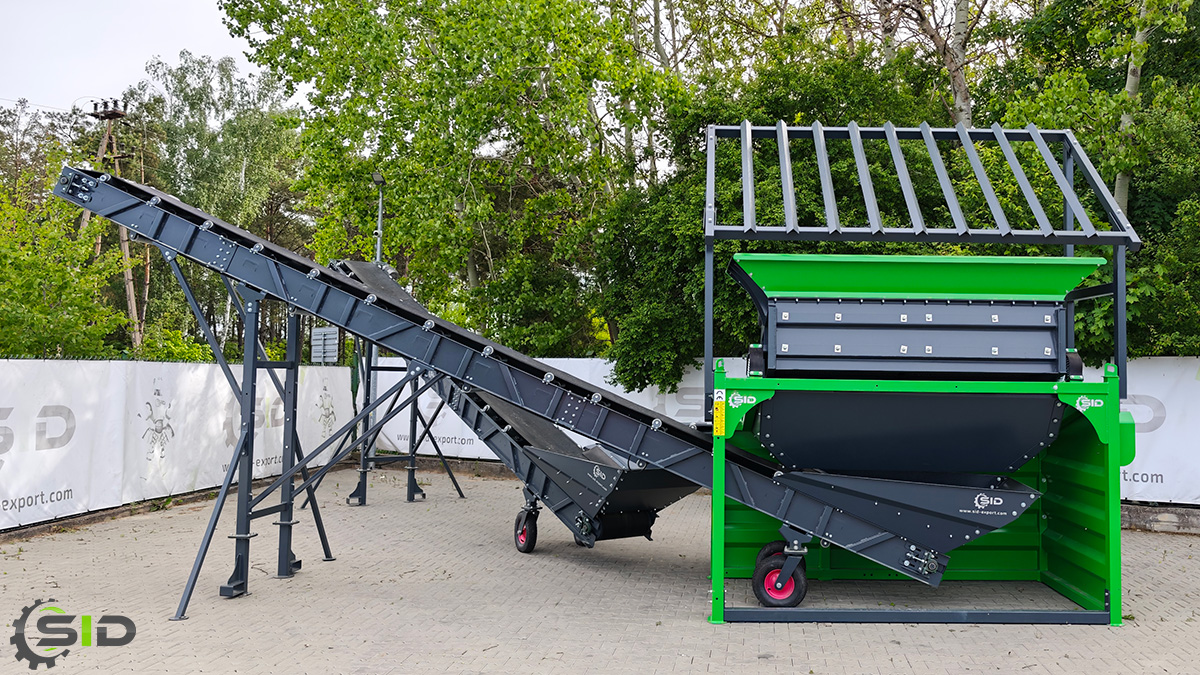

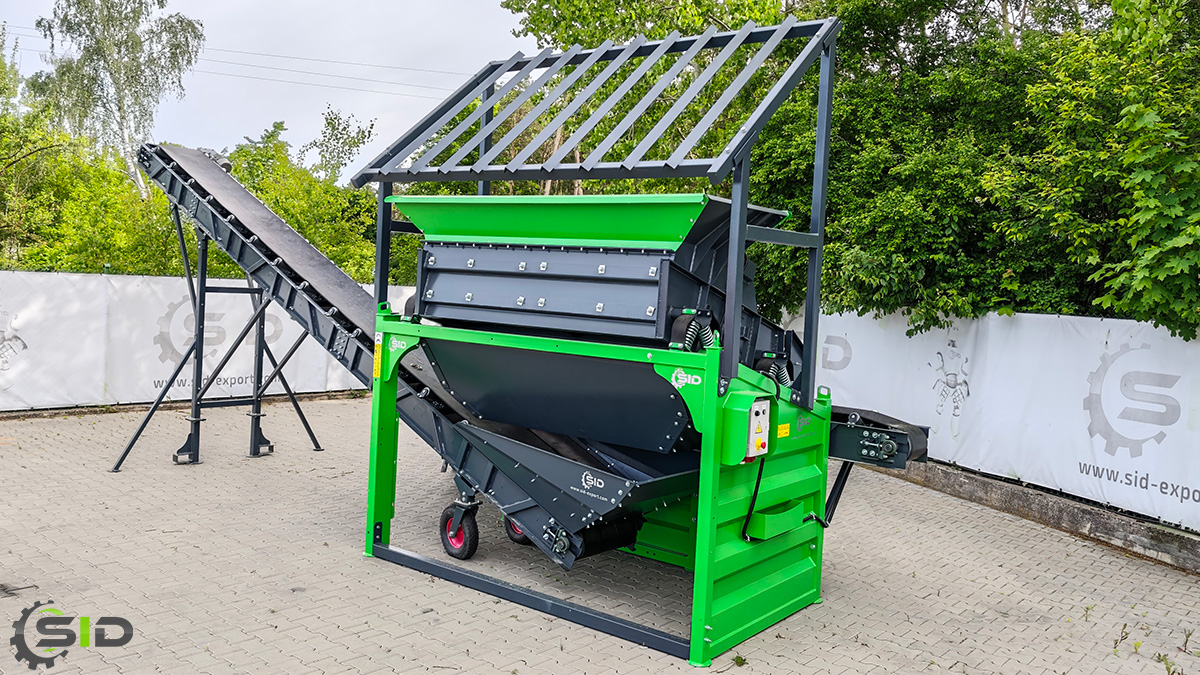

A vibrating screen 2-fractions setup, which has the capability to be separated into three fractions, is a device intended for sorting and cleaning bulk materials such as sand, gravel, or soil by separating them into fractions of different sizes. Through vibrations and specially designed screens, the screener effectively separates larger particles from finer ones, allowing for precise classification of the material. Vibrating screeners are utilized in construction, agriculture, and municipal industries where precise sorting of raw materials is required. Its construction ensures not only high efficiency but also ease of operation and transport.
Description
The vibrating screen has two decks of screens, with the upper one measuring 45x45mm and the lower one finer at 15x15mm. The equipment’s design allows for quick screen replacement and guard removal. The design enables rapid screen replacement and customization to meet individual customer needs. The screening area measures 2.73m², ensuring high work efficiency, while the 400V electric motor with a power of 1.5kW guarantees device reliability and power. To ensure safe transportation, the machine is equipped with Roman screws.
Performance:
- Stone 40t/h – 22m³/h
- Gravel 45t/h – 30m³/h
Dimensions of the feeding hopper: 2570mm x 920mm, h1: 650mm, h2: 480mm
The Vibrating screen features:
Quality: Made of high-quality S355 steel, ensuring structural strength.
Performance: The screening area is 2.73m².
Safety:We provide a 12-month warranty, confirming the reliability and durability of our product.
Full range of equipment for your business! Don’t forget to check out other products from our offer. Many construction machines and accessories such as 4-in-1 XL bucket, ISO2 pallet forks, or XXL screening bucket.
Discover our full range of construction machinery! Don’t wait and explore other innovative solutions we have prepared for you. With them, your business will operate even more efficiently. Visit our website and explore the full range of products!
Main product features
2 sieve decks - 1.00x1.40m
Top 50x50 sieve, bottom 16x16 sieve.
2.73m² screening surface.
The sieves have a longitudinal tension.
12-month warranty.
Fast sieve replacement.

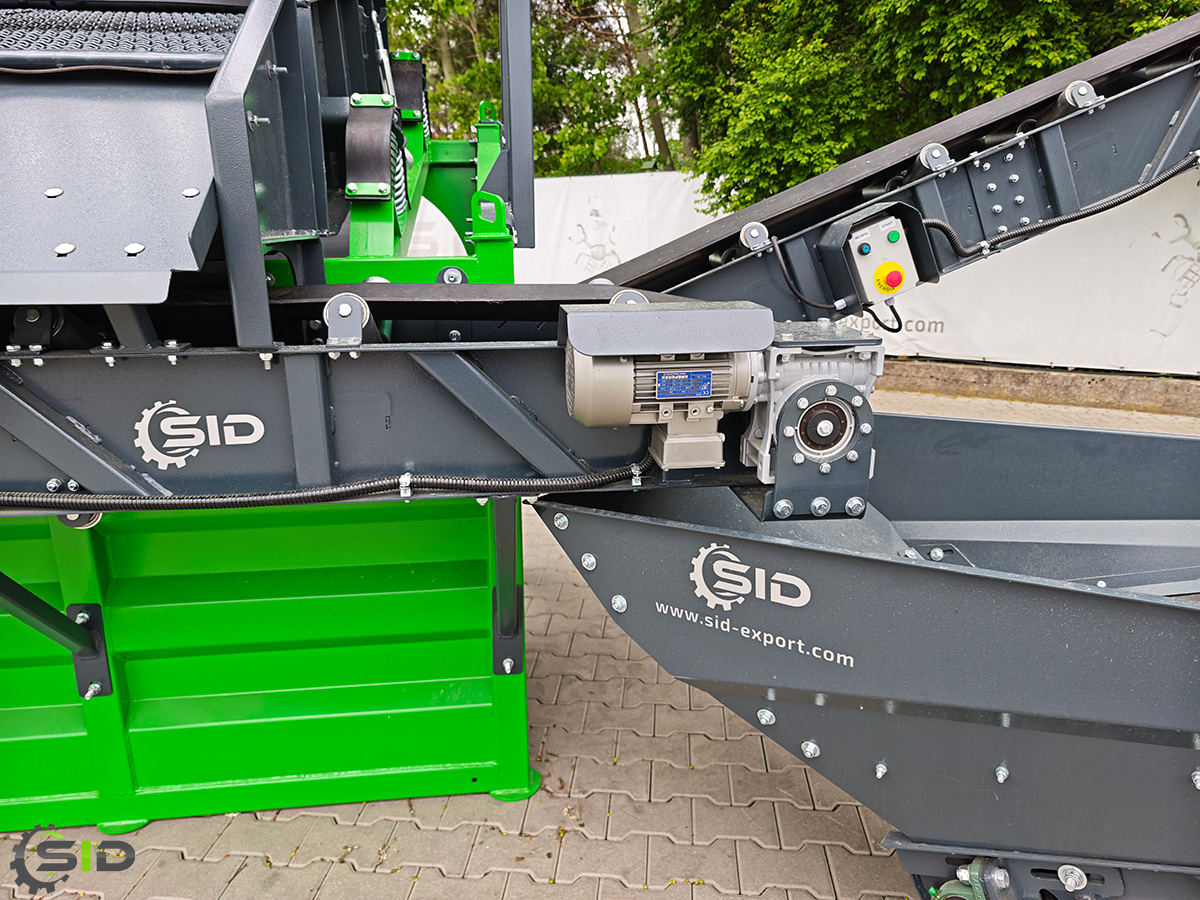

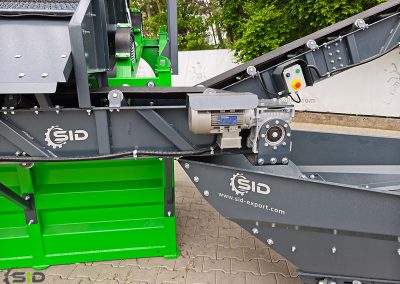

Powered by a 400V 1.5kW electric motor.
Power supply from mains or aggregate.
Handles for transportation.
Turnbuckles for securing during transporting.
Removable covers.
Additional option

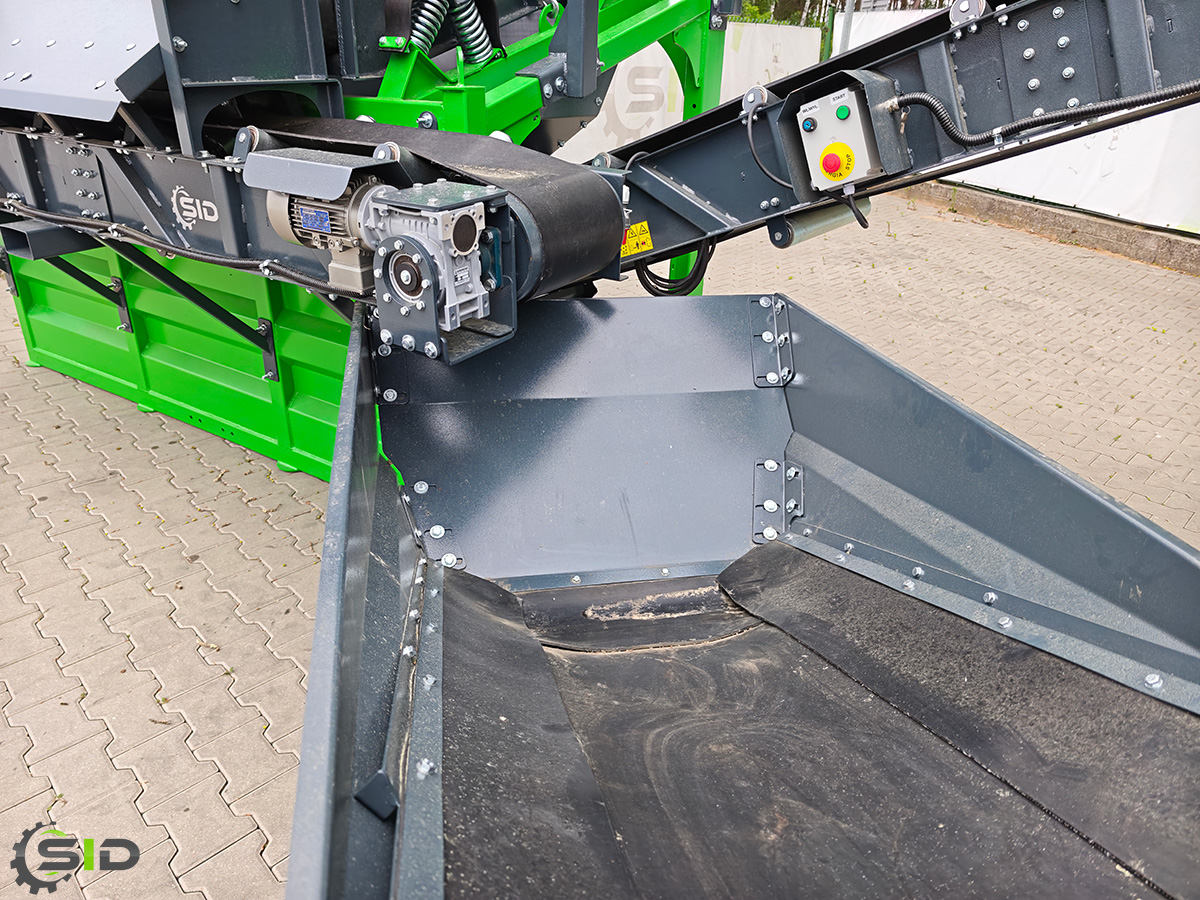

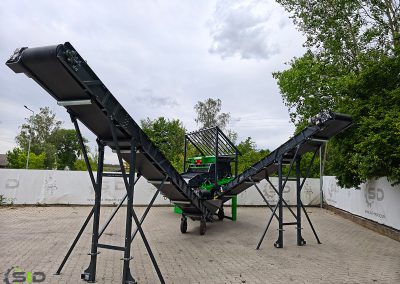

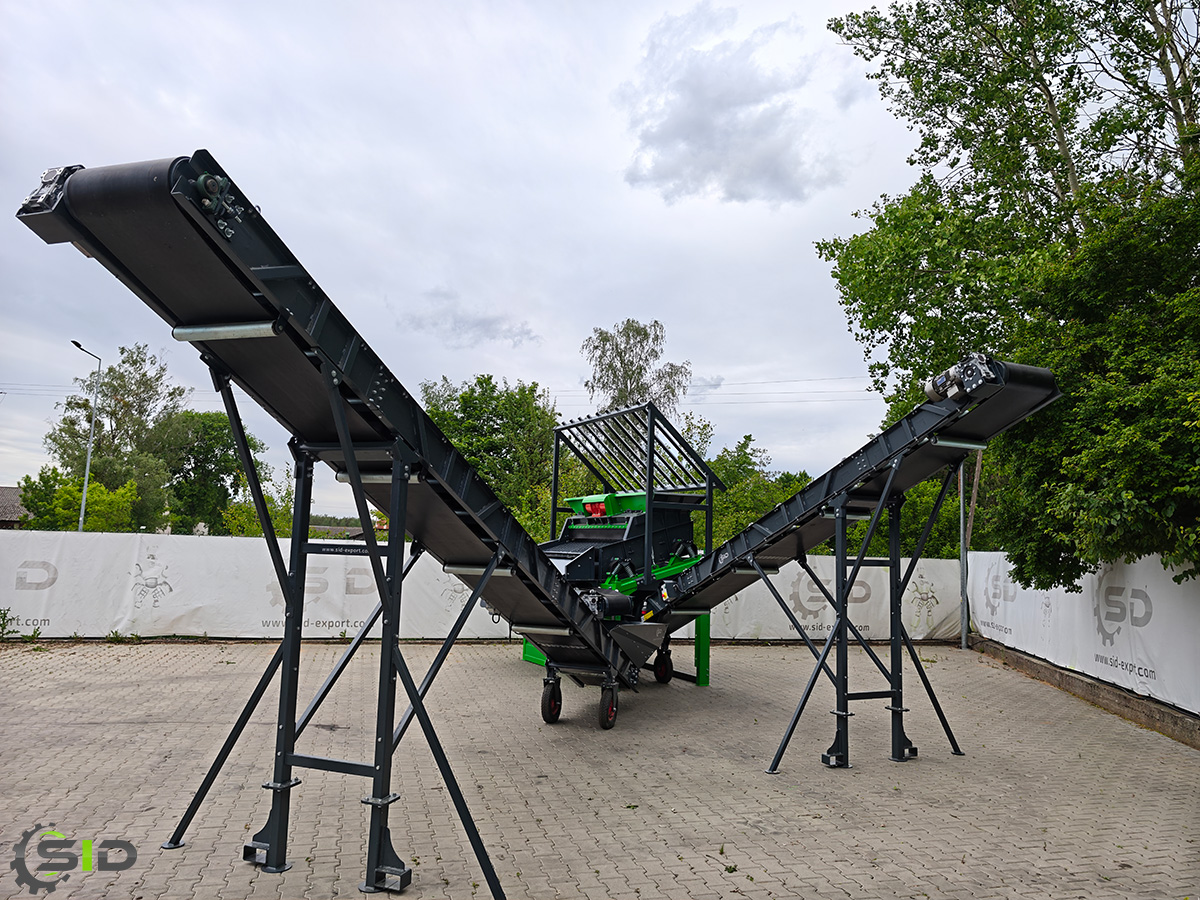

Belt conveyors.
Upon customer request, it is possible to manufacture the machine with the desired size of openings in the screens.
Chutes for separating fractions or transporting the output to further places
SID Vibrating screen – specification
SID Vibrating screen
Specification
| Model | Width | Depth | Height | Weight |
| 2 Fractions Setup |
2850 mm |
1560 mm |
2520 mm |
1612 kg |
| 3 Fractions Setup |
2850 mm |
2560 mm |
2520 mm |
1699 kg |
Vibrating screen is a construction equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID company may introduce changes to the technical specifications without prior notice. Information and graphics on our website are provided for informational purposes only. Certain equipment elements may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID company representative.

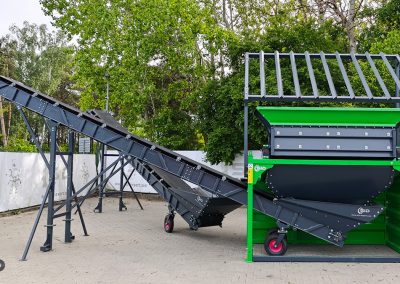

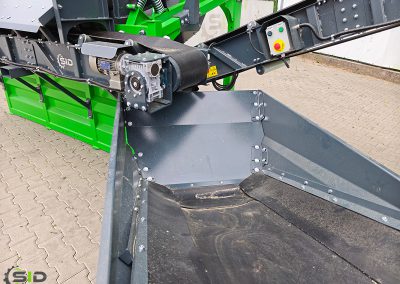

Product Gallery
