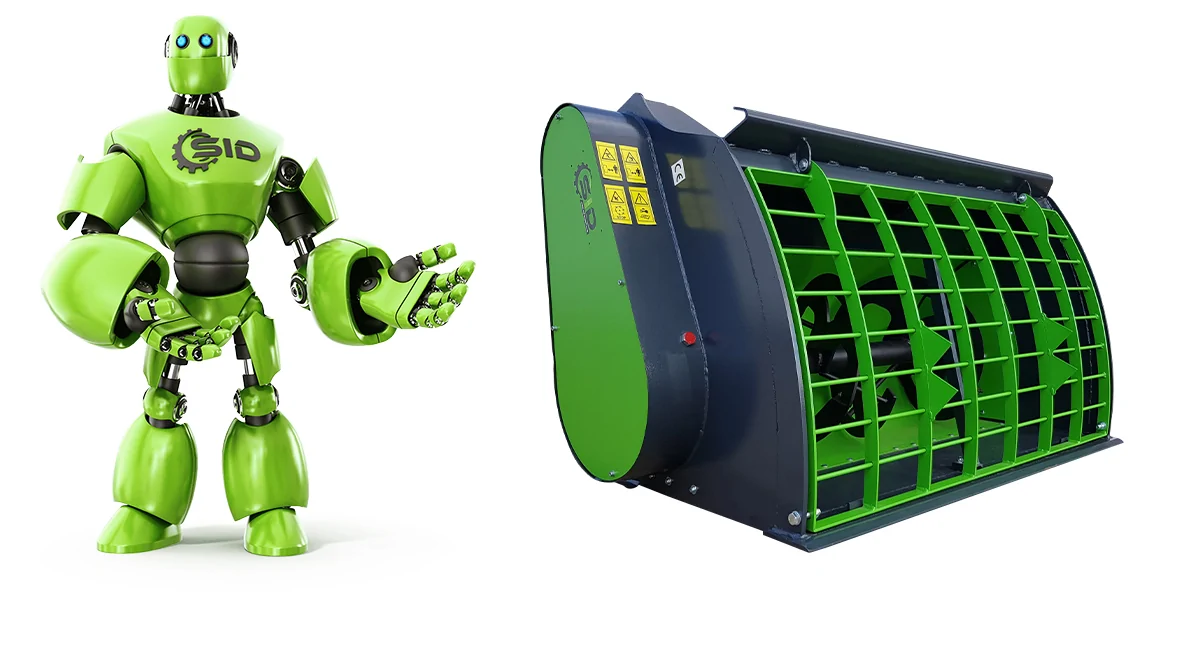

Concrete mixer ARKAN
The Concrete mixer ARKAN is a key device on every professional construction site, serving to efficiently prepare high-quality concrete. This indispensable piece of construction equipment enables precise mixing of concrete components such as cement, water, sand, and gravel, creating a uniform and durable mass. Thanks to its performance and reliability, the concrete mixer is the foundation of effective work on any construction site, where the precision and quality of the concrete mix are essential for achieving expected structural results.
Description
The concrete mixer Arkan is ideal for construction sites with limited or no access to electricity. Before direct use, it allows for mixing the required amount of material and transporting it to any location. The concrete mixing bucket is hydraulically driven from the setup on the machine’s arm.
The opening flap with teeth for tearing bags enables quick and safe addition of dry ingredients without the need for manual opening. The forward-extended lower part with a blade facilitates scooping gravel directly from the pile, significantly speeding up the mix preparation process. The bucket mixer allows for minimizing the costs of concrete production, reducing them almost exclusively to the price of raw materials such as aggregate, water, and cement.
The concrete mixer Arkan features:
- Constructed from high-grade S355 steel: ensures exceptional durability and resistance to mechanical damage and corrosion.
- 12-month warranty: provides safety and peace of mind for extended use.
- Screw-on attachment: allows for easy adaptation to your construction machinery.
Explore the full range of equipment for your enterprise! Don’t forget to check out other products in our offering. We offer various construction devices and accessories such as the concrete mixer TORNADO , pan concrete mixer, or bucket HD XL.
Discover our entire range of construction machinery! Don’t wait and explore other innovative solutions we have prepared for you. With these, your business will operate even more efficiently. We invite you to visit our website and familiarize yourself with our full range of products!
Main product features
Bucket concrete mixer allows to minimize the cost of concrete production practically to the cost of raw materials: aggregate, water and cement.
The concrete mixer is equipped with a safety hatch with teeth for ripping the bags.
The grate protects the mixer against stones and other impurities that may damage or block the impeller.
The lower part with a blade has been moved forward in the mixer for easier scooping of gravel straight from the heap.
It can be mounted on mini loaders, loaders, backhoe loaders, telescopic loaders and agricultural tractors.
Hydraulic lock on the actuator.
Engine safety valve.
12-month warranty.
Dry blending possible.
The concrete mixer is made of 6mm S355 steel with replaceable 3mm thick inserts, screwed to the mixer structure in places most exposed to abrasion.
Stirrer with a diameter of 600 mm.
10mm, interchangeable, screw-on stirrer.
Driven by the OMT orbital hydraulic motor.
Drive transmission via the chain 20b1.
Additional bearing seals.
Hardened tooth wheels.
Screw fastening.
Bottom drain opened hydraulically with an electrovalve.
Additional option
Downpipe.
Hardox liner.
Hardox snail.
Hydraulically opening front hatch.
Whole made from Hardox.
SID Concrete mixer Arkan – specification
SID Concrete mixer Arkan
Specification
| Width | Capacity SAE |
Weight |
| 800 mm |
0,15 m³ |
410 kg |
| 1000 mm |
0,20 m³ |
449 kg |
| 1300 mm |
0,30 m³ |
489 kg |
| 1600 mm |
0,40 m³ |
550 kg |
| 1500 mm |
0,60 m³ |
612 kg |
| 1750 mm |
0,80 m³ |
680 kg |
| 2000 mm | 1,00 m³ |
771 kg |
The ARKAN concrete mixer is a construction equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID company may introduce changes to the technical specifications without prior notice. Information and graphics on our website are provided for informational purposes only. Certain equipment elements may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID company representative.
Product Gallery
Video presentation
The SID company presents the Arkan Concrete Mixer, which fulfills its function perfectly in places with limited or no access to electricity. Before direct use, the required amount of material can be mixed and transported to any place.
Stirrer with a diameter of 600 mm
It is made of S355 steel with a thickness of 6mm.
10mm, interchangeable, screw-on stirrer.
