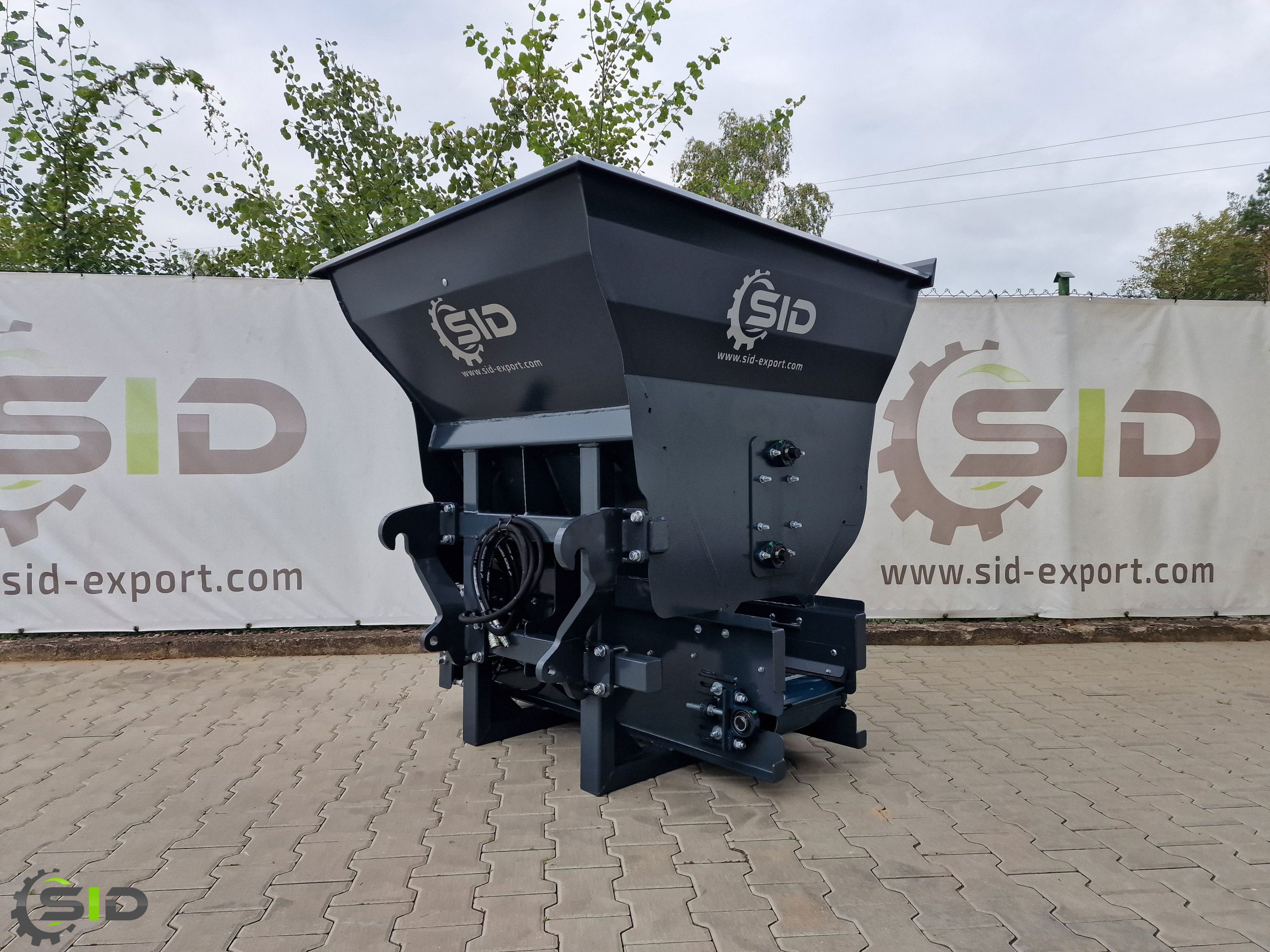

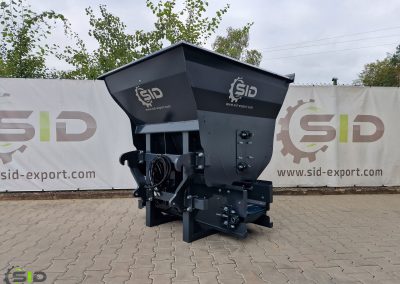

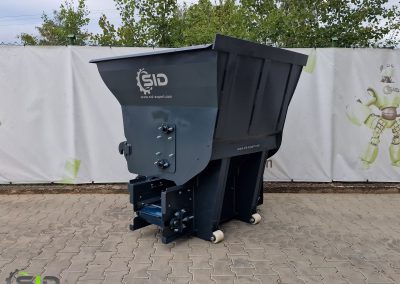

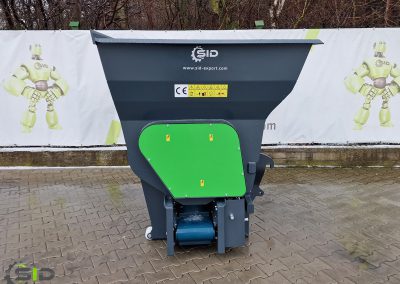

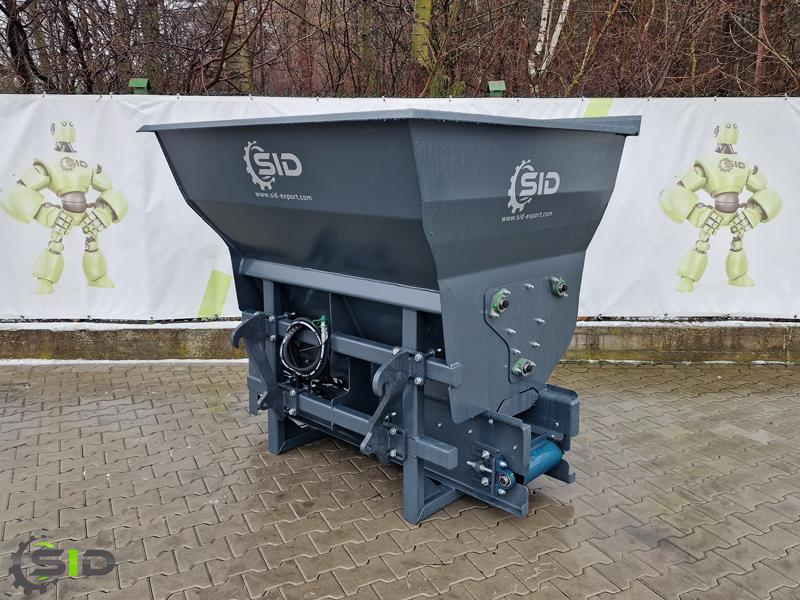

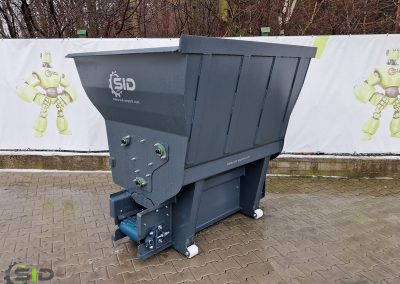

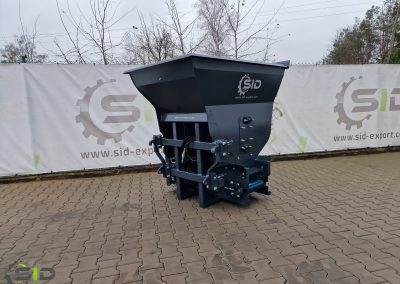

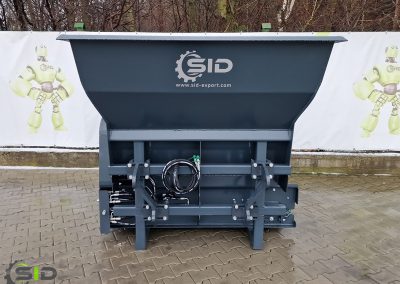

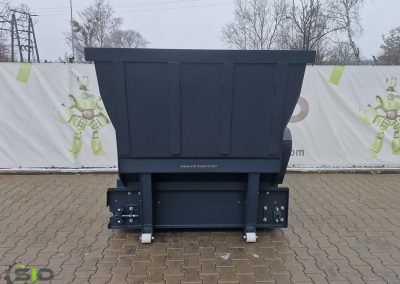

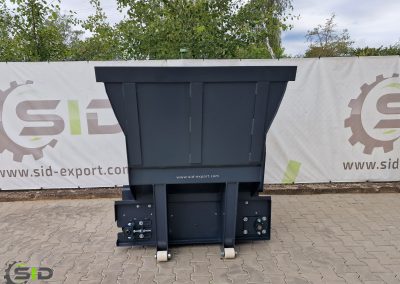

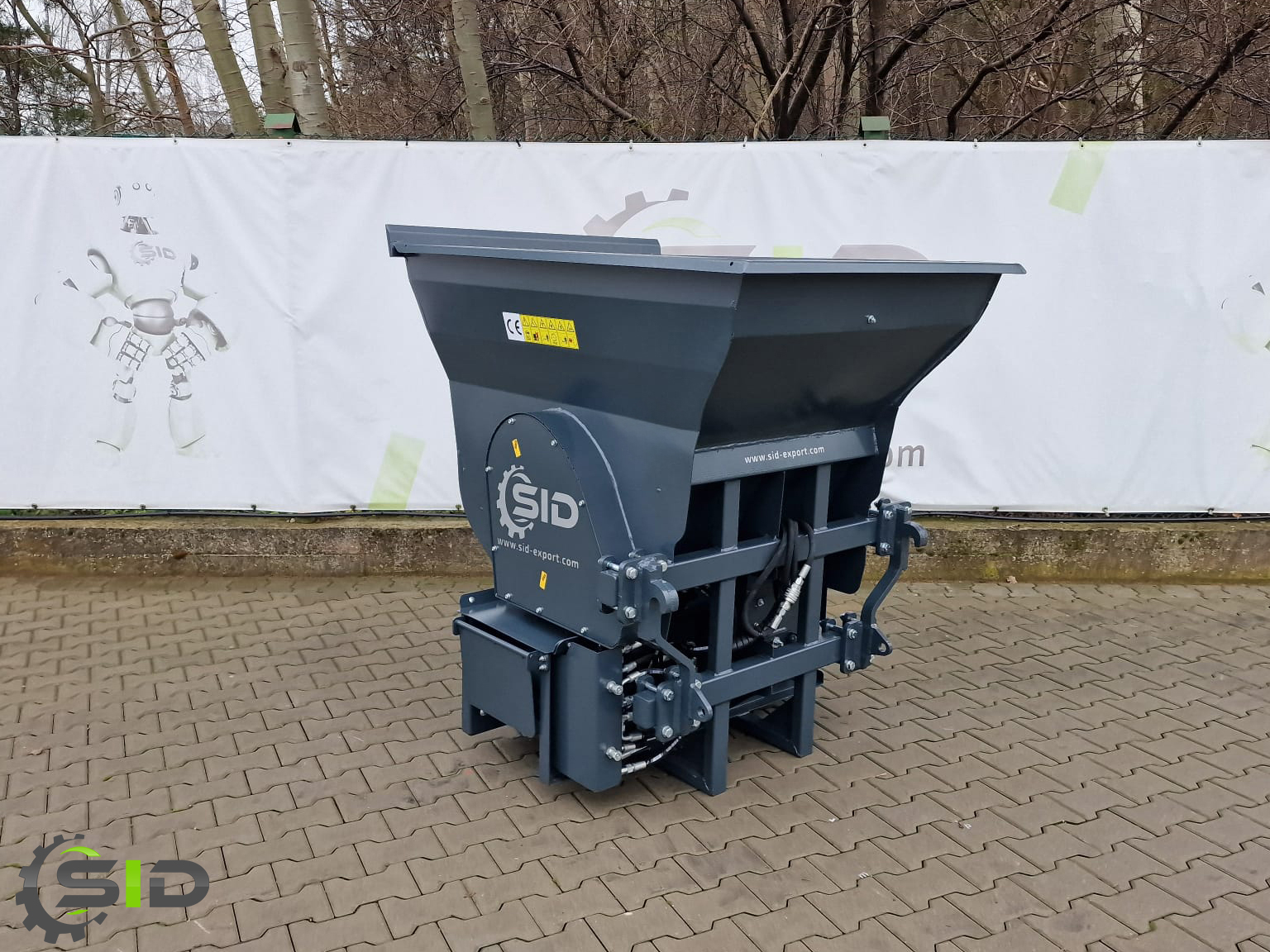

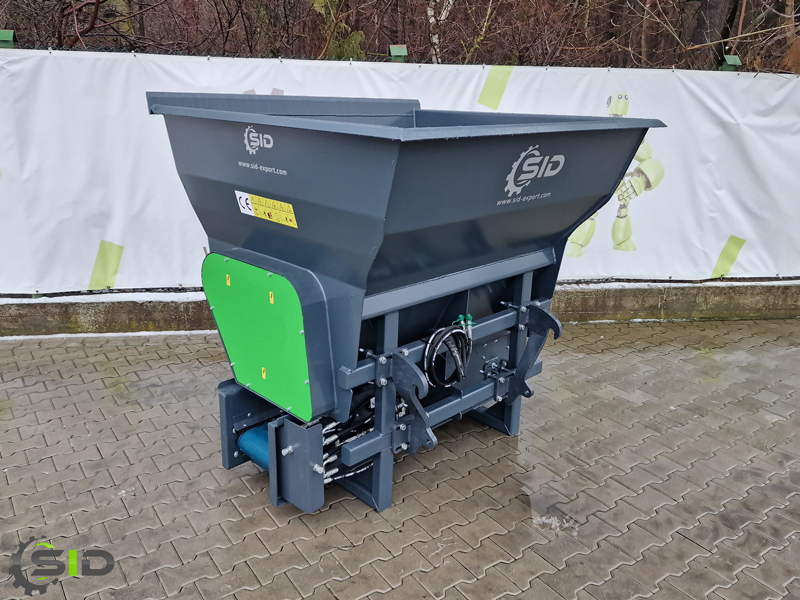

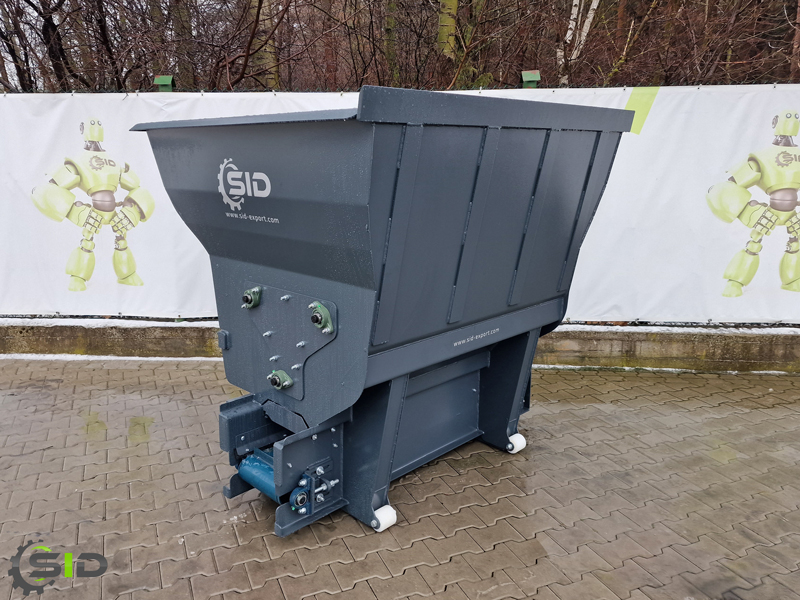

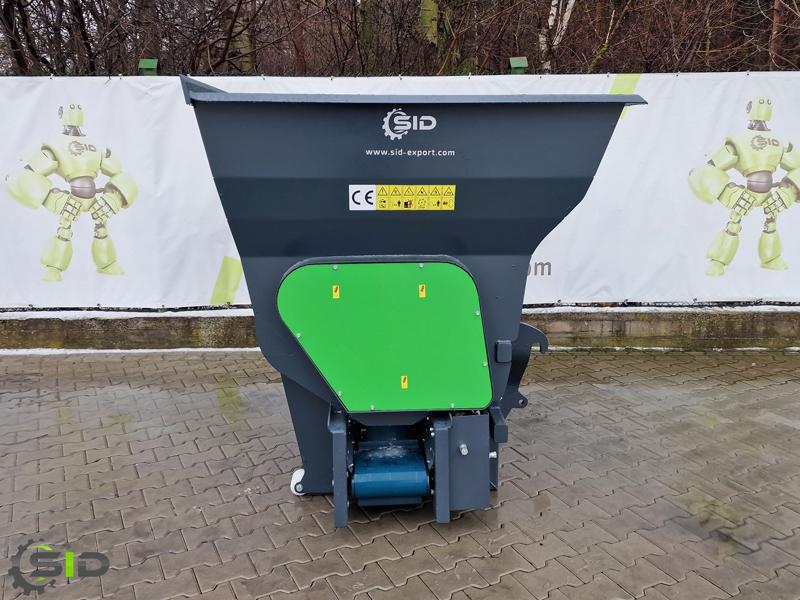

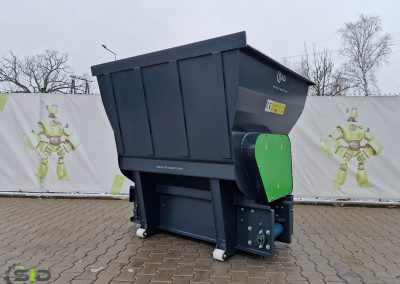

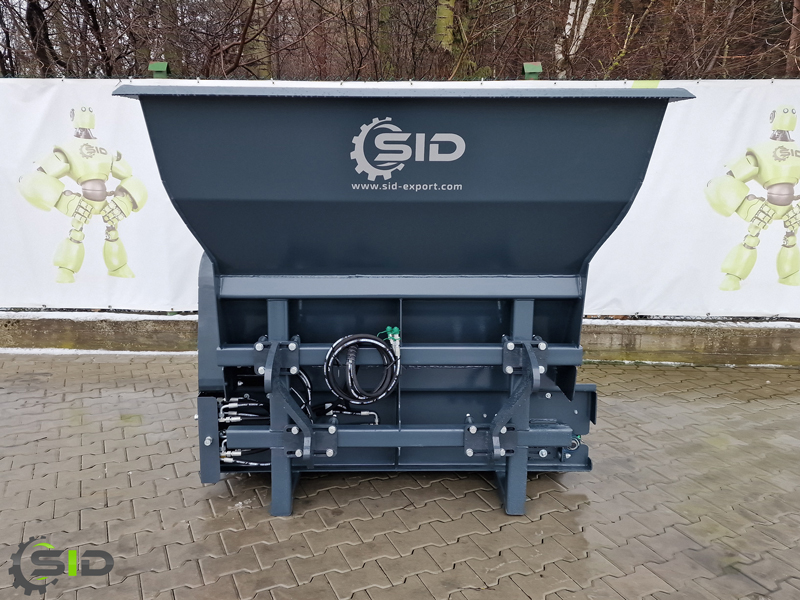

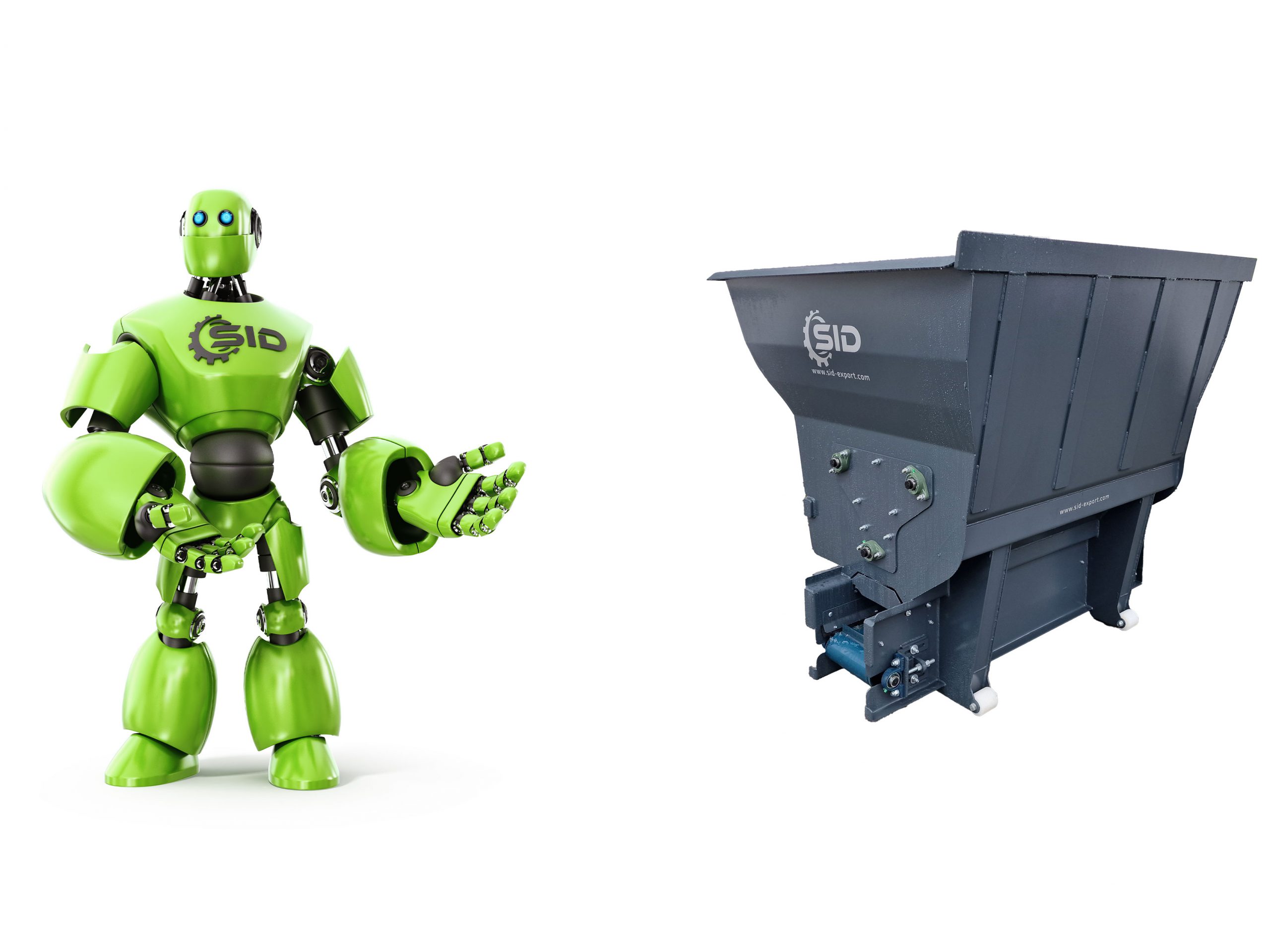

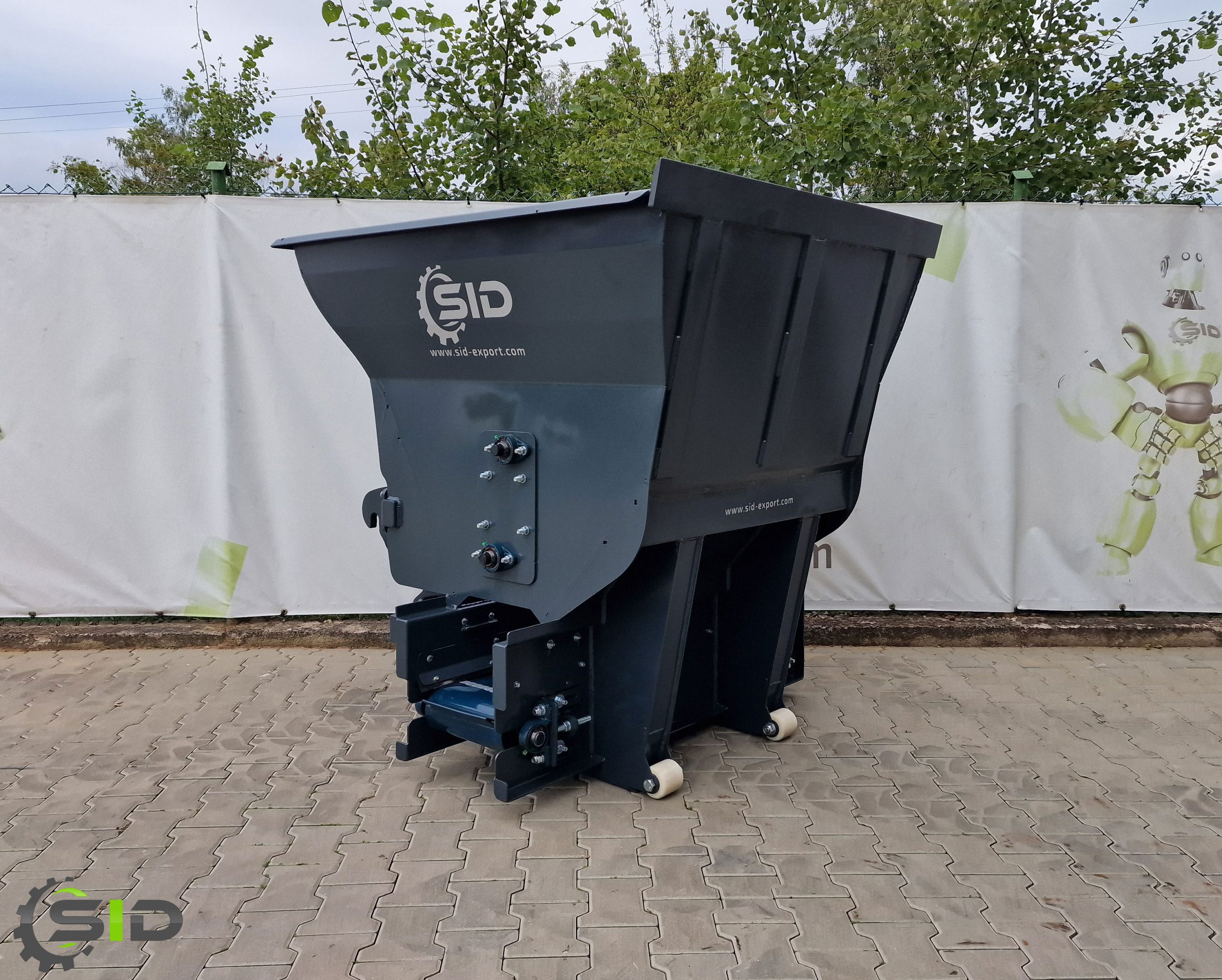

Dosing bucket with conveyor belt
The dosing bucket with conveyor belt is a tool that will find its application mainly in cattle and poultry breeding, as well as in horticulture. This specialized shovel has been designed to facilitate the precise dosing of various types of feeds, nutritional supplements, and also seeds or fertilizers.
Description
The dosing bucket with conveyor belt is equipped with two rollers inside the container that very effectively dose the material onto the discharge belt. The well-designed structure in terms of durability and weight of the device ensures long-term use. Chopped straw, sawdust, or other lightweight materials can be used for bedding in cattle and poultry stalls. The dosing shovel with a belt also manages the feeding of loose feed, as well as corn silage.
The belt spreader can also be used in horticulture for topping up with sawdust, wood chips, and for spreading compost. The container has a specially designed shape so that the material picked up and dosed does not get stuck.
The dosing bucket with conveyor belt features:
- Reliability you can depend on: durable construction using S355 high-strength steel.
- Security for your investment: we offer a 12-month warranty on our product.
A full range of equipment for your farm! Don’t forget to check out other products in our offer. We offer many agricultural devices and accessories such as the dosing bucket with endless screw, manure fork with grapple or square bale frame.
Discover our entire range of agricultural machinery! Don’t wait and explore other innovative solutions we have prepared for you. With them, your farm will operate even more efficiently. We invite you to visit our website and familiarize yourself with the full range of products!
Main product features
Fast and precise mixing and discharging.
Robust and durable construction made of high strength steel S355.
The whole is hydraulically driven from one section, the demand min. 45L / min.
The screw-on attachment ensures quick replacement without cutting or welding.
Screw fastening - typ WD.
It is possible to produce a belt spreader with dimensions according to customer needs.
Blade HB 400, 110×12 mm, made of hardox wear steel, advanced forward for better and more complete filling.
The possibility of adjusting the speed of the dosing belt, which allows us to feed not only loose feed, but also maize silage.

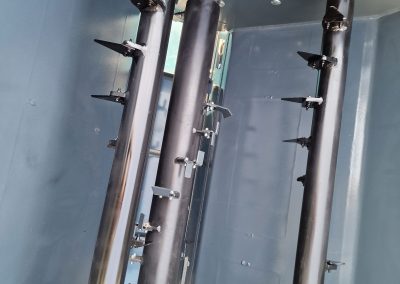

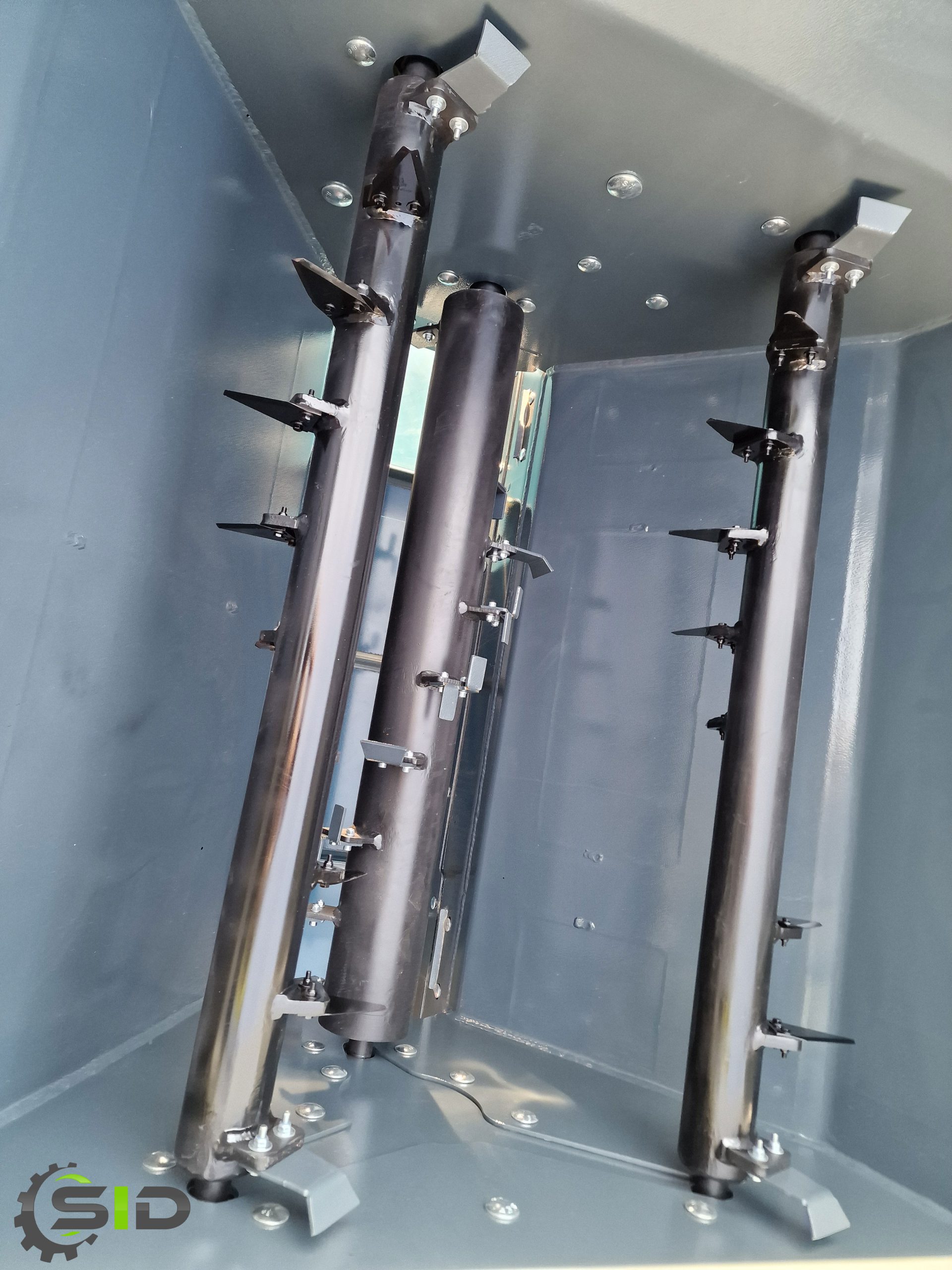

Inside, there are two 250 mm rolls with spikes for mixing and dosing the material.

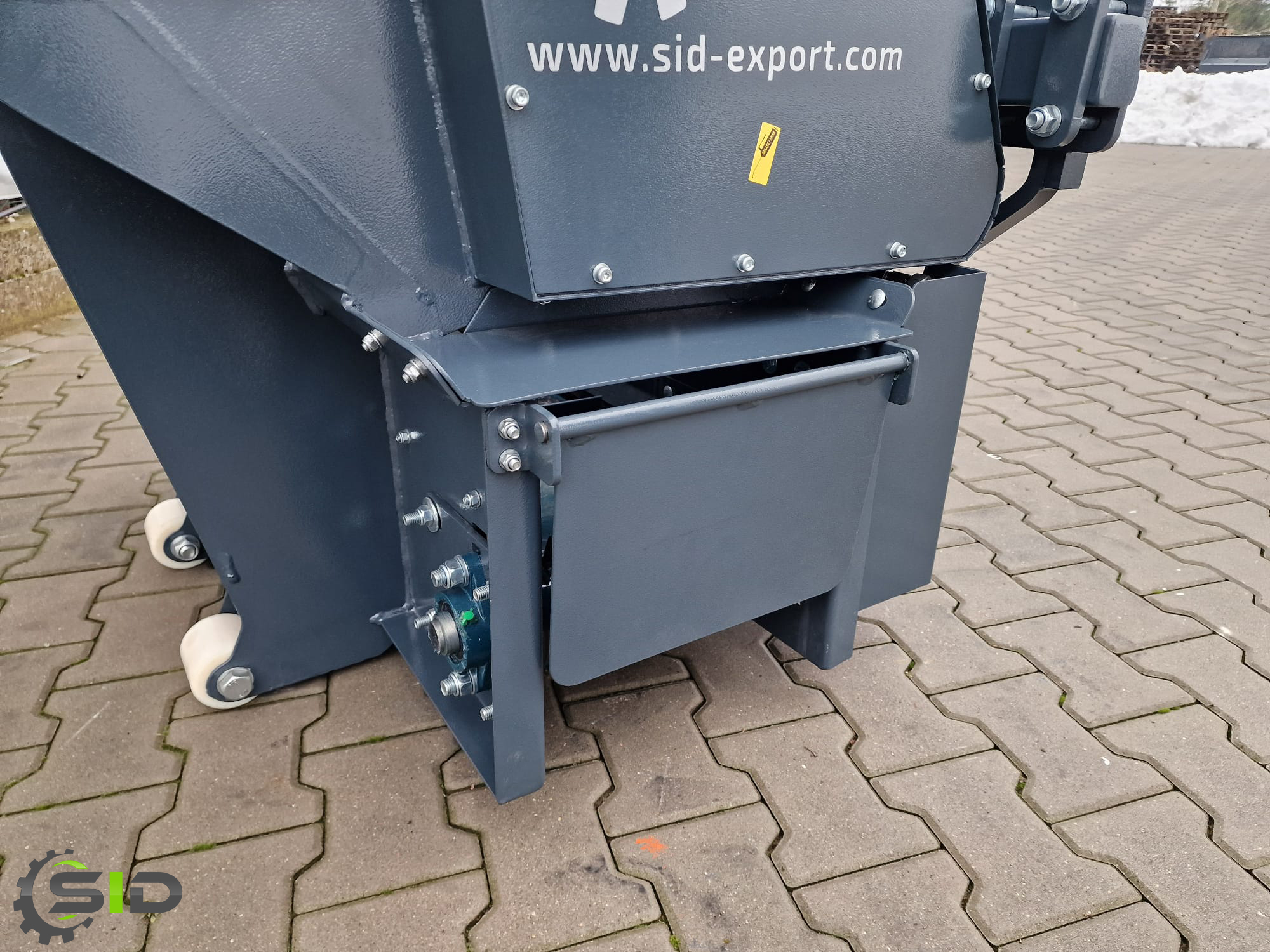

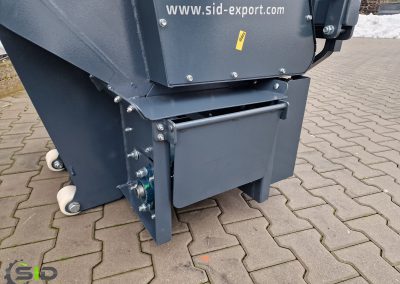

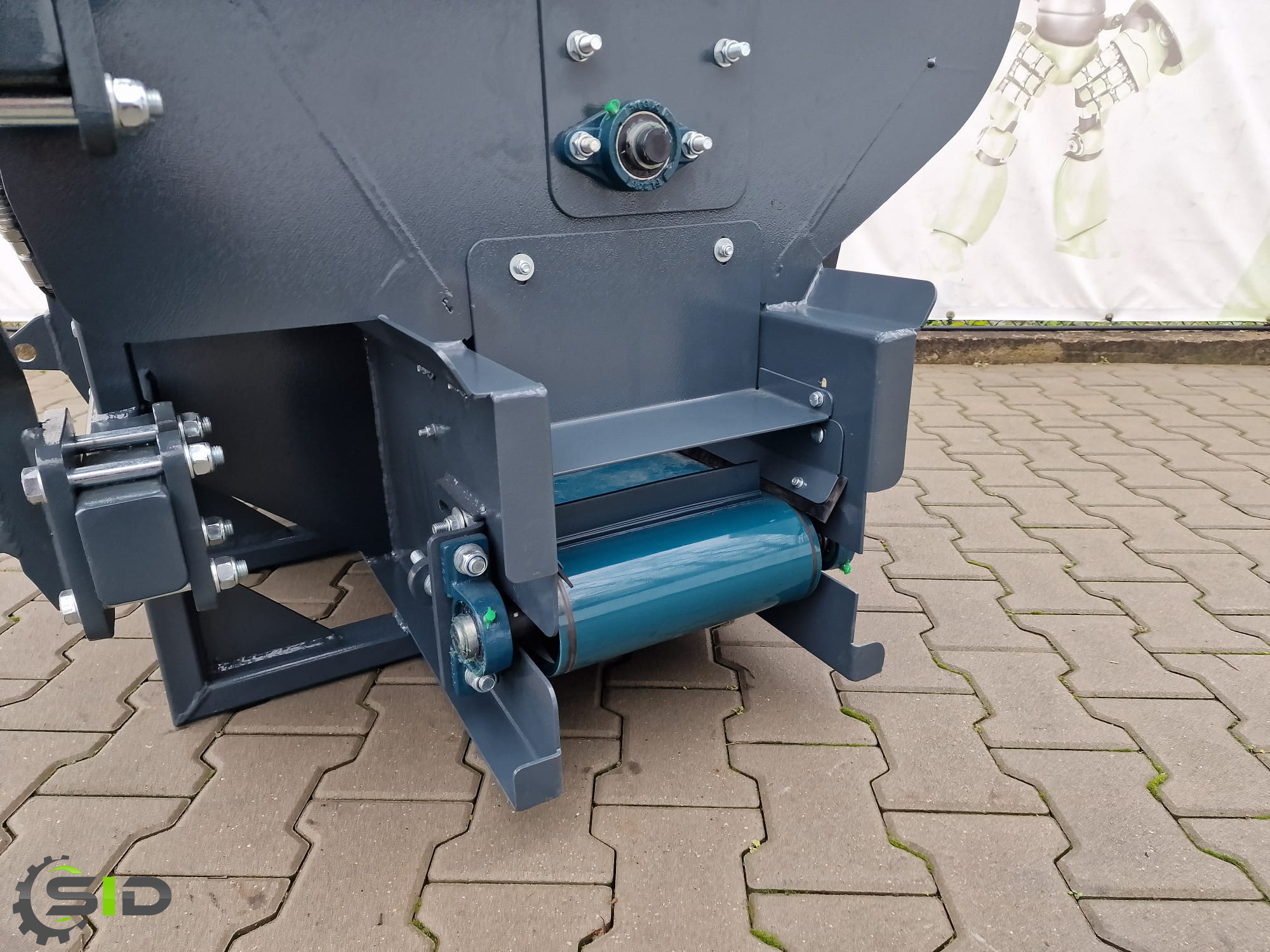

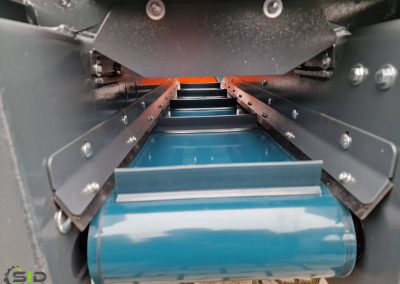

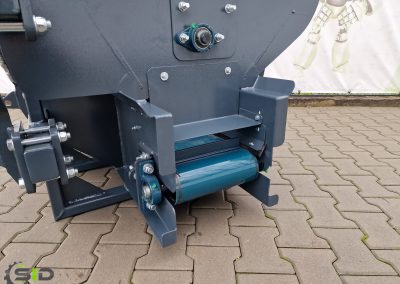

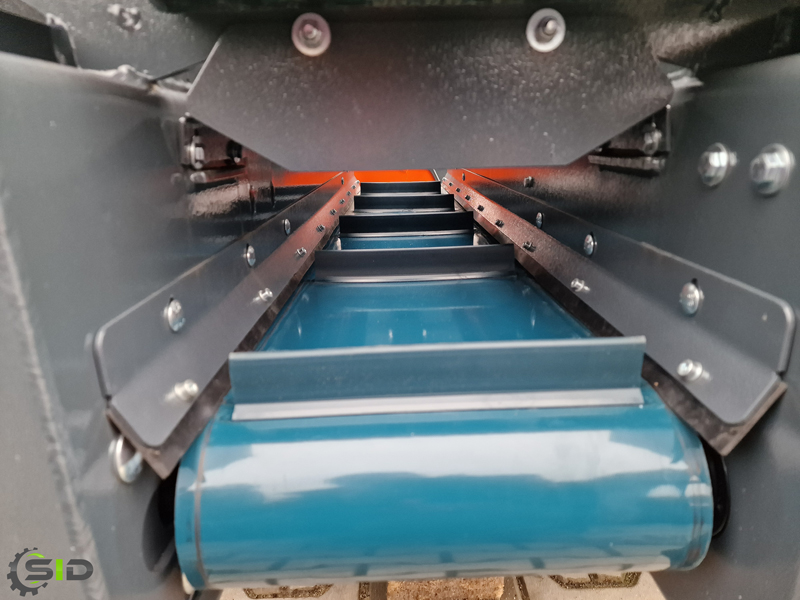

At the bottom of the bucket installed a belt dispenser with pick-ups for better littering and even spreading on the ground.
An additional roller installed at the bottom of the bucket makes it easier to fill with smaller machines.
Additional option
Distriubution Reducer.
Funnel Reducer.

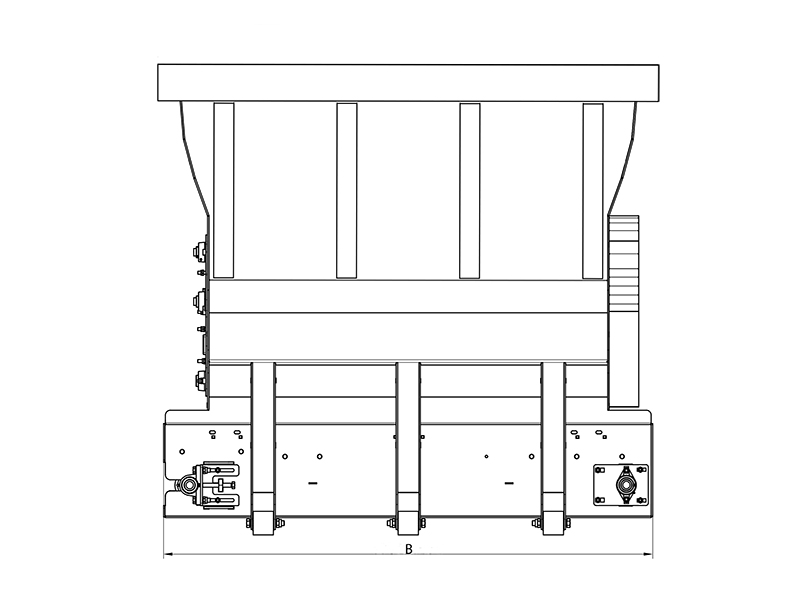

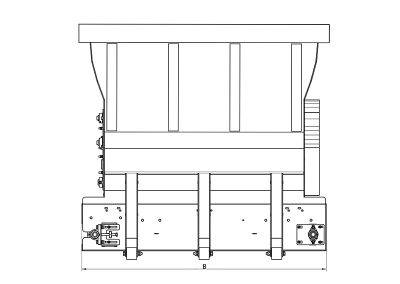

Specification
| Width | Capacity SAE |
Weight |
| 1200 mm |
1,00 m³ |
430 kg |
| 1550 mm |
1,40 m³ |
480 kg |
| 1200 mm | 1,30 m³ |
470 kg |
| 1550 mm |
1,70 m³ |
500 kg |
| 1800 mm |
2,00 m³ |
550 kg |
| 2200 mm |
2,15 m³ |
655 kg |
| 1800 mm |
2,60 m³ |
730 kg |
Dosing bucket with conveyor belt is an agricultural equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID company may introduce changes to the technical specifications without prior notice. Information and graphics on our website are provided for informational purposes only. Certain equipment elements may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID company representative.

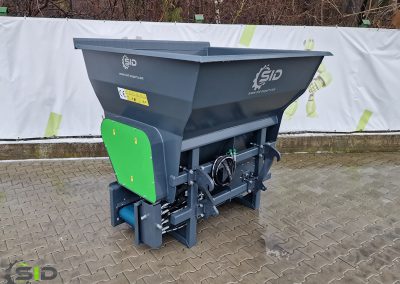

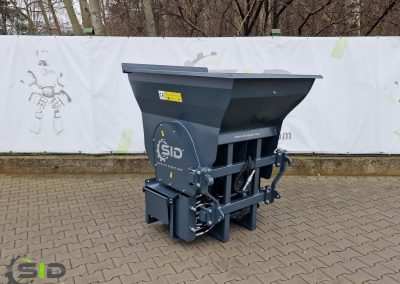

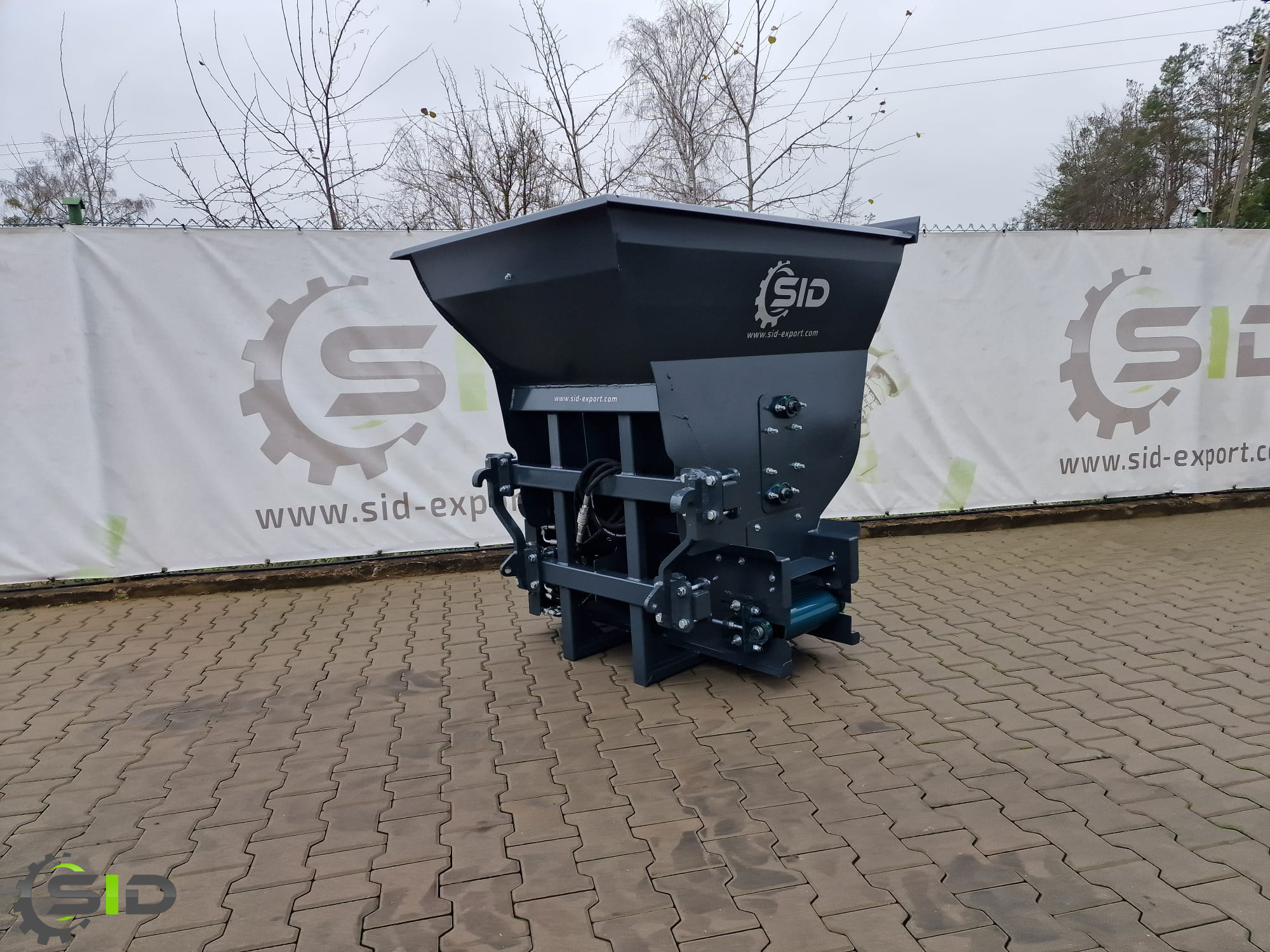

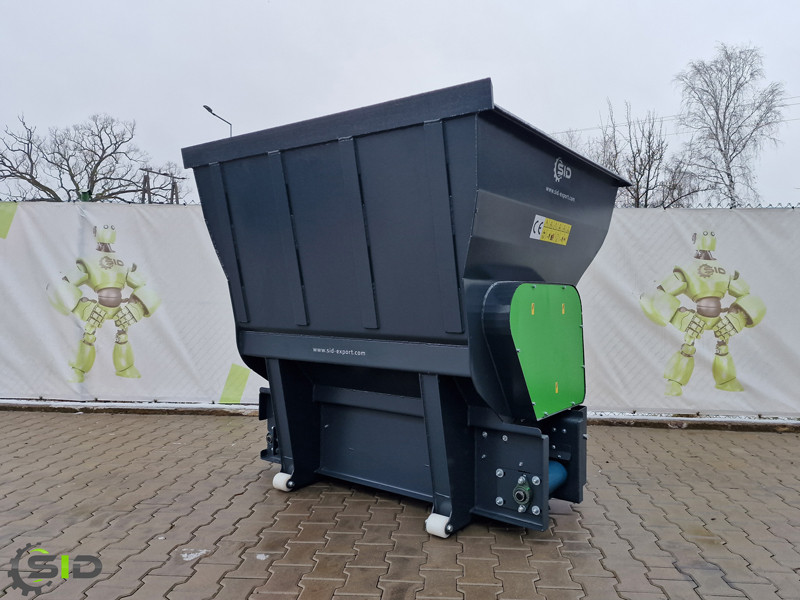

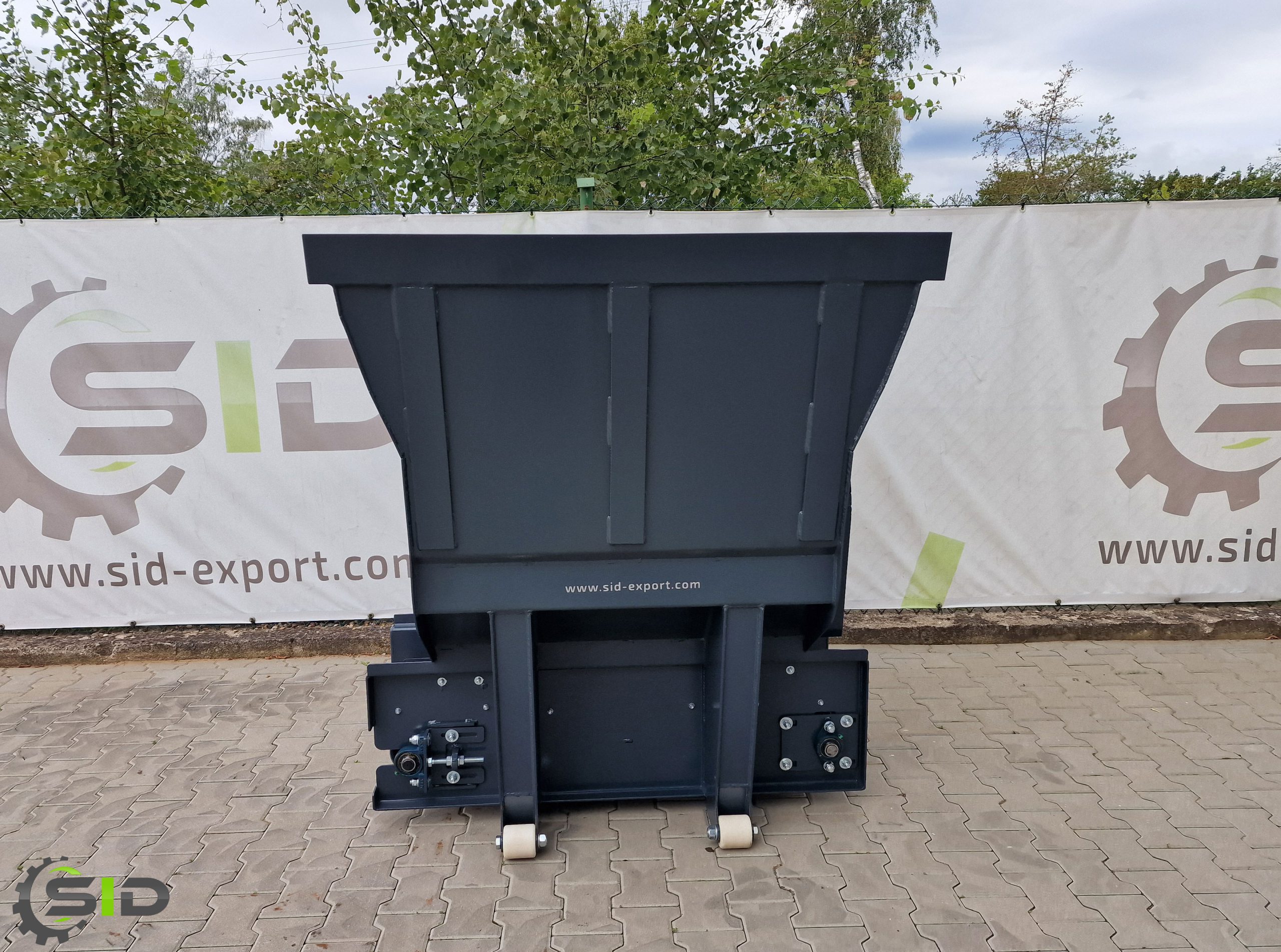

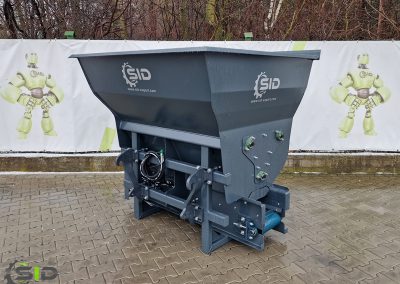

Product Gallery
