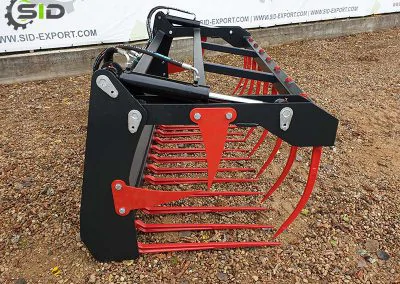

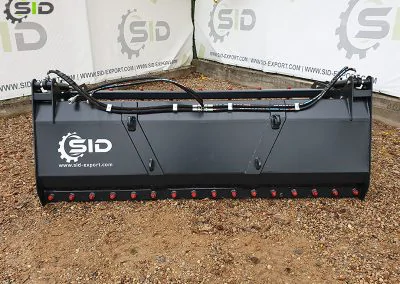

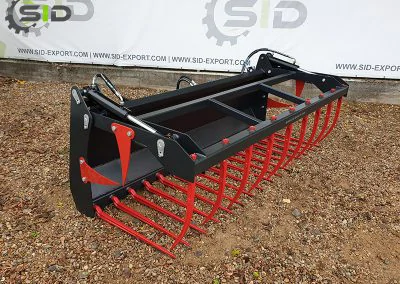

Manure fork with grapple
The manure fork with grapple is a modern, highly functional agricultural device, specially designed for efficient and easy transport of manure. Its unique design with a clamping mechanism ensures secure and safe material handling. Made from durable, high-quality materials, the Krokodyl guarantees long-lasting performance and resistance to harsh working conditions on the farm.
Description
The manure fork with grapple is easy to operate, allowing for quick loading and unloading, significantly increasing work efficiency. Thanks to its versatility, the Krokodyl can also be used to transport other bulk materials, making it an indispensable tool in every modern farm. Its compact construction makes it ideal for working in various conditions, even in limited spaces. Additionally, this device offers easy maintenance and servicing, guaranteeing uninterrupted and efficient operation for a long time. The Krokodyl is not just a practical choice but also an investment in the efficiency and development of the agricultural farm.
The manure fork with grapple features:
- Reliability you can depend on: a durable construction using S355 steel for increased strength.
- Safety of your investment: we offer a 12-month warranty on our product.
A full range of equipment for your farm! Don’t forget to check out other products in our offer. Many farming devices and accessories such as the manure fork with grapple mini, manure fork with grapple XL, or manure forks.
Discover our entire offer of agricultural machinery! Don’t wait and learn about other innovative solutions we have prepared for you. With them, your farm will operate even more efficiently. We invite you to visit our website and familiarize yourself with our full range of products!
Main product features
Sheathing 5 mm, S355 steel.
Reinforcements and main fasteners 8 mm.
Forged, screwed teeth seated in conical sleeves welded into a profile 80x80x5-6 mm.
Hydraulic conduits, double steel braid DN10 2SN.
The 220x36x73 cylinders are made of the best components, the piston rod does not corrode even during long periods of non-use.
Pins are made of grade C45 steel, galvanized.
Movable places are lubricated.
The standard is euro mount, each other on request according to customer needs.
12-month warranty.
SID Manure fork with grapple – specification
SID Manure fork with grapple
Specification
| Width | Capacity | Weight |
| 1000 mm |
0,46 m³ |
138 kg |
| 1200 mm |
0,55 m³ | 164 kg |
| 1400 mm | 0,64 m³ | 190 kg |
| 1600 mm | 0,74 m³ | 242 kg |
| 2000 mm | 0,92 m³ | 294 kg |
| 2200 mm | 1,01 m³ | 320 kg |
| 2400 mm | 1,10 m³ | 346 kg |
The manure fork with grapple we offer is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID company may introduce changes to the technical specifications without prior notice. Information and graphics on our website are provided for informational purposes only. Certain equipment elements may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID company representative.
