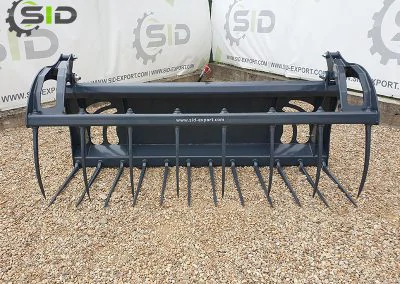

Manure fork with grapple XL

Crocodile manure fork with grapple XL is a device adapted to the transport of manure, maize or silage. A solid and durable structure ensures safe and long use.
Manure fork with grapple XL

Description

In order to obtain the appropriate clamping of the material, the crocodile was equipped with powerful hydraulic cylinders. The full back wall prevents the material from falling out during transport. Forged teeth are very durable. A significant advantage of the machine is the large opening angle of the movable frame.

Main product features

Z

Profile 80x80, wall 8 mm, sides 10 mm, reinforcements 10 mm.

Z

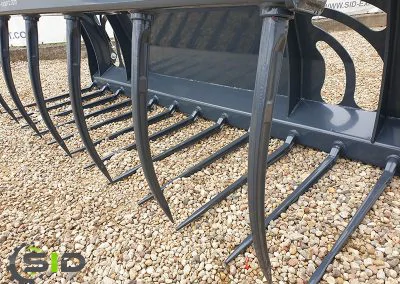

Forged, screwed-on teeth seated in conical sleeves welded into the 80x80x5-6 mm profile.

Z

Hydraulic hoses, double steel braid, DN10 2SN.

Z

The 220x36x73 cylinders are made of the best components, the piston rod does not corrode even when not used for a long time.

Z

Pins made of C45 quality steel, galvanized.

Z

Movable places are lubricated.

Z

Height 1100 mm.

Z

Opening height 1800 mm.

Z

Depth 1100 mm.

Z

The standard is euro mount, each other on request according to customer needs.

Z

12-month warranty.

Specification

Width Capacity Number of teeths up/down
Weight
1800 mm
1,22 m³
9/6
357 kg
2000 mm
1,32 m³
10/7
382 kg
2200 mm
1,47 m³
11/7
406 kg
2300 mm
1,53 m³
12/8
417 kg
2400 mm 1,62 m³ 12/8
433 kg
2600 mm
1,74 m³
13/8
455 kg

Each of the agricultural equipment we offer is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
