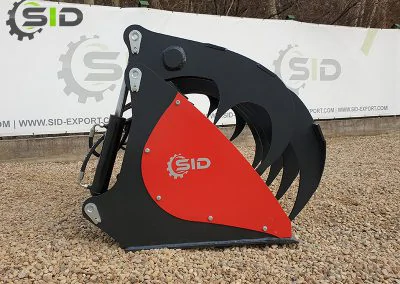

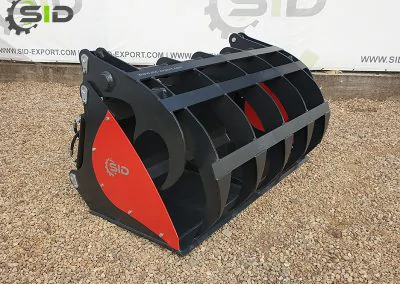

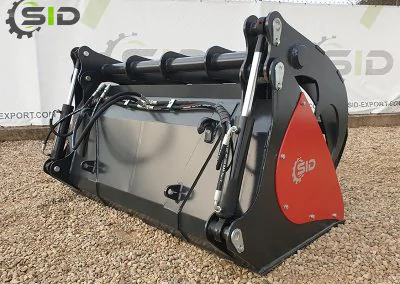

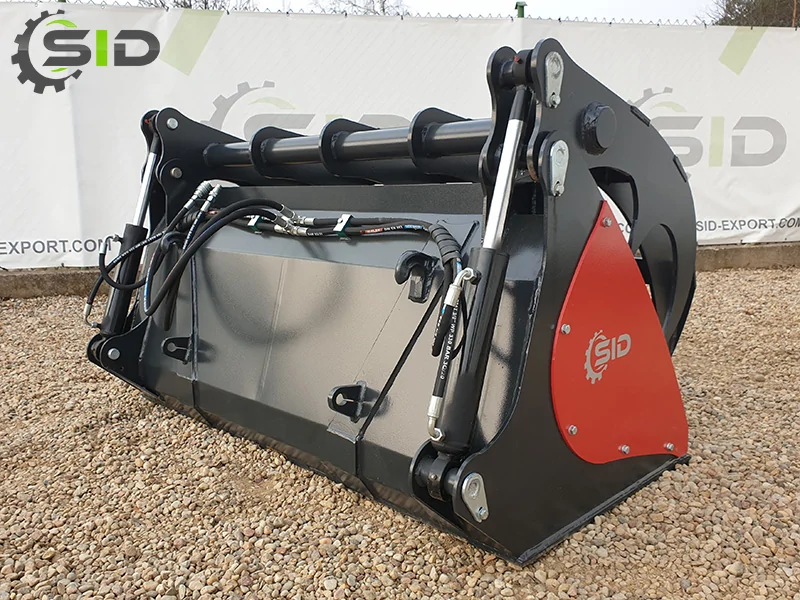

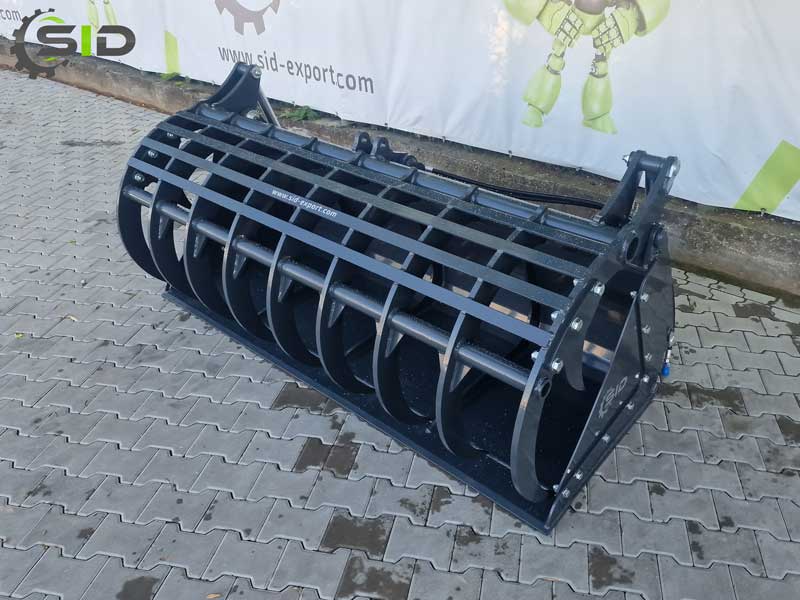

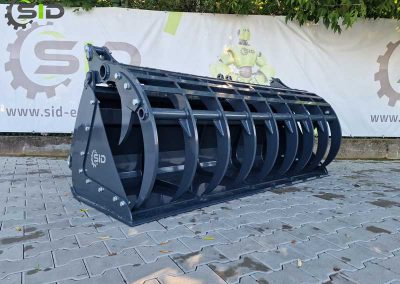

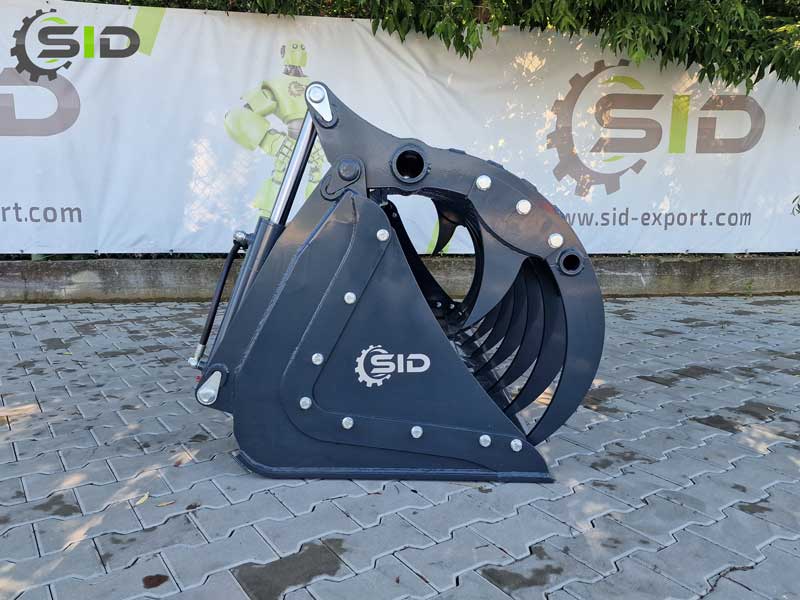

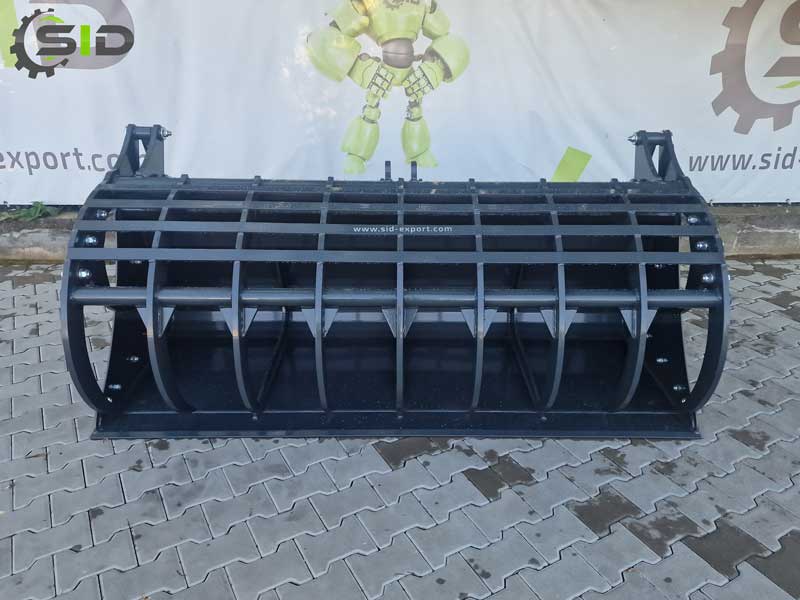

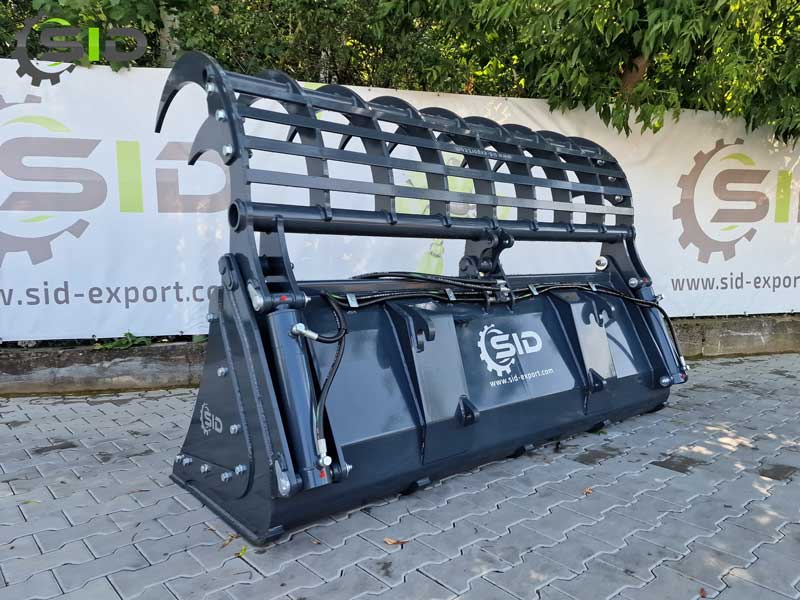

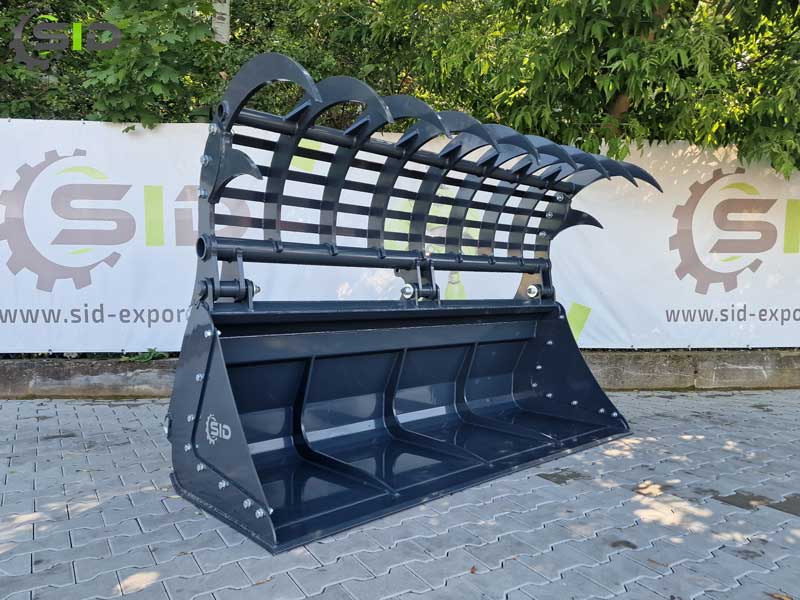

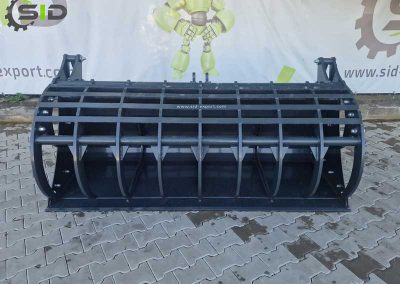

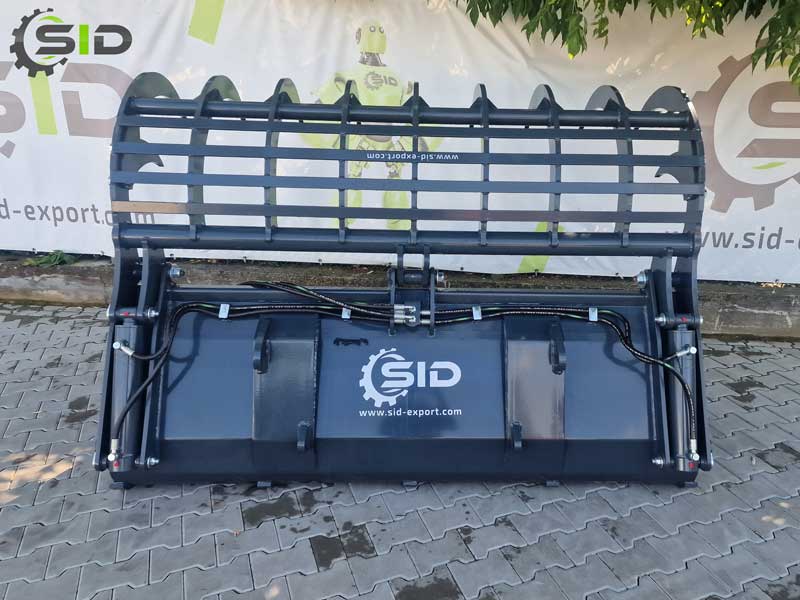

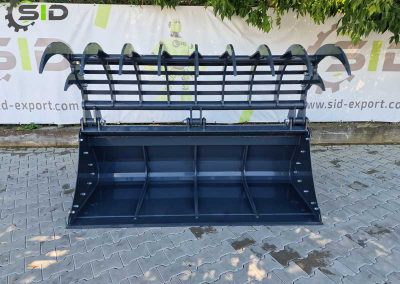

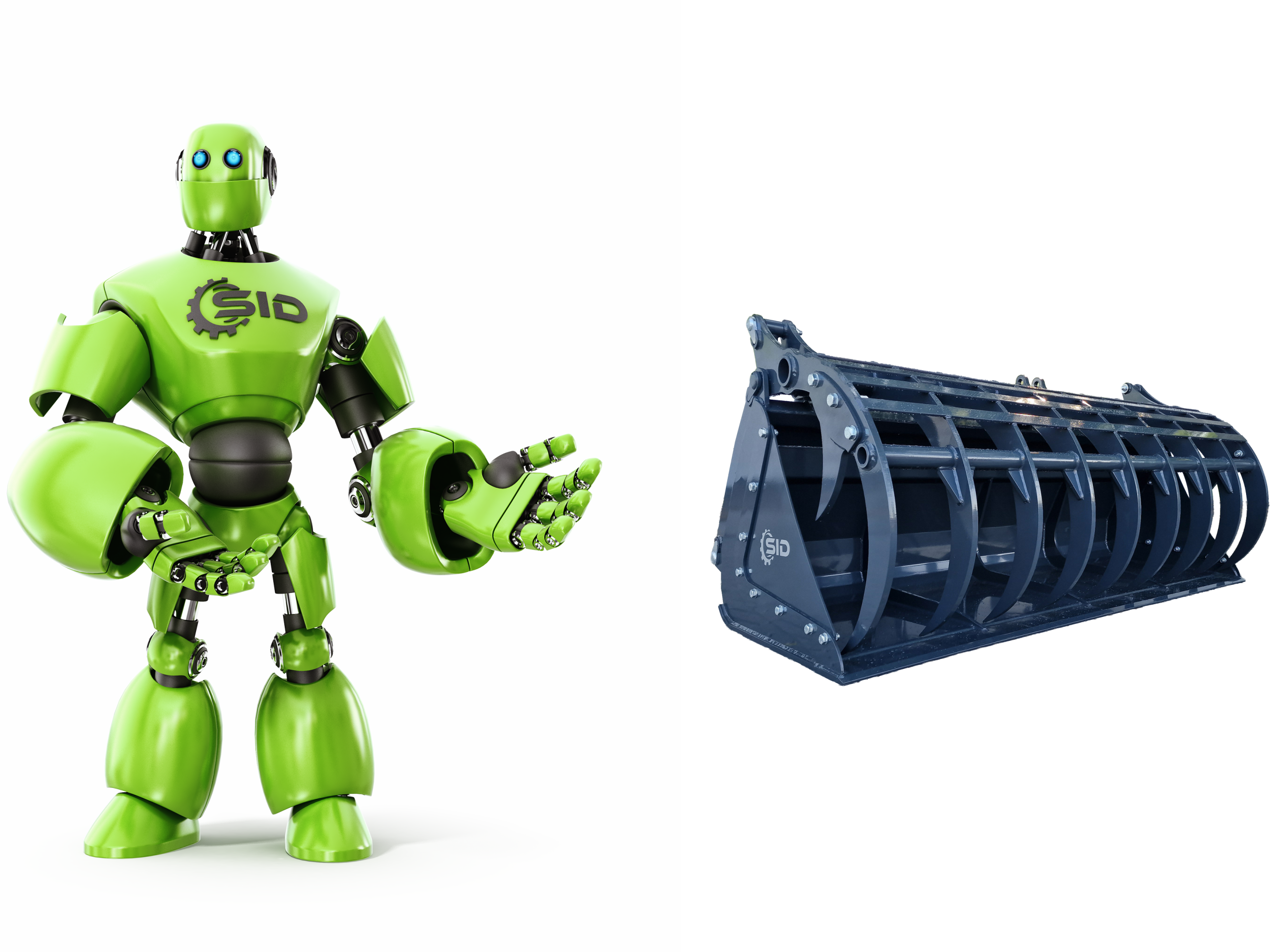

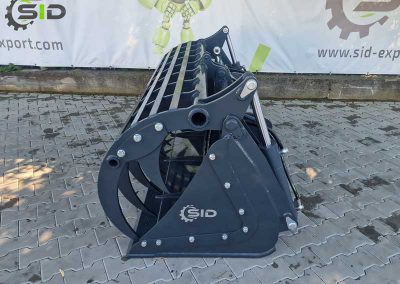

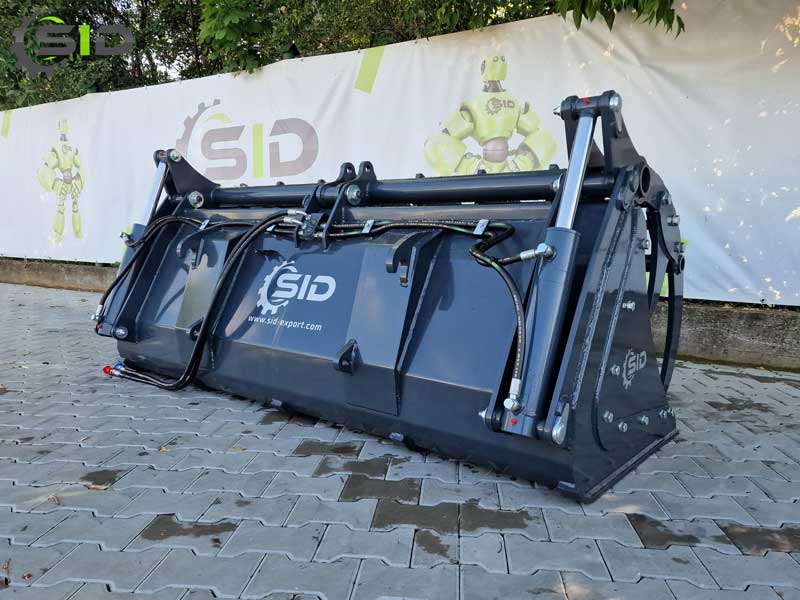

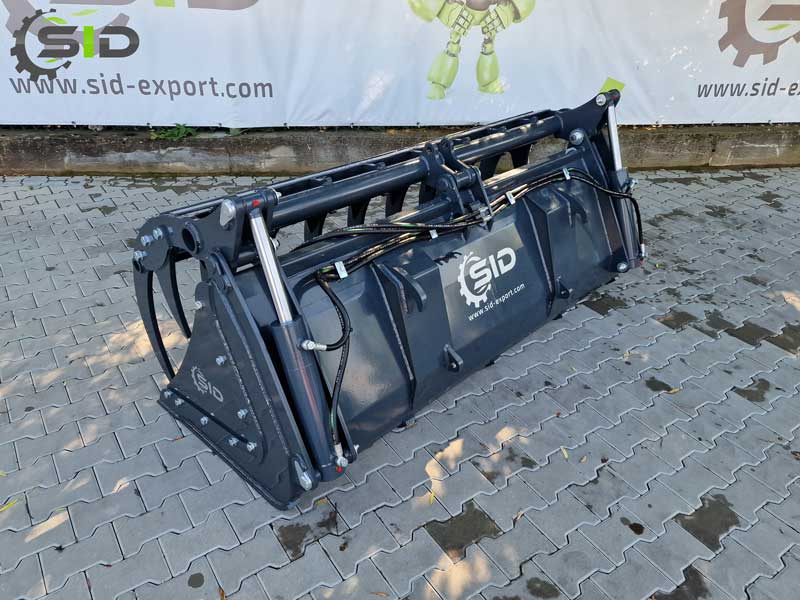

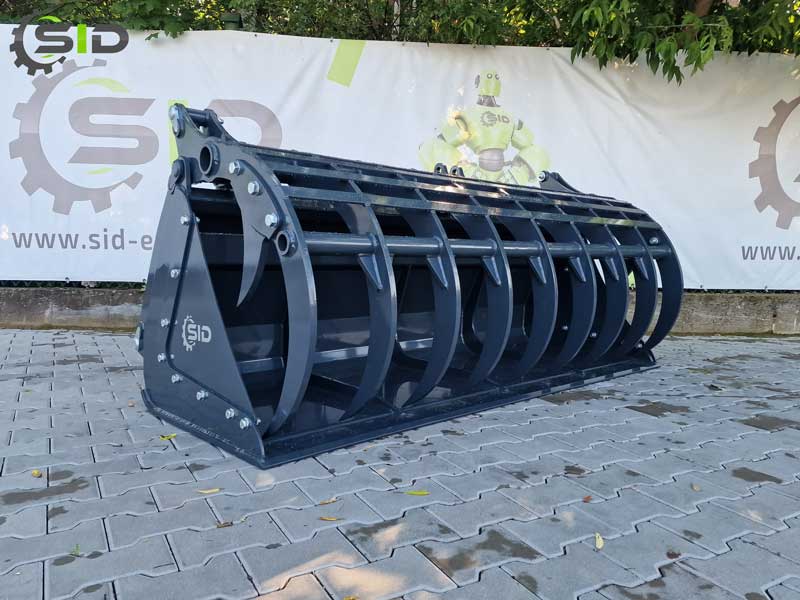

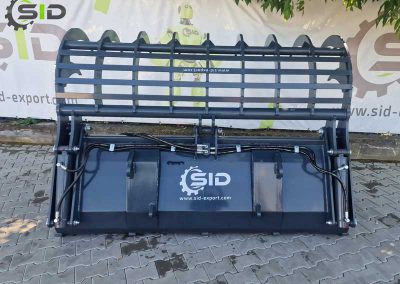

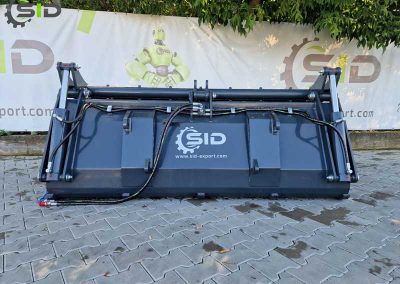

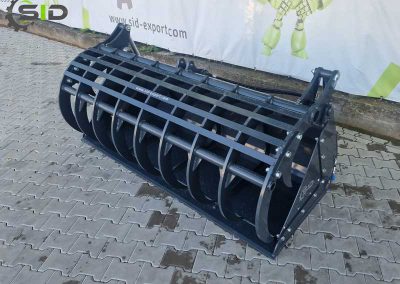

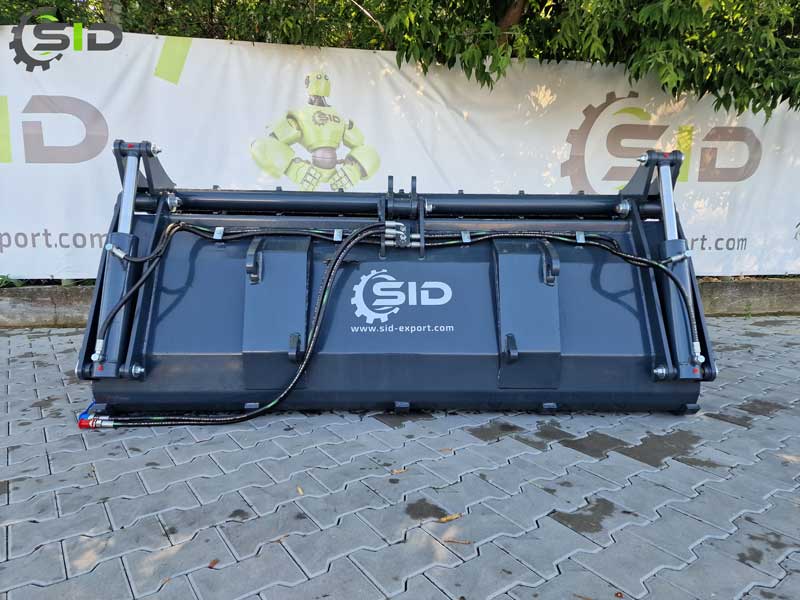

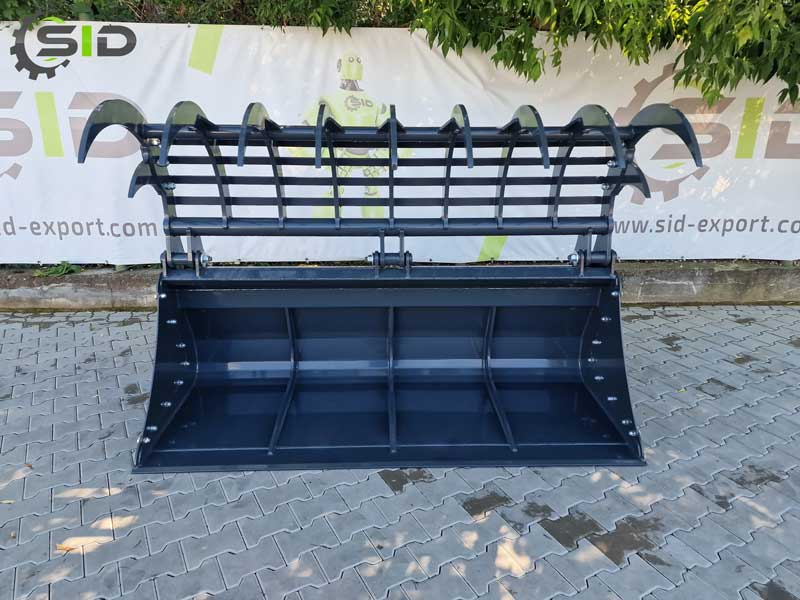

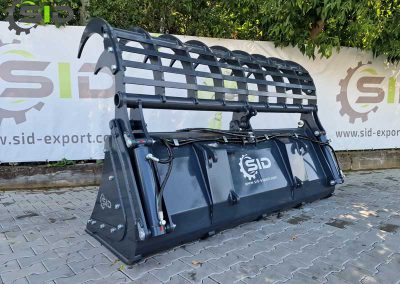

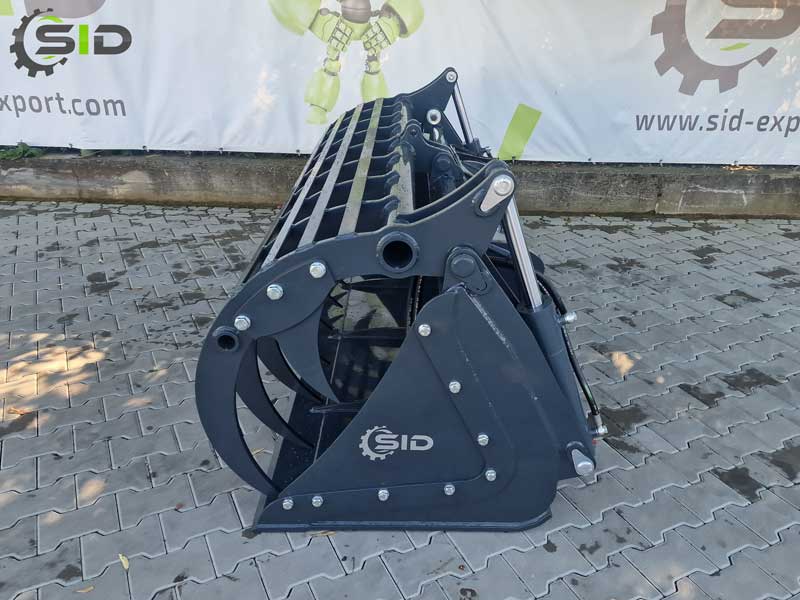

Grab bucket burned tines

Grab bucket burned tines  –  is primarily an accessory for working with silage, but it also fulfills its role well when performing other tasks related to grabbing and collecting in agriculture, public services or smaller enterprises.

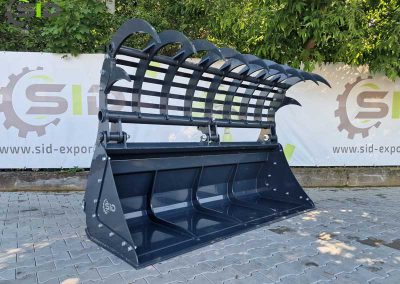

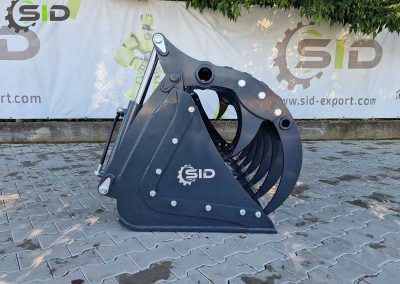

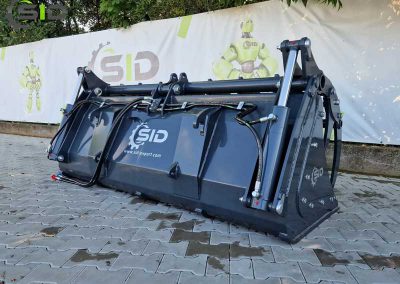

Grab bucket burned tines

Description

The shape of the grapple tines and the tilted position ensure even locking, preventing large clearances and generating heat in the silage. The conical shape of the bucket makes it easy to fill and empty the device. Bucket-crocodile burned tooth is equipped with a blade made of hard-wearing HARDOX steel and thanks to the possibility of lubricating the movable place on the sleeves, the machine is protected against quick wear.

Main product features



Z

Internal reinforcements 15 mm

Z

Sheathing 8 mm steel S355.

Z

burnt teeth - 20mm.

Z

Blade size 150 × 15 Hardox wear resistant steel.

Z

Cylinders with a diameter of 93 mm.

Z

2SN cables 330 bar.

Z

Moving places lubricated sliding sleeves.

Z

12-month warranty.

Z

The standard is euro mount, each other on request, according to the client's needs.

Specifications

Width Capacity Number of tines
Weight
1000 mm 0,53 m³ 4 pc.
406 kg
1200 mm
0,63 m³
4 pc. 435 kg
1400 mm
0,74 m³
5 pc. 478 kg
1600 mm
0,85 m³
6 pc. 521 kg
1800 mm
0,95 m³
7 pc. 576 kg
2000 mm
1,06 m³
8 pc. 618 kg
2200 mm 1,17 m³ 9 pc. 686 kg
2400 mm 1,27 m³ 10 pc. 728 kg

Each agricultural equipment is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
