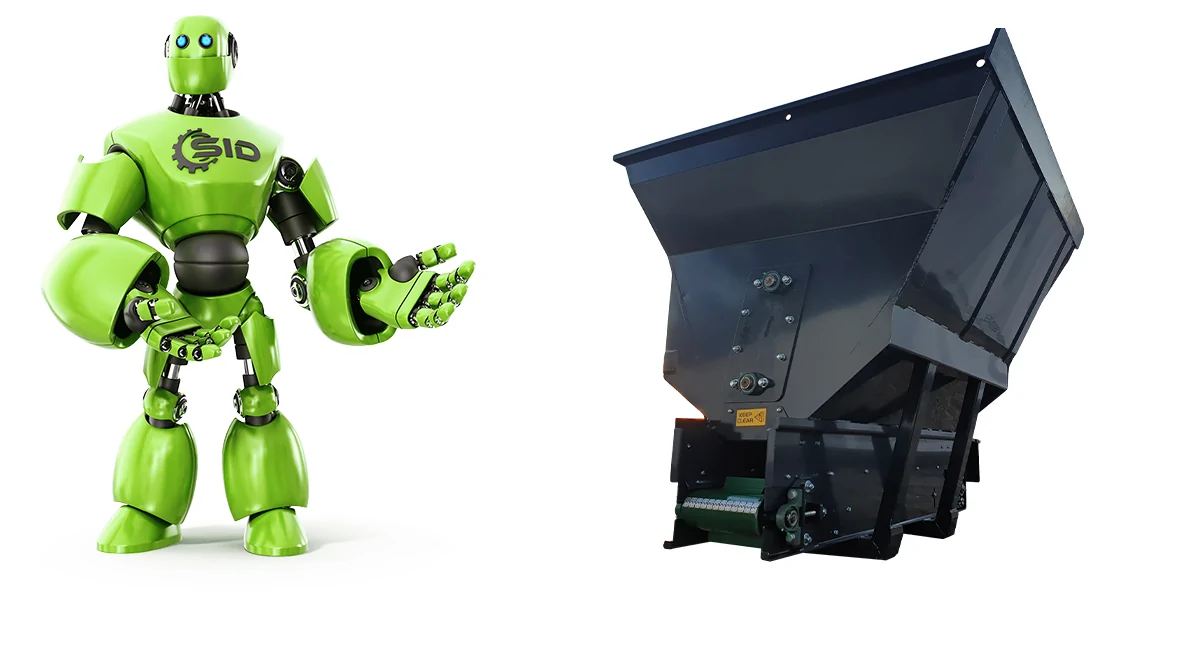

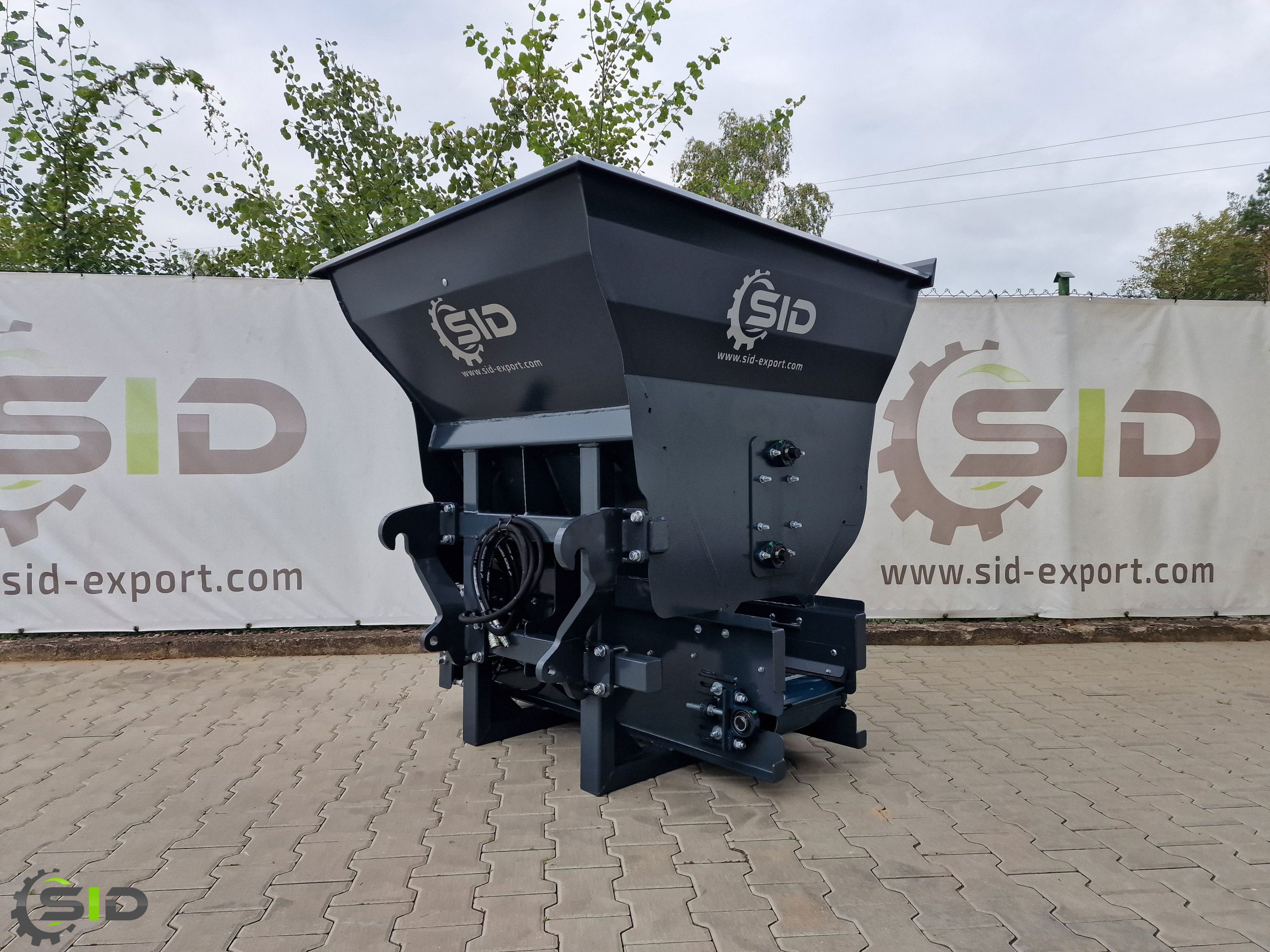

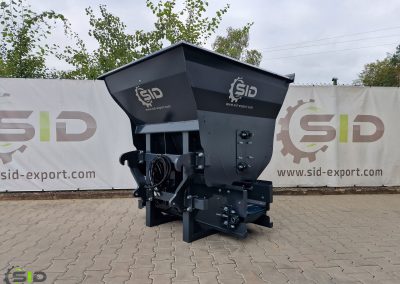

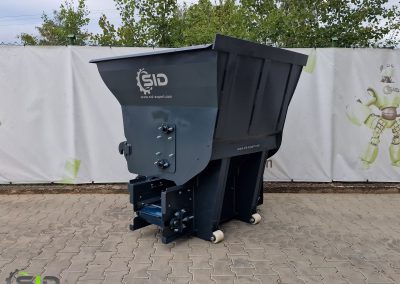

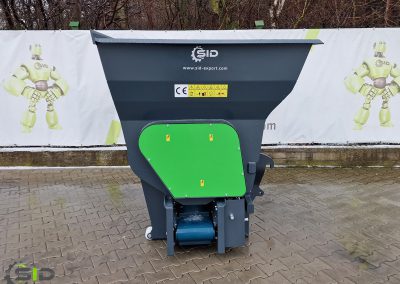

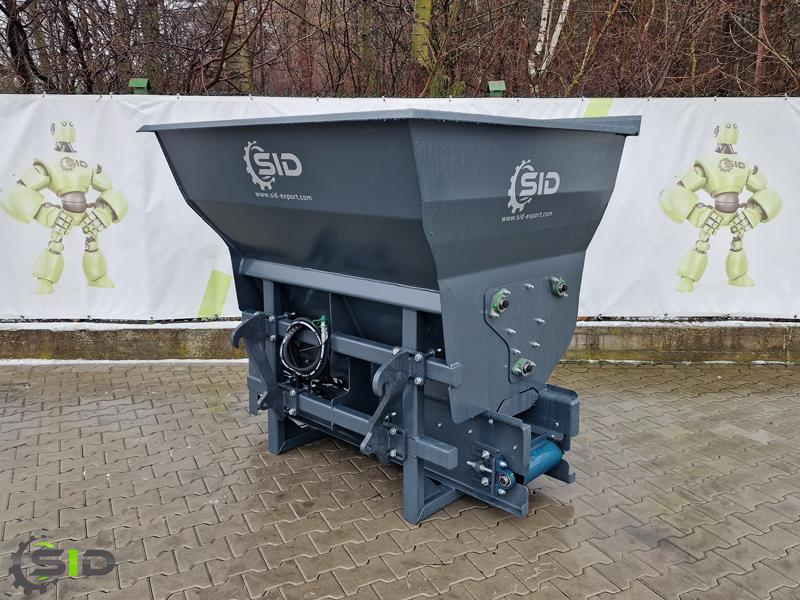

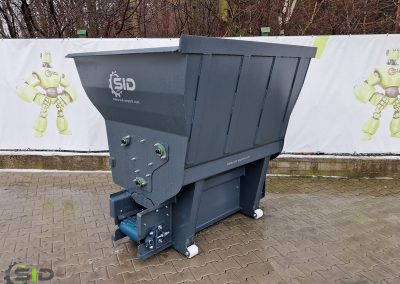

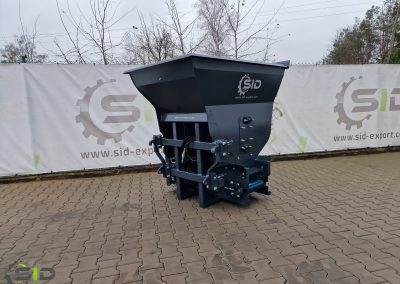

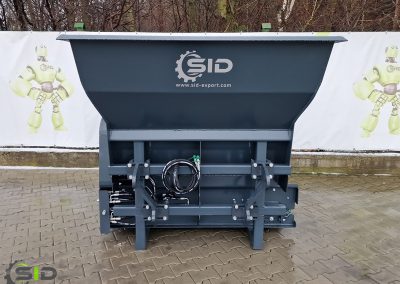

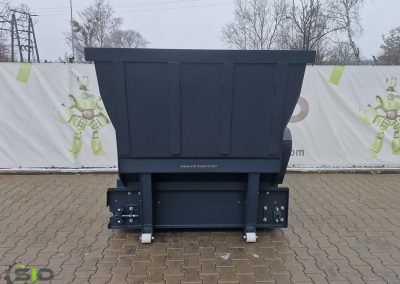

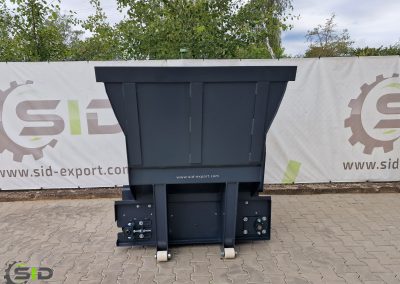

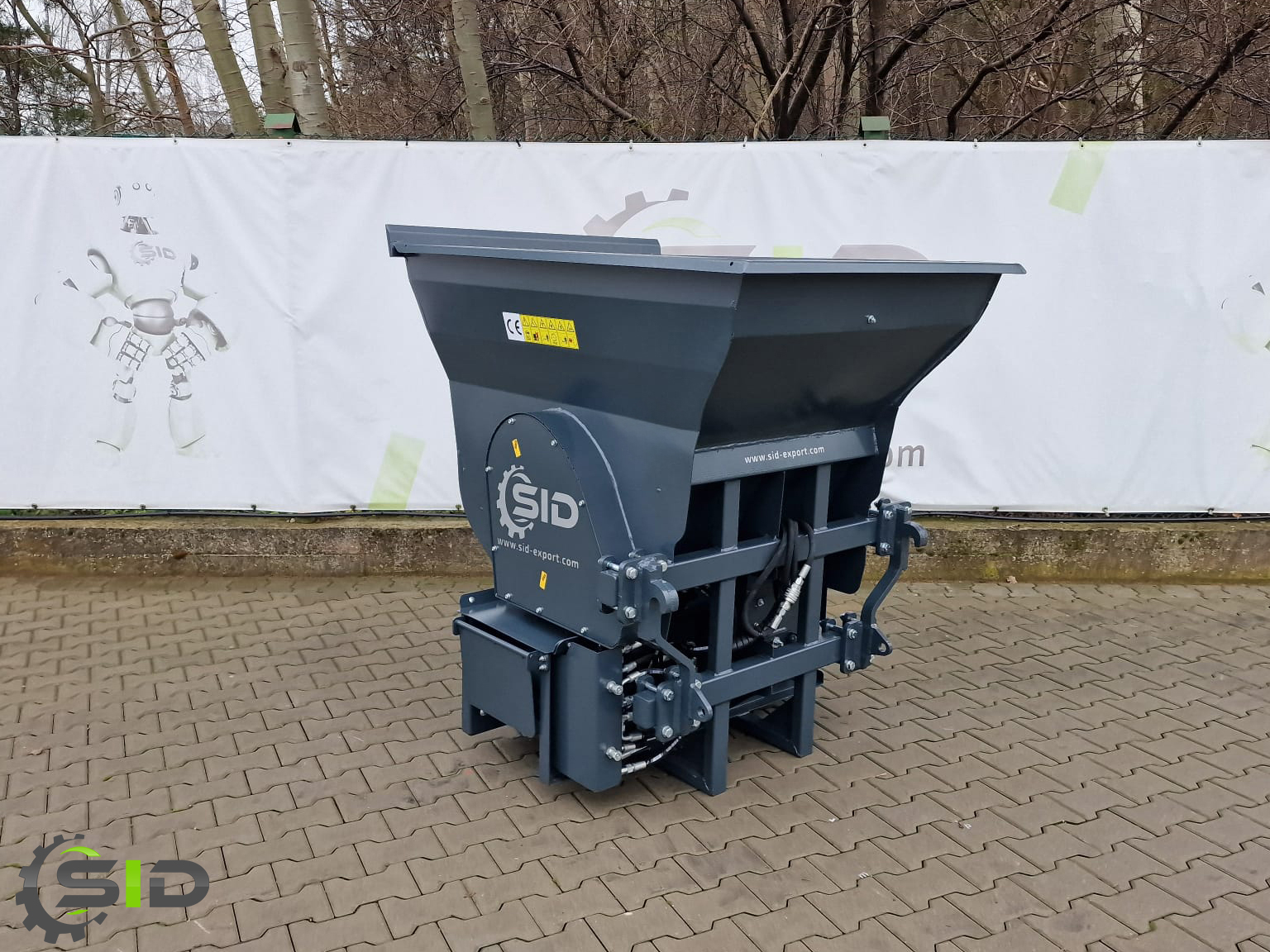

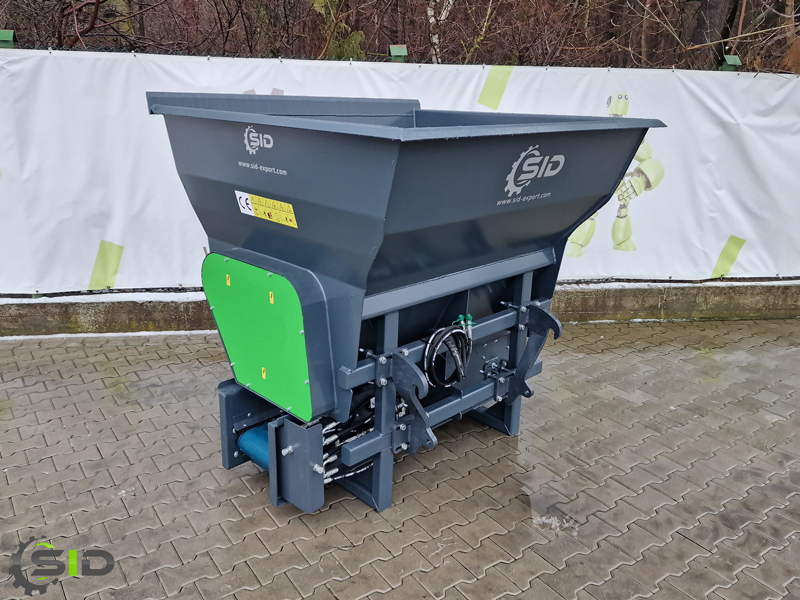

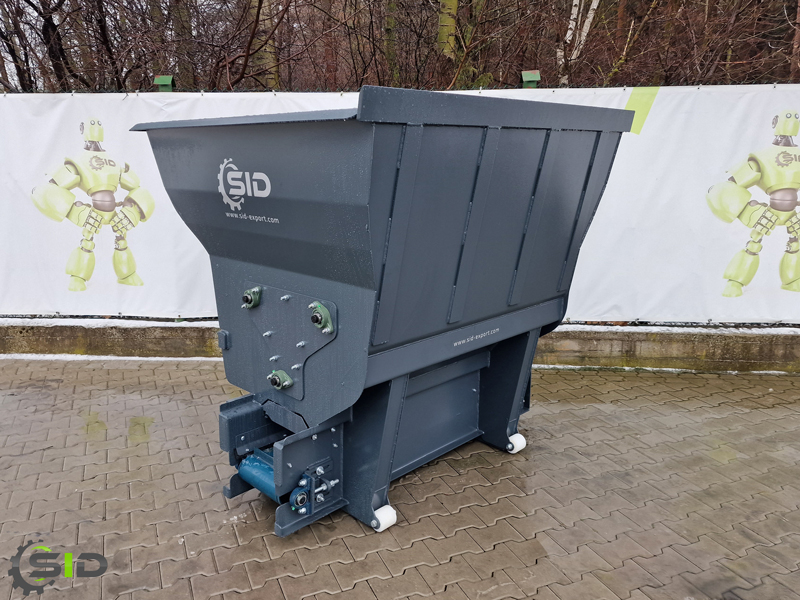

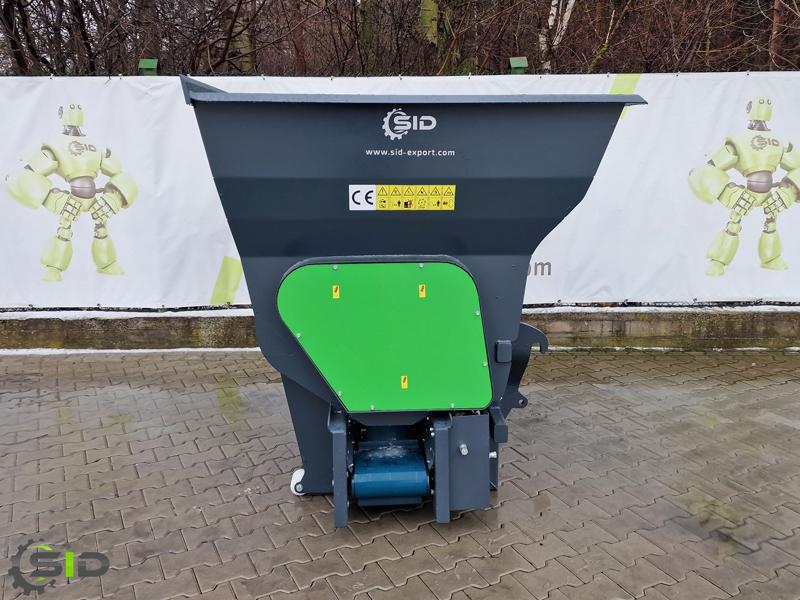

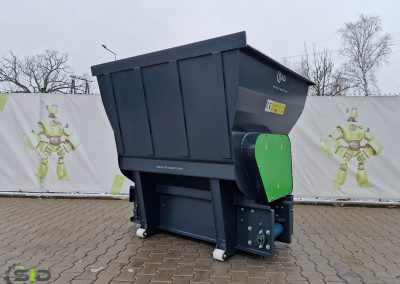

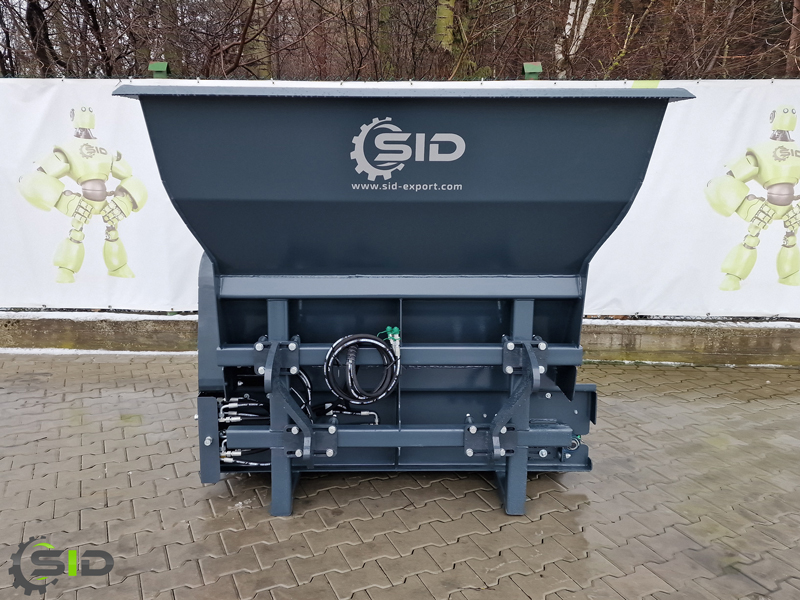

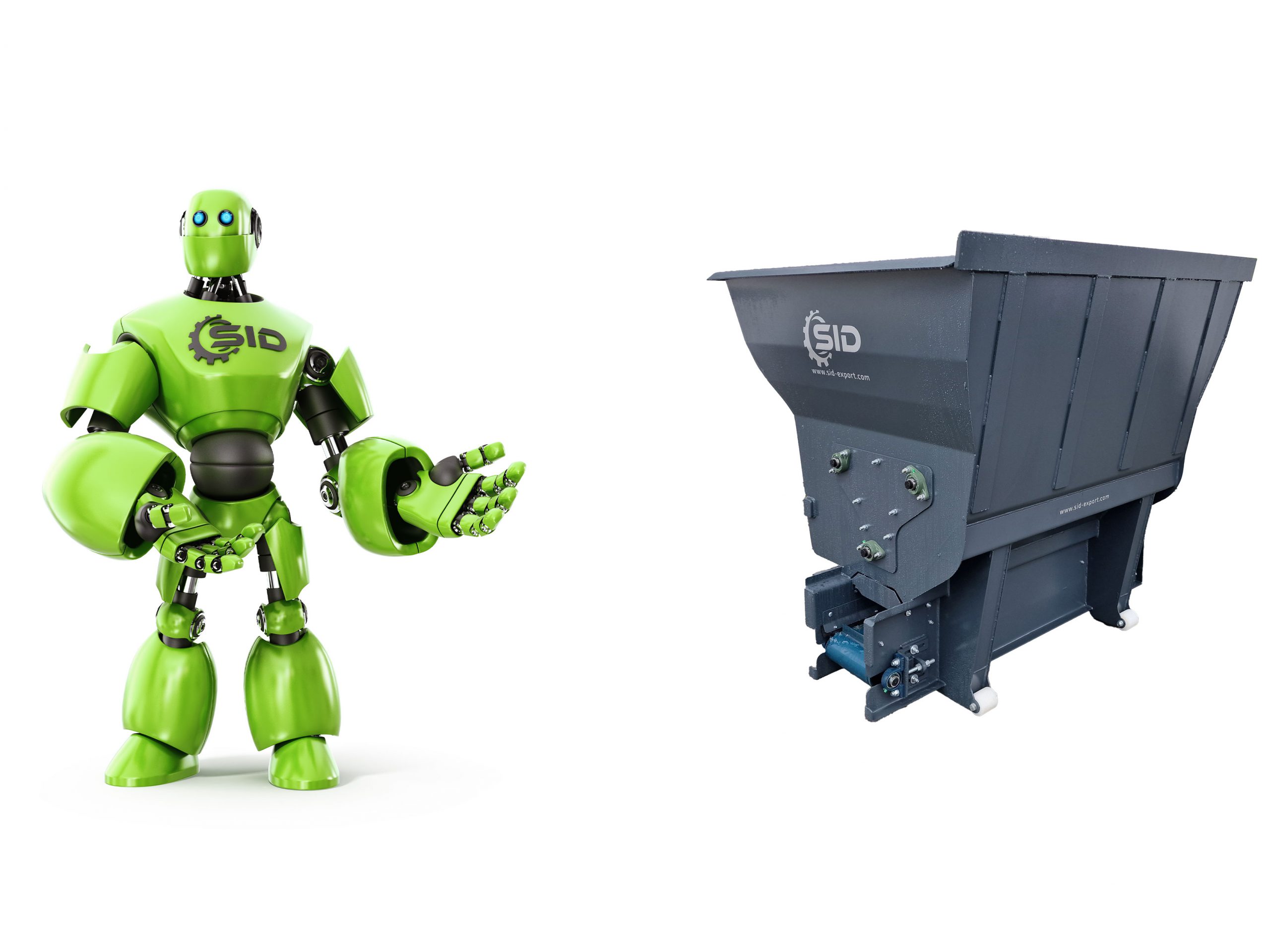

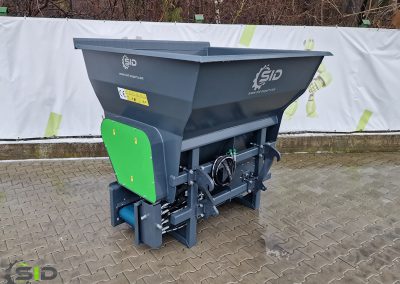

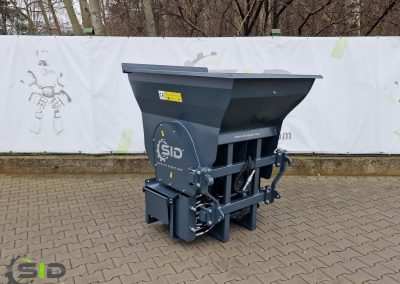

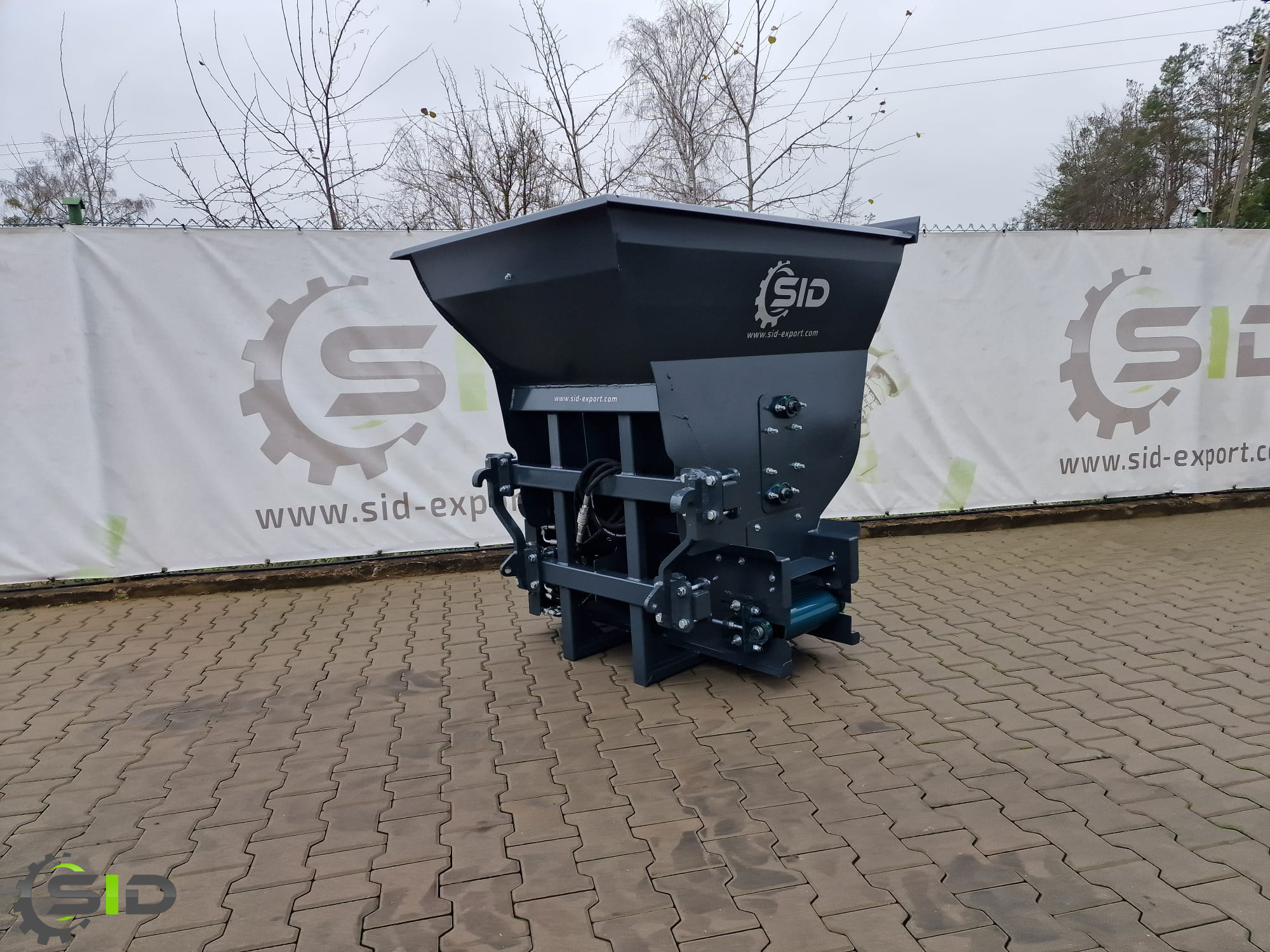

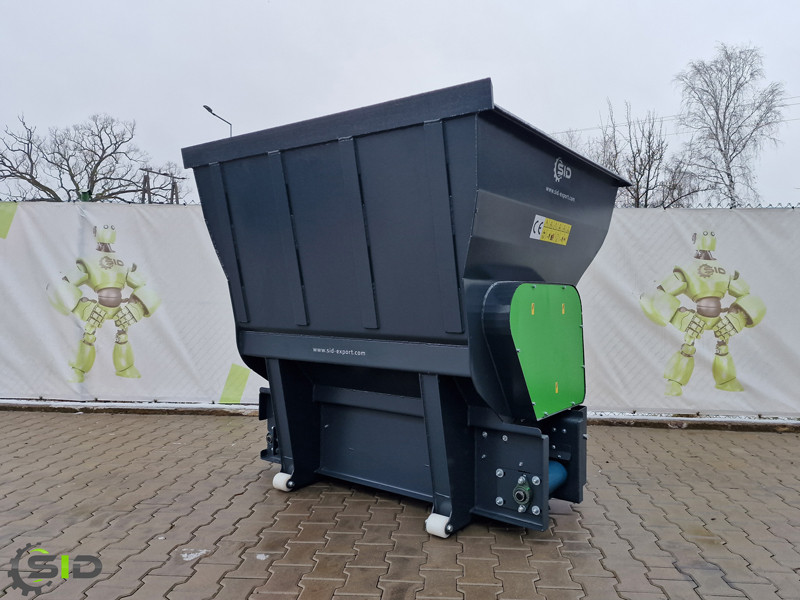

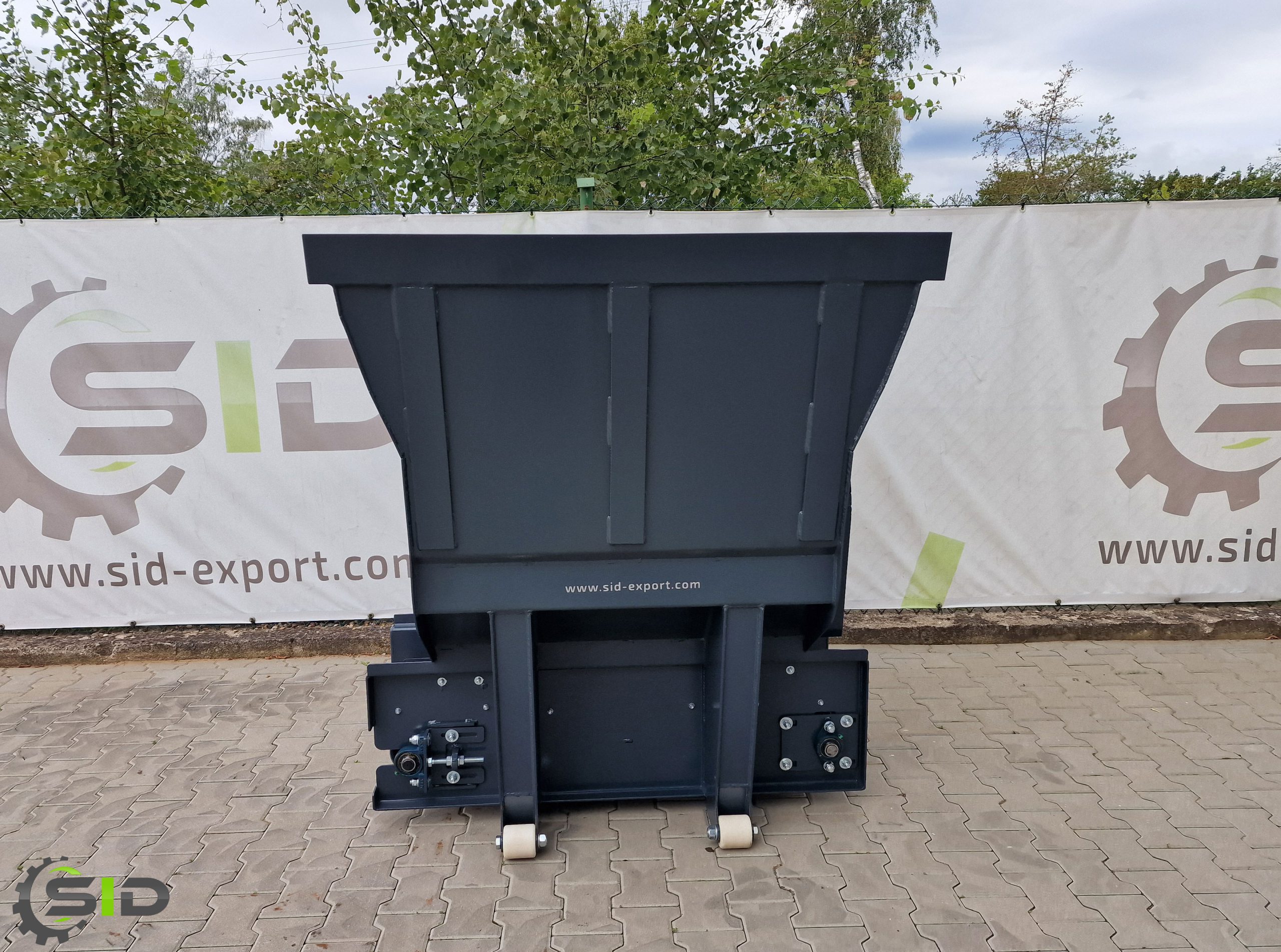

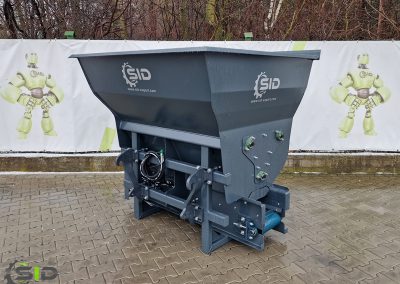

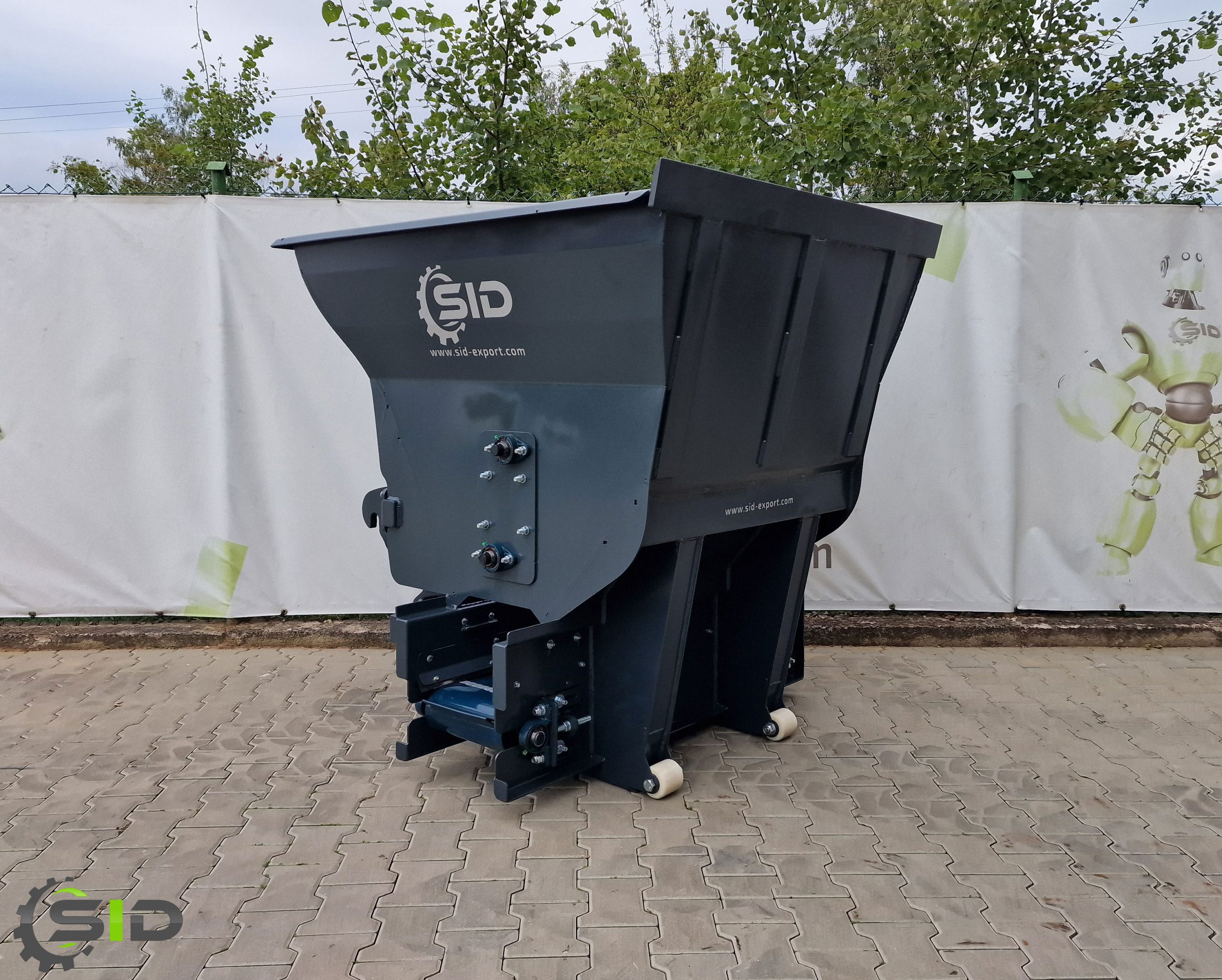

Dosing bucket with conveyor belt

Dosing bucket with conveyor belt – its the dosing spoon with tape that is ideal, in particular, in cattle and poultry farming, as well as in gardening.
Dosing bucket with conveyor belt

Description

The dosing bucket with the tape (belt spreader) is equipped with two rollers inside the container, which dispense the material very well on the discharge belt. A well-designed structure in terms of strength and weight of the device ensures long-term use. Chopped straw, sawdust or other light materials can be used for bedding cattle and poultry.

The dosing bucket with the belt can also handle loose feed, but also maize silage.

The belt paver can also be used in gardening for bedding with sawdust, wood chips, and for spreading compost. The container has a specially designed shape, thanks to which the material collected and dispensed does not hang.

Main product features



Z

Reinforced steel construction, the bucket is strong and light.

Z

Easy and safe operation.

Z

Versatility: designed for dry forage, maize and cut grass.

Z

Fast and precise mixing and discharging.

Z

Robust and durable construction made of high strength steel S355.

Z

The whole is hydraulically driven from one section, the demand min. 45L / min.

Z

The screw-on attachment ensures quick replacement without cutting or welding.

Z

It is possible to produce a belt spreader with dimensions according to customer needs.

Z

The device has the construction of a bucket with a 4 mm or 5 mm sheathing, in which the front part is finished with a HB 400 blade 110×12 mm, made of hardox wear steel, advanced forward for better and more complete filling.

Z

The possibility of adjusting the speed of the dosing belt, which allows us to feed not only loose feed, but also maize silage.

Z

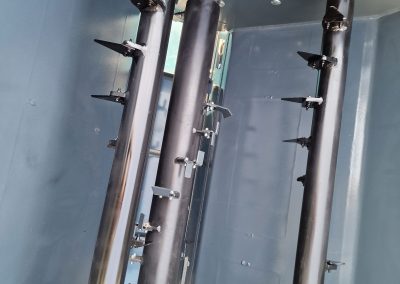

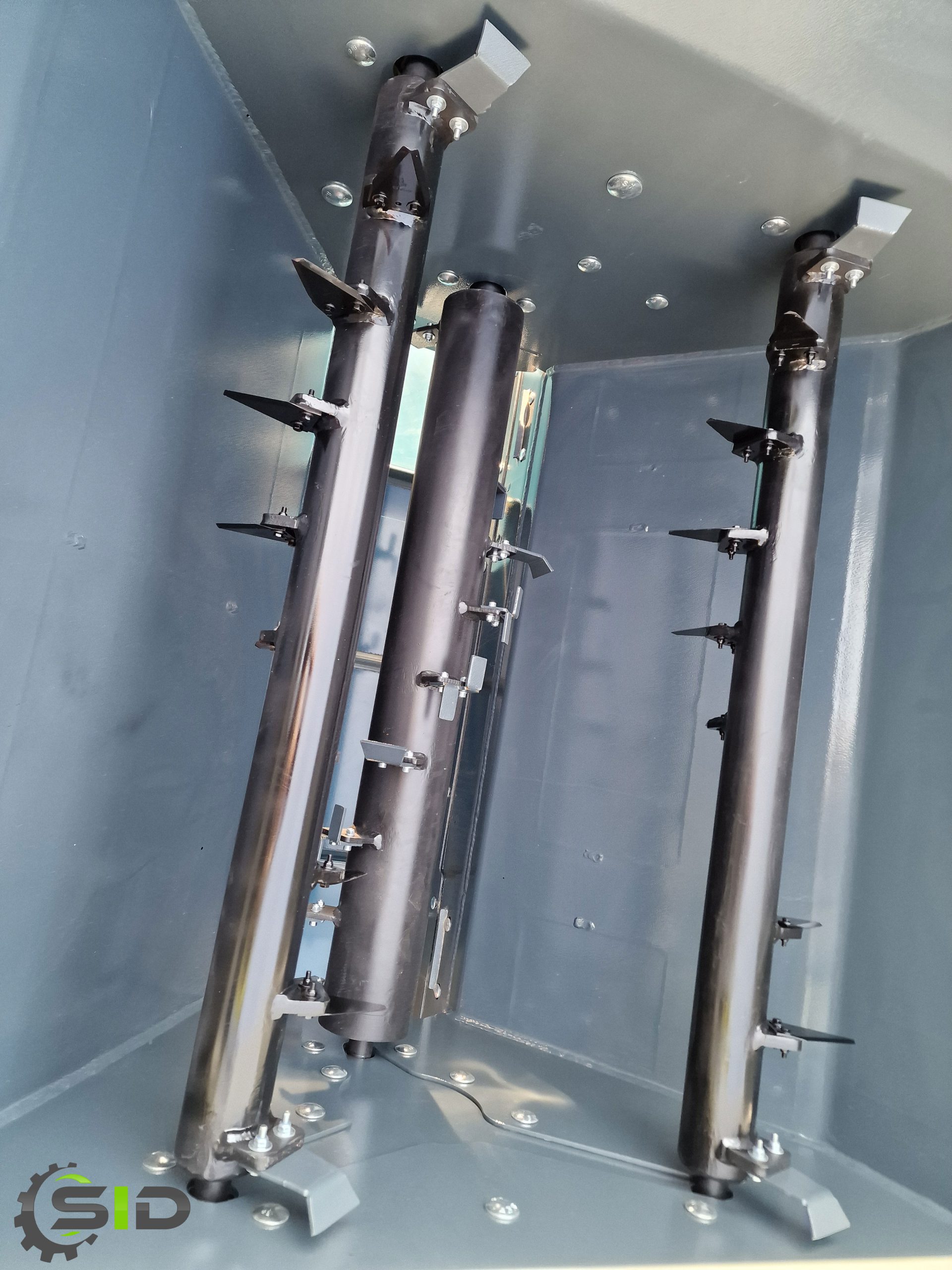

Inside, there are two 250 mm rolls with spikes for mixing and dosing the material.

Z

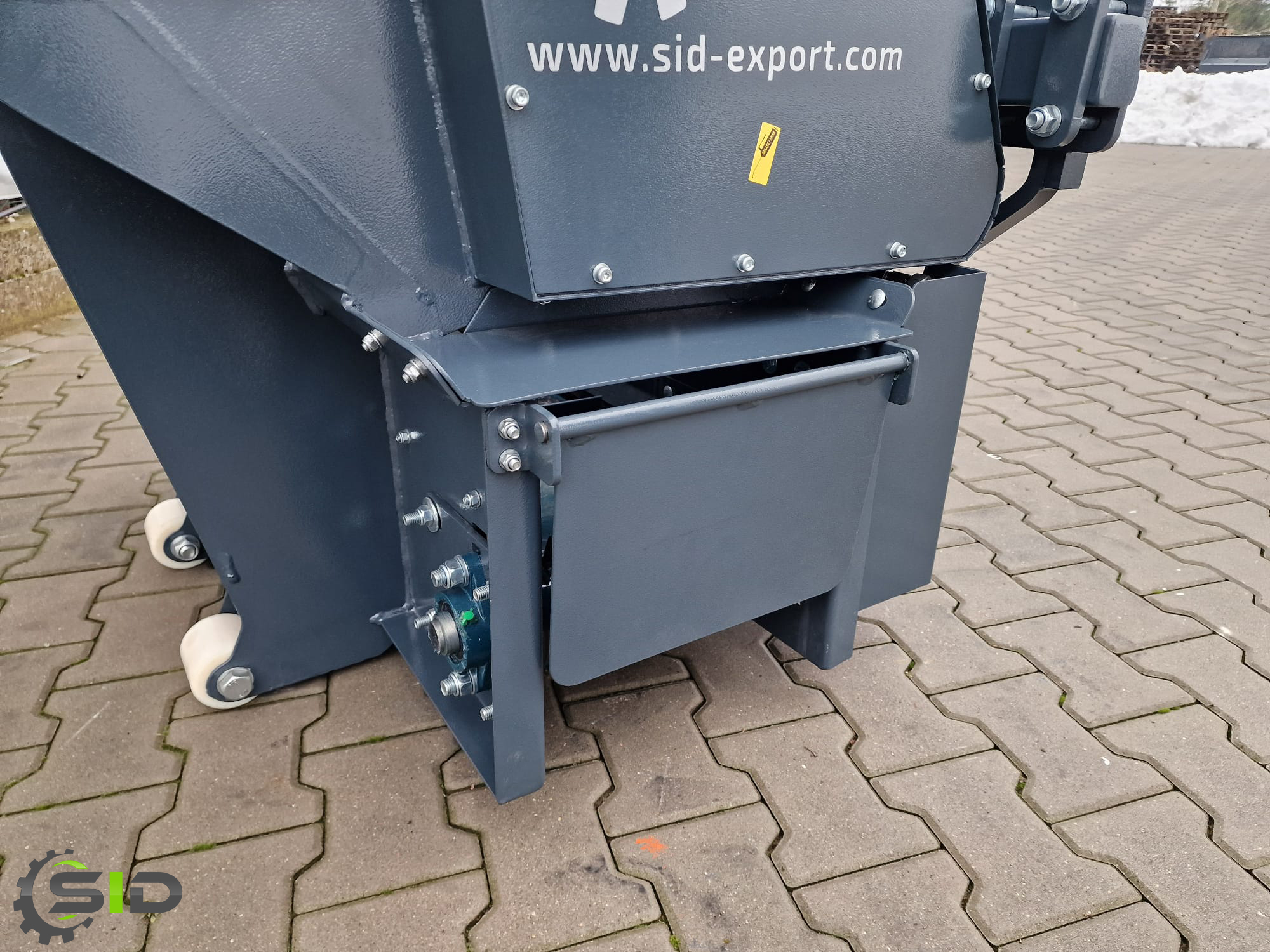

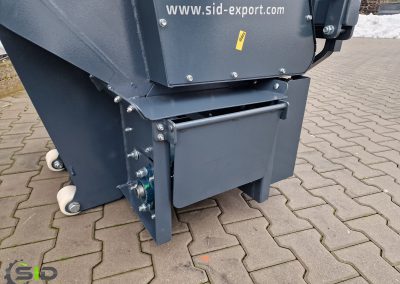

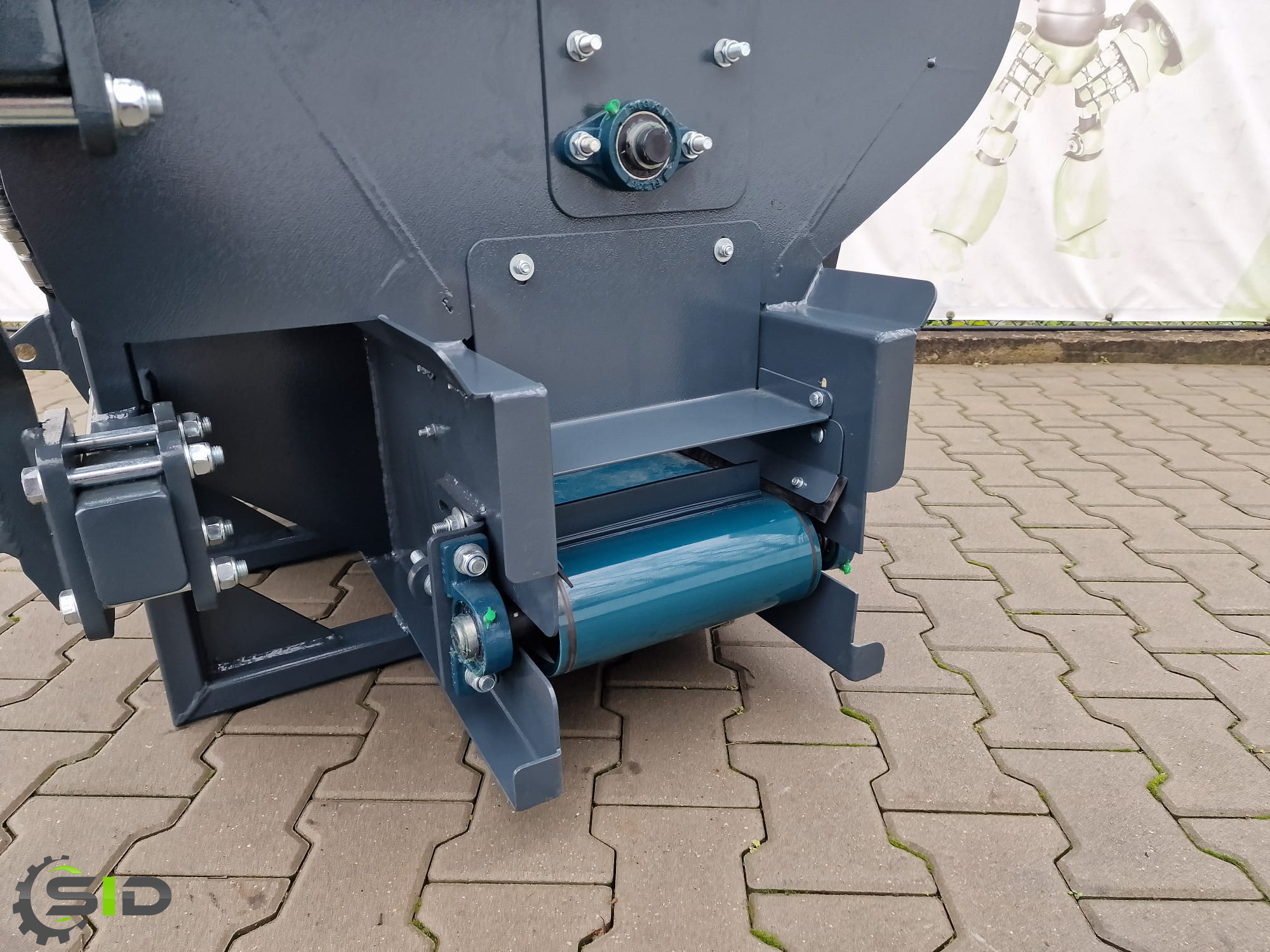

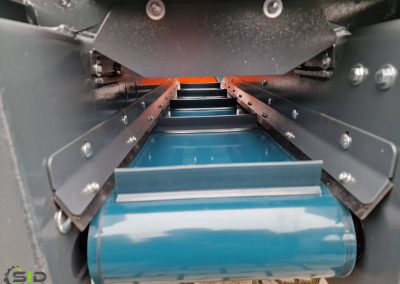

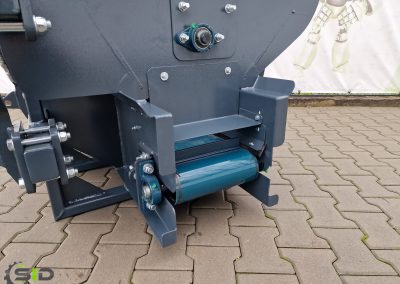

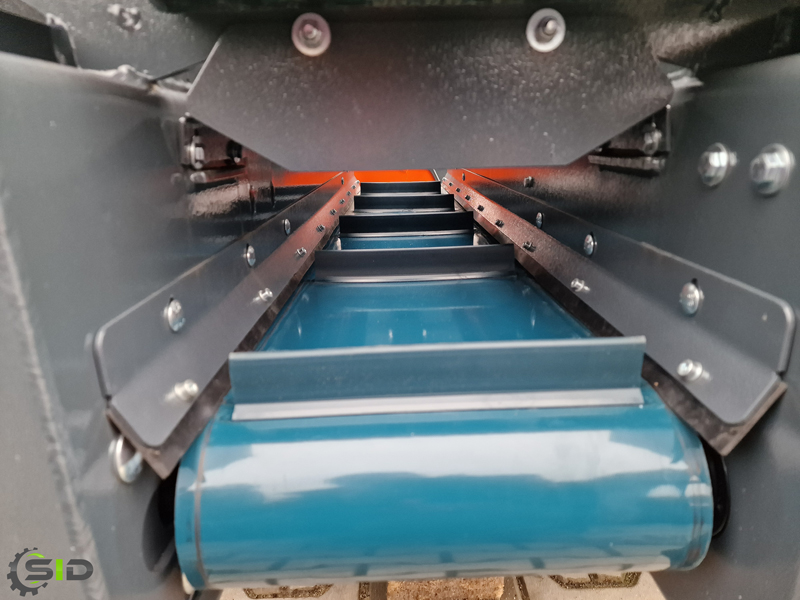

At the bottom of the bucket installed a belt dispenser with pick-ups for better littering and even spreading on the ground.

Z

An additional roller installed at the bottom of the bucket makes it easier to fill with smaller machines.

Z

330 bar cables as standard.

Z

Any mounting according to customer specifications.

Additional option

Z

Distriubution Reducer.

Z

Funnel Reducer.

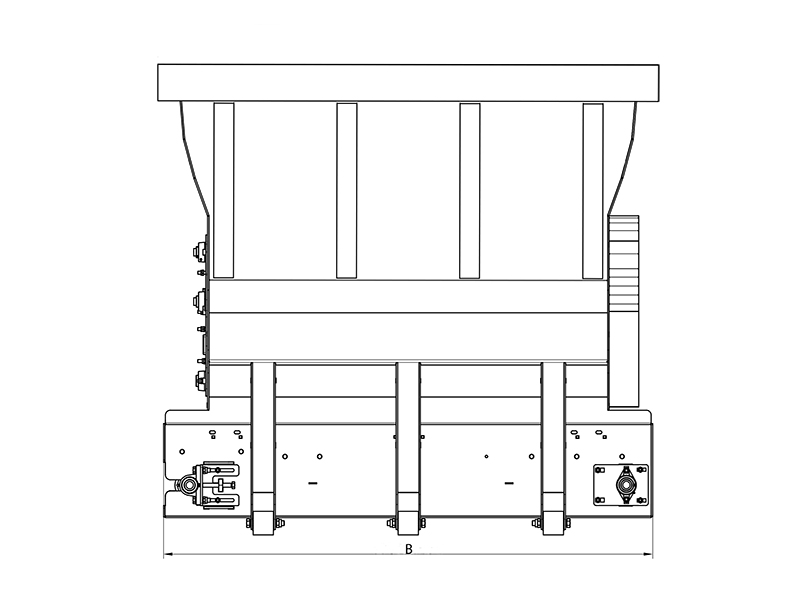

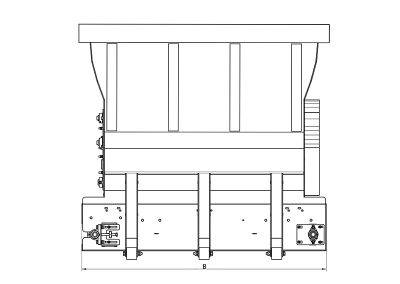

Specification

Width Capacity SAE
Weight
1200 mm
1,00 m³
430 kg
1550 mm
1,40 m³
480 kg
1200 mm 1,30 m³
470 kg
1550 mm
1,70 m³
500 kg
1800 mm
2,00 m³
550 kg
2200 mm
2,15 m³
655 kg
1800 mm
2,60 m³
710 kg

Dosing bucket with conveyor belt is an agricultural equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
