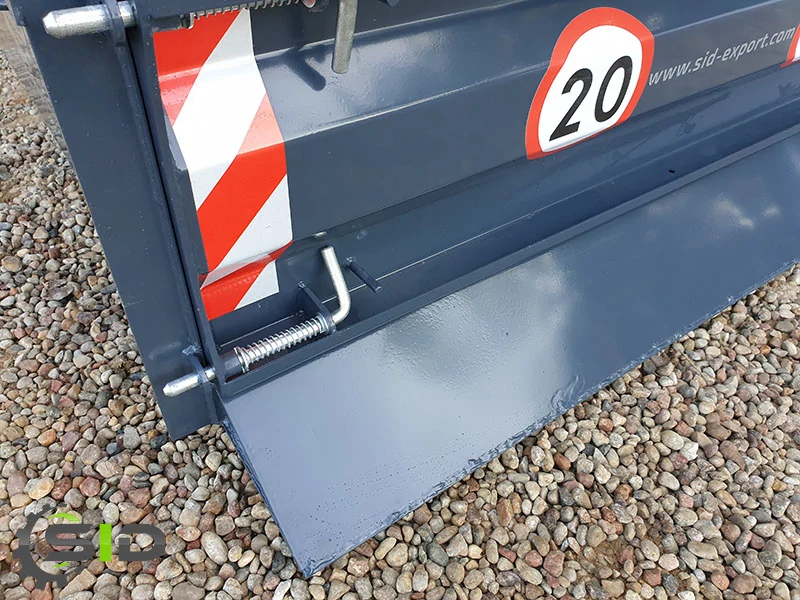

Hydraulic transport box

The transport hydraulic heavy cargo box is intended for agricultural usage and other loose and bulky materials within the farm and on public roads. The load box is hydraulically with tipping mechanism enabling unloading. It is perfect for any work where there is a need to transport various materials. The transport box can be mounted at the rear or front of the tractor on a 3-point hitch linkage or front loader and on loaders. It is a great counterweight stable the work zone.

Hydraulic transport box

Description



The load box is equipped with a hydraulic tipping mechanism enabling unloading. It is perfect for any work where there is a need to transport various types of materials. The hydraulic transport box can be mounted at the rear or front of the tractor on the three-point linkage or front loader and on loaders. It is a great counterweight.

Main product features

Z

Body height at the front: 480 mm.

Z

The height of the crate with a clamping 789 mm.

Z

100 × 15 blade of the box.

Z

Floor thickness 4mm.

Z

The transport box has a three-point linkage as standard.

Z

12-month warranty.

Z

Manual opening, locked with a bolt.

Specifications

Width Depth Capacity Weight
1200 mm
950 mm
0,57 m³
260 kg
1200 mm
1100 mm
0,71 m³
270 kg
1200 mm
1250 mm 0,81 m³
280 kg
1500 mm
950 mm
0,69 m³
282 kg
1500 mm
1100 mm
0,90 m³
290 kg
1500 mm
1250 mm
1,01 m³
305 kg
1800 mm
950 mm
0,87 m³
300 kg
1800 mm
1100 mm
1,07 m³
316 kg
1800 mm
1250 mm
1,25 m³
329 kg
2000 mm
950 mm
0,98 m³
315 kg
2000 mm
1100 mm
1,20 m³
330 kg
2000 mm
1250 mm
1,37 m³
340 kg
2200 mm
950 mm
1,07 m³
330 kg
2200 mm
1100 mm
1,31 m³
350 kg
2200 mm
1250 mm
1,50 m³
360 kg
2400 mm
950 mm
1,18 m³
345 kg
2400 mm
1100 mm
1,44 m³
365 kg
2400 mm
1250 mm
1,64 m³
380 kg
2500 mm
950 mm
1,23 m³
355 kg
2500 mm
1100 mm
1,49 m³
370 kg
2500 mm
1250 mm
1,70 m³
385 kg



We offer a heavy loading platform, sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. It is used in protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
