Volume loader bucket

The volume loader bucket  is a shovel designed for front loaders and loaders. The shovel is used for loading and unloading loose and bulky materials. The bucket is used in both the construction and agricultural sectors.

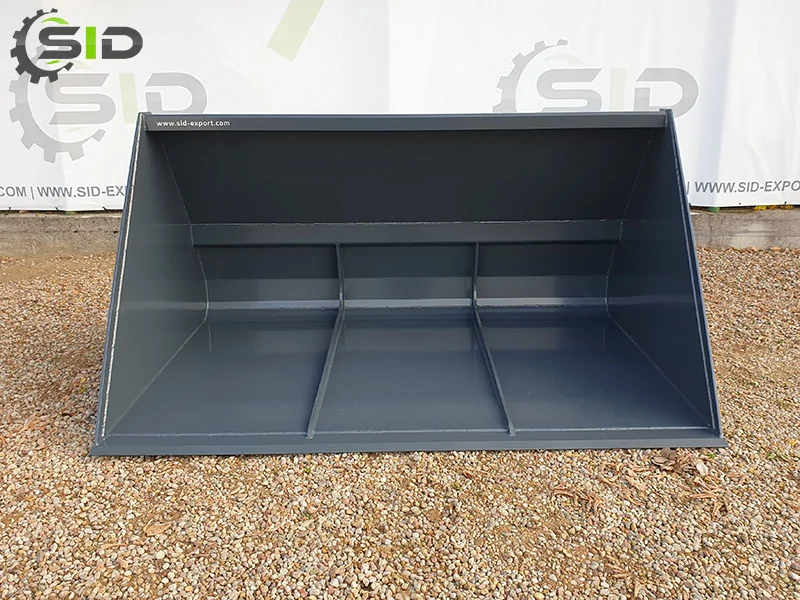

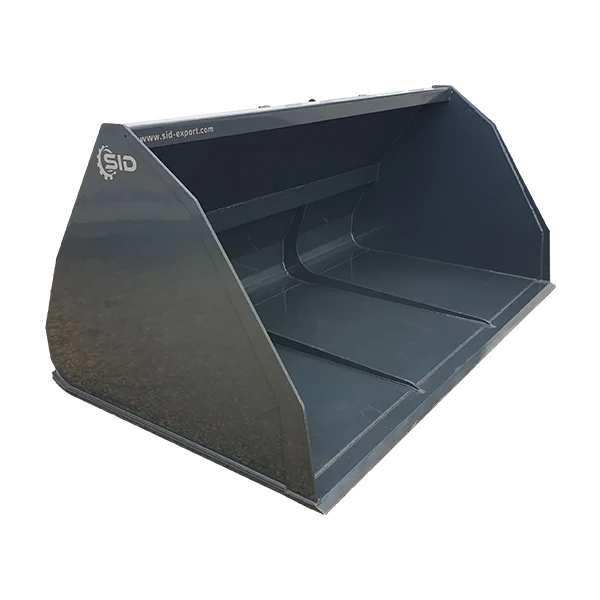

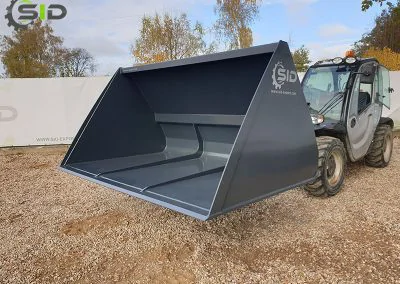

Volume loader bucket

Description

A volumetric bucket is a tool that is designed to speed up the loading and unloading of loose and volumetric goods. The volumetric shovel is made of very high-quality steel, which will allow for long-term and safe operation. In addition, the volumetric spoon has reinforcements that protect it from dents. The sides of the shovel are made of 6 mm thick sheet metal, but they also have pressed and welded side reinforcements made of 10 mm wide steel. The high-volume bucket has a hardox blade.

Main product features

Z

Sheathing 6mm, additional side reinforcement 10mm.

Z

Blade made of Hardox with dimensions of 150 mm x 20 mm.

Z

The standard is euro mount and any other on request, according to customer needs.

Z

It is possible to produce a volumetric bucket for the loader with dimensions according to customer needs. We are able to produce shovels up to a capacity of 20 m3.

Z

12-month warranty.

Specifications

Width Capacity Depth Height Weight
1900 mm
1,0 m³
1082 mm
888 mm 416 kg
2000 mm
1,8 m³
1480 mm
1137 mm 559 kg
2100 mm
 1,0 m³
 1085 mm
875 mm 440 kg
2400 mm
 1,0 m³
 956 mm
806 mm 440 kg
2400 mm
 1,5 m³
 1204 mm
969 mm 526 kg
2400 mm
 2,0 m³
 1408 mm
1090 mm 599 kg
2400 mm
 2,5 m³
 1615 mm
1214 mm 675 kg
2400 mm
 3,0 m³
 1785 mm
1316 mm 743 kg
2400 mm
 3,5 m³
 1885 mm
1395 mm 767 kg
2500 mm
 4,5 m³
 2233 mm
1642 mm 967 kg

The volumetric bucket for loaders is an agricultural equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
