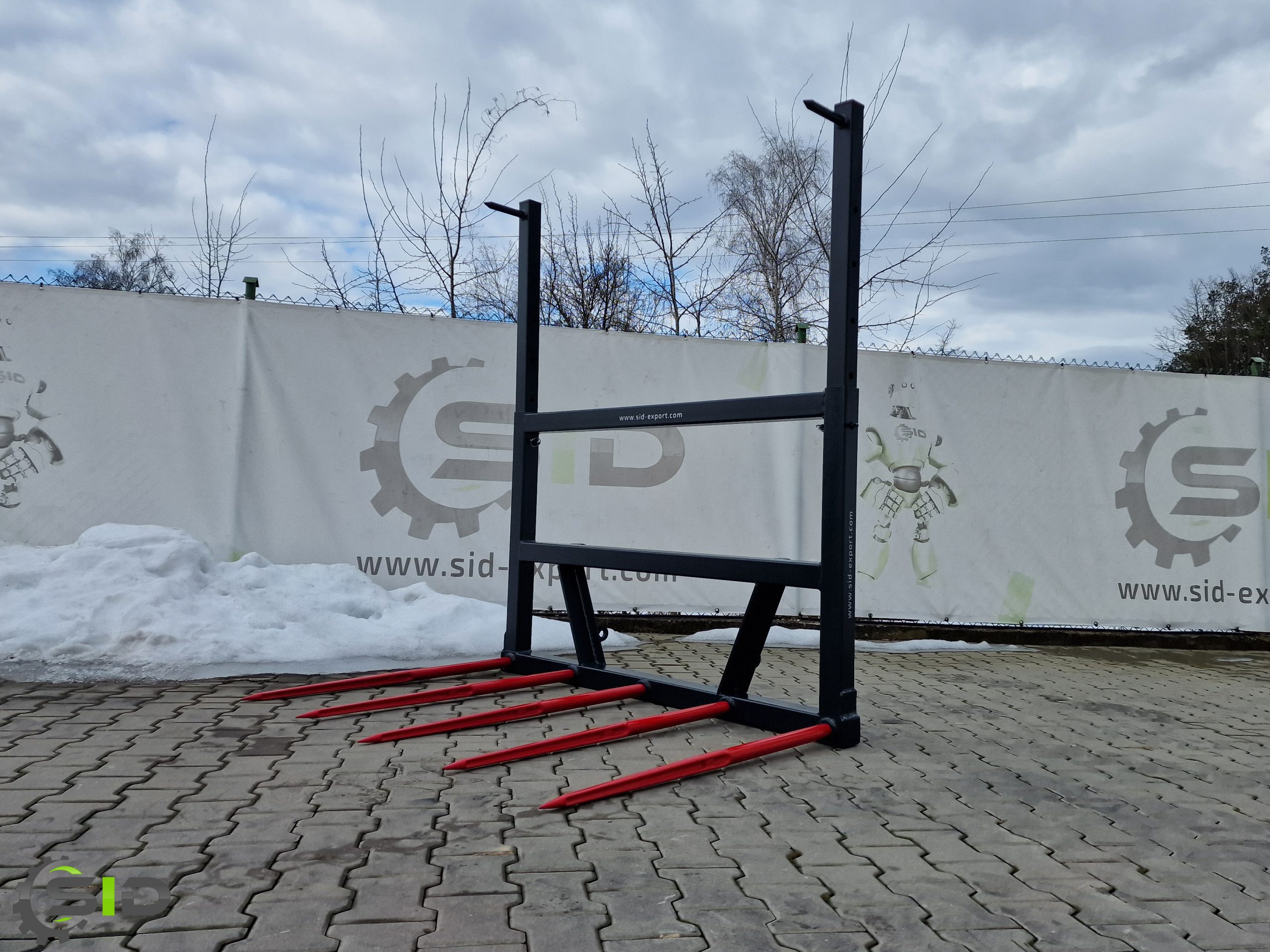

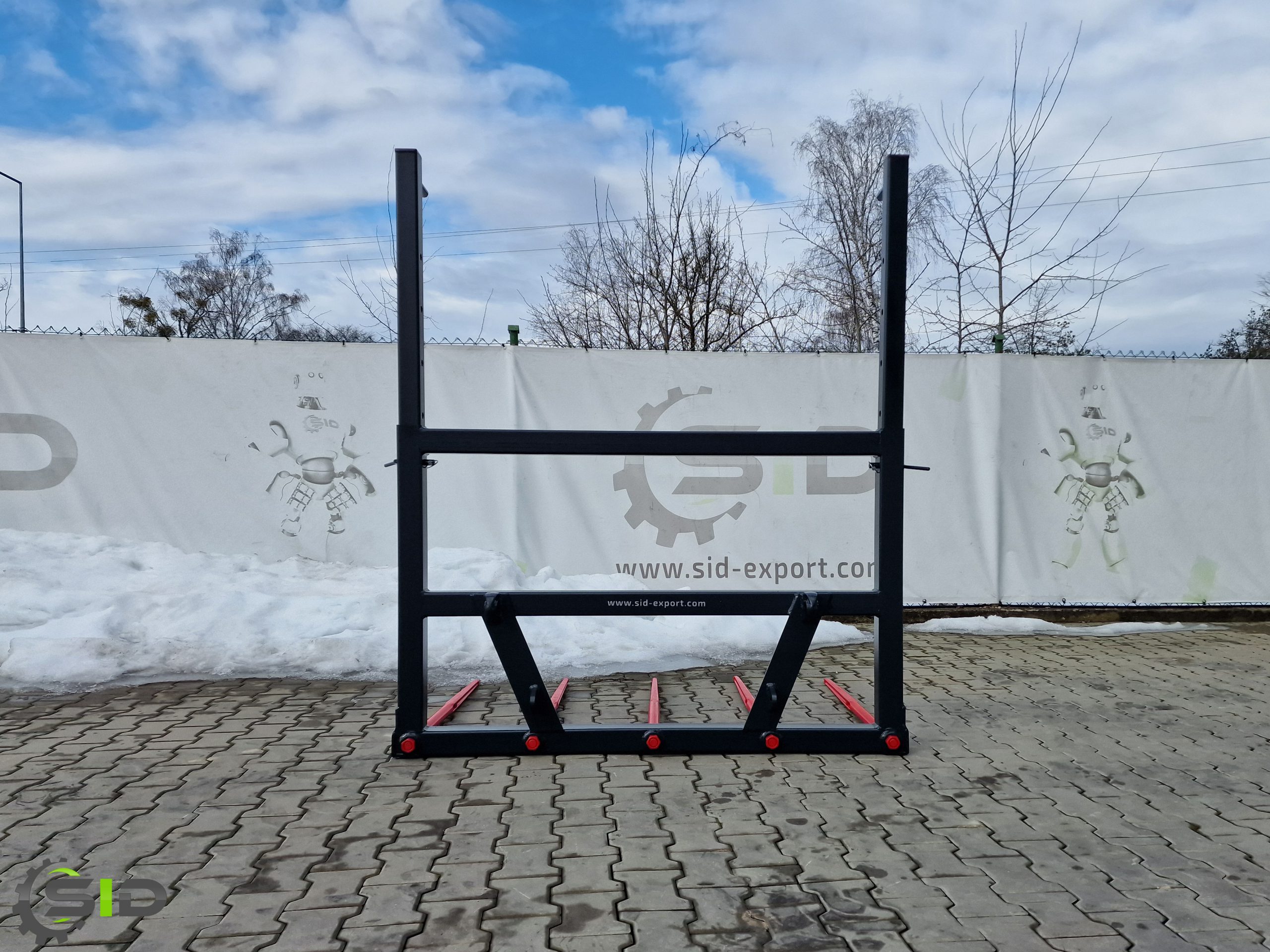

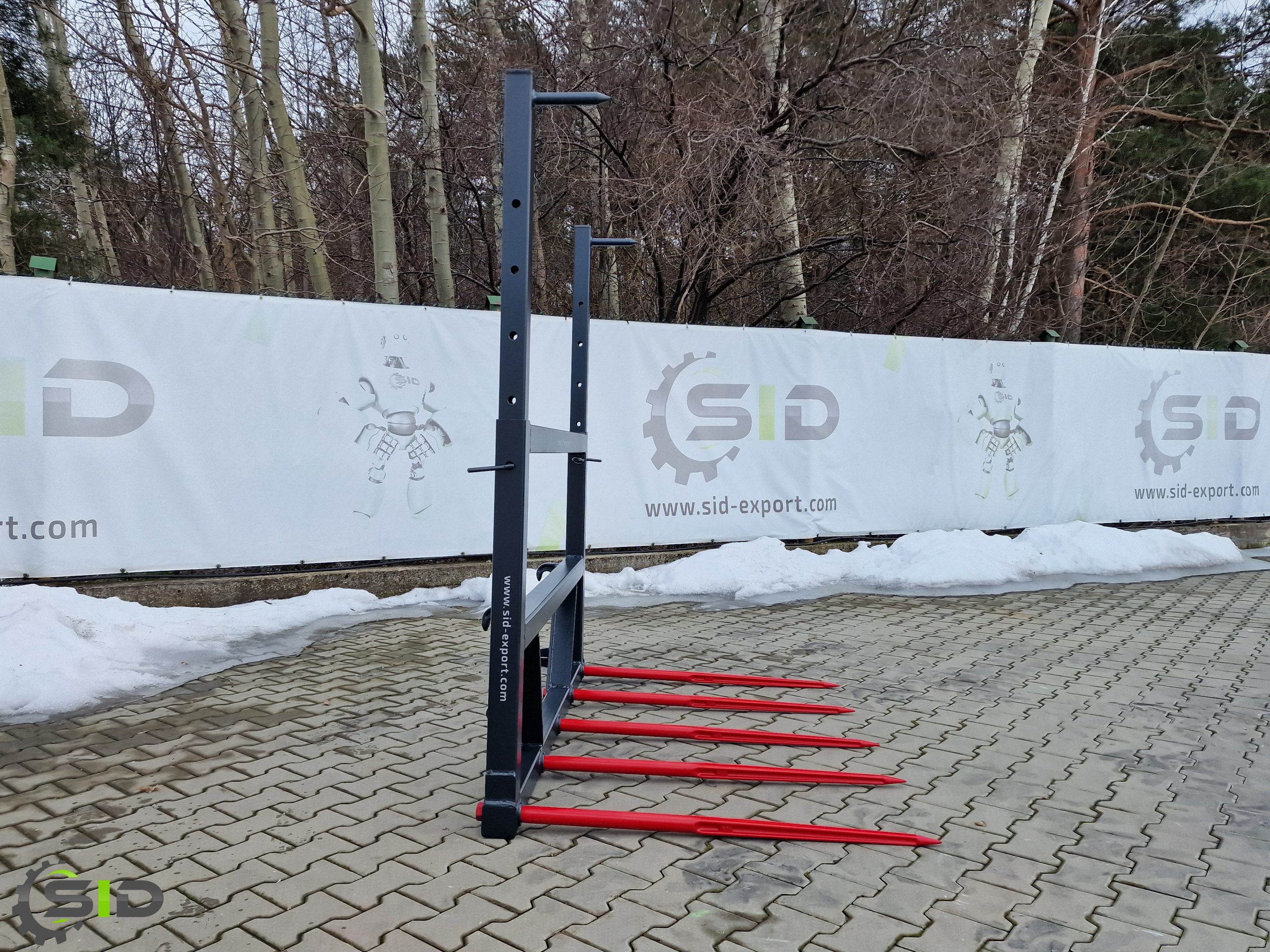

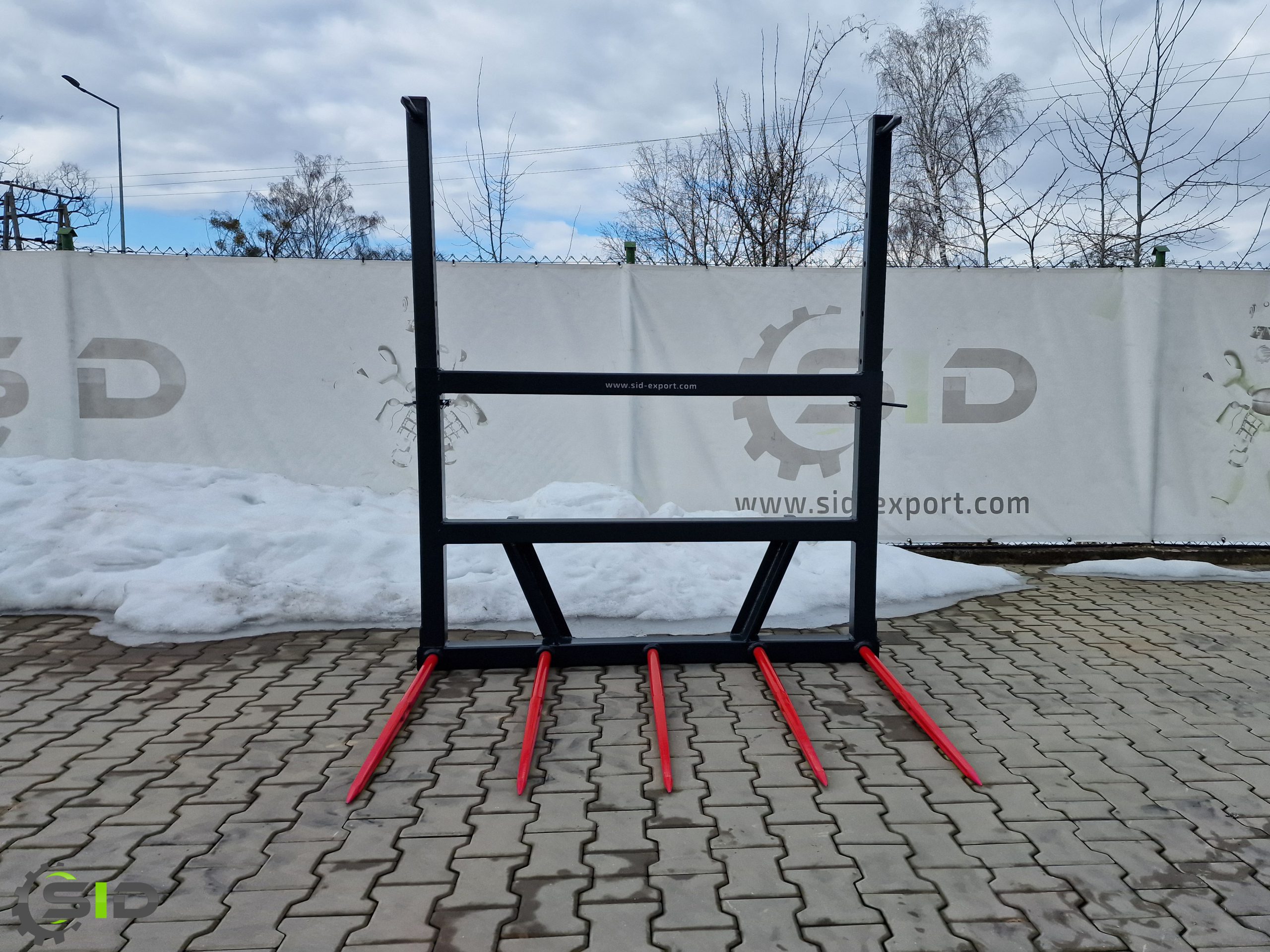

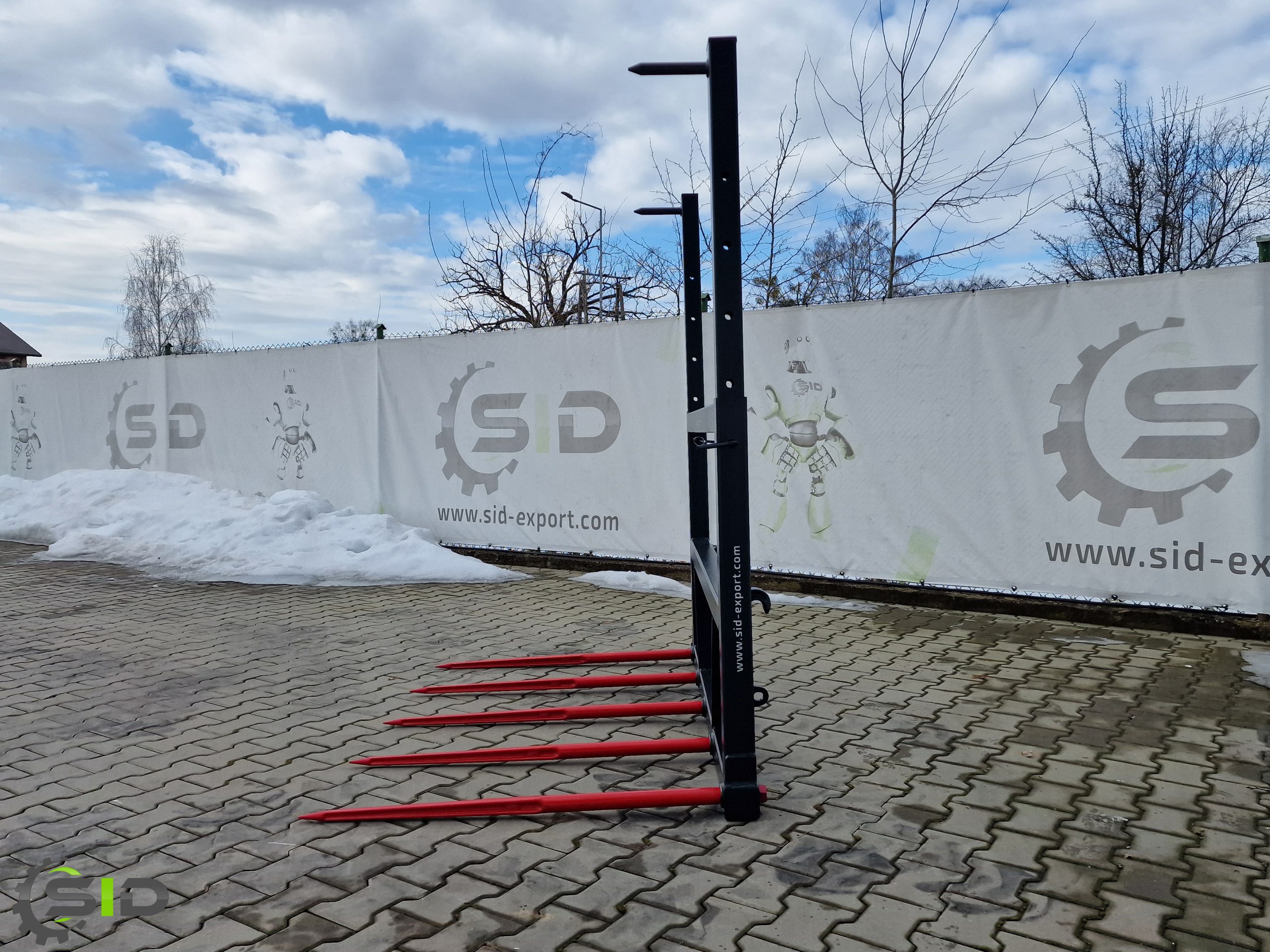

Square bale frame
A rectangular bale frame, adjustable, is an indispensable piece of agricultural equipment designed for efficient transportation and stacking of straw bales, hay, or other agricultural materials. It is a tool designed to increase work efficiency on the farm, enabling the simultaneous transport of several bales, which significantly speeds up and facilitates logistical processes in agriculture.
Description
Bale forks feature:
- 5 robust tines: Safety and stability of bale transport are ensured through the use of five solid tines, which securely hold the bale in place.
- Forged tines with high durability: These tines are characterized by exceptional strength and longevity, and their replacement is simple and quick if necessary.
- Adjustable protective bars: These elements prevent accidental dropping of the bale onto the machine, increasing safety during operation.
- Investment safety: We offer a 12-month warranty on our product.
A full range of equipment for your farm! Don’t forget to check out other products in our offer. Many devices and agricultural accessories such as the straw grapple, bale frame XL, or buck rake.
Discover our entire offer of agricultural machinery! Don’t wait and explore other innovative solutions we have prepared for you. With them, your farm will operate even more efficiently. We invite you to visit our website and familiarize yourself with the full range of products!
Main product features
5 straight teeth L-1200, diameter 42mm, m28x1.5.
The supporting frame is made of 80×80 profile, 4mm thick.
Protective beams made of a 70×70 profile with a thickness of 5mm.
The safety beams can be adjusted.
Water drainage holes.
Pins are galvanized
Welded EURO fixing , other cost additionally.
12-month warranty.

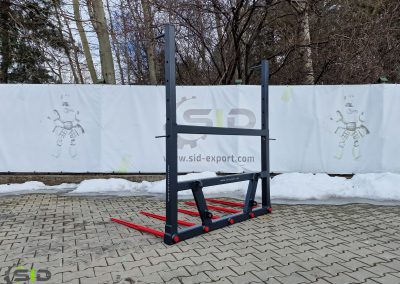

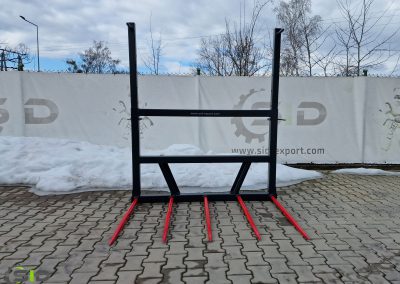

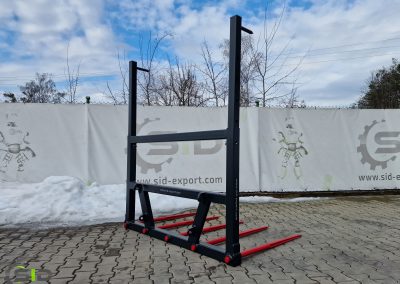

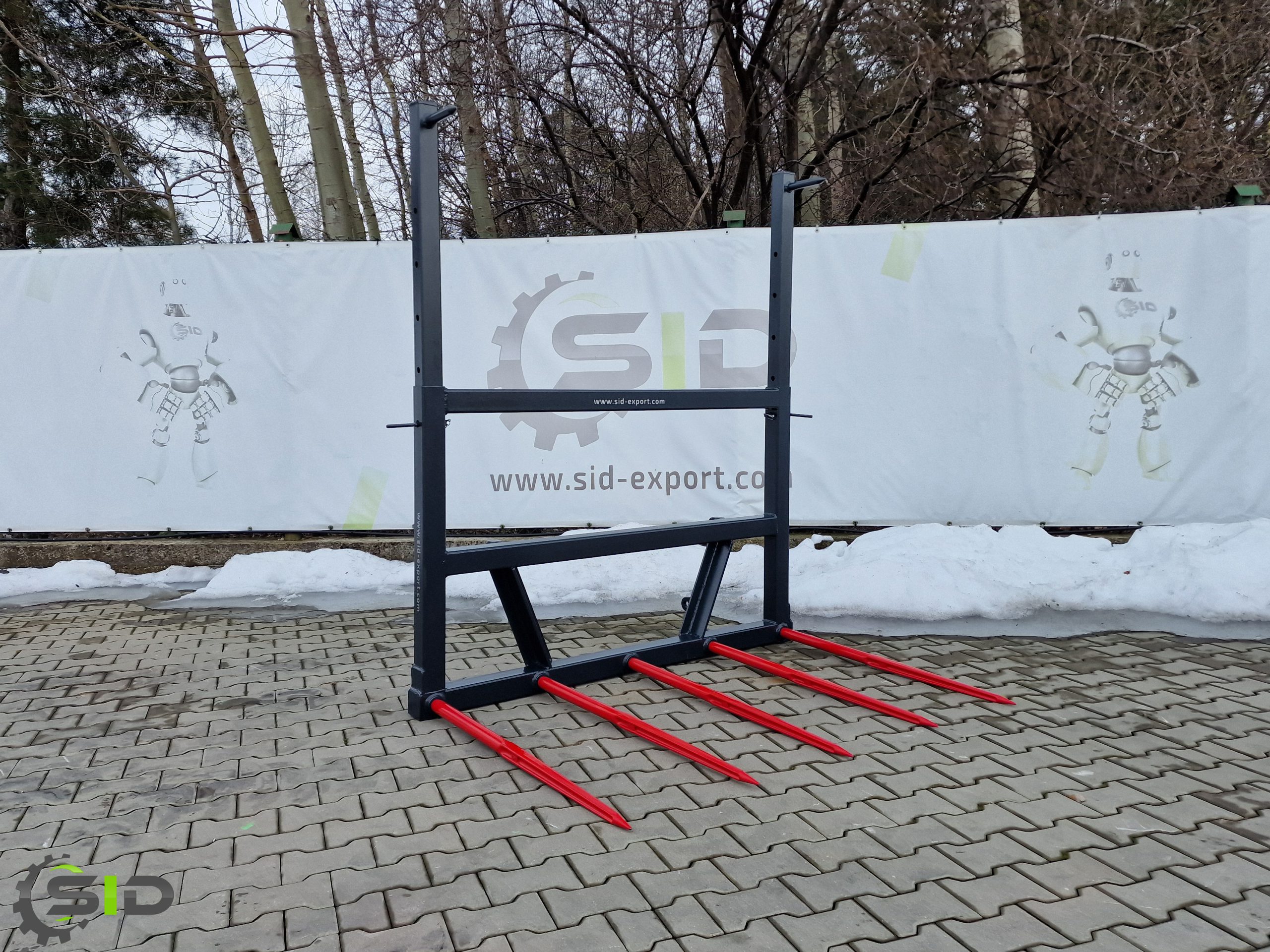

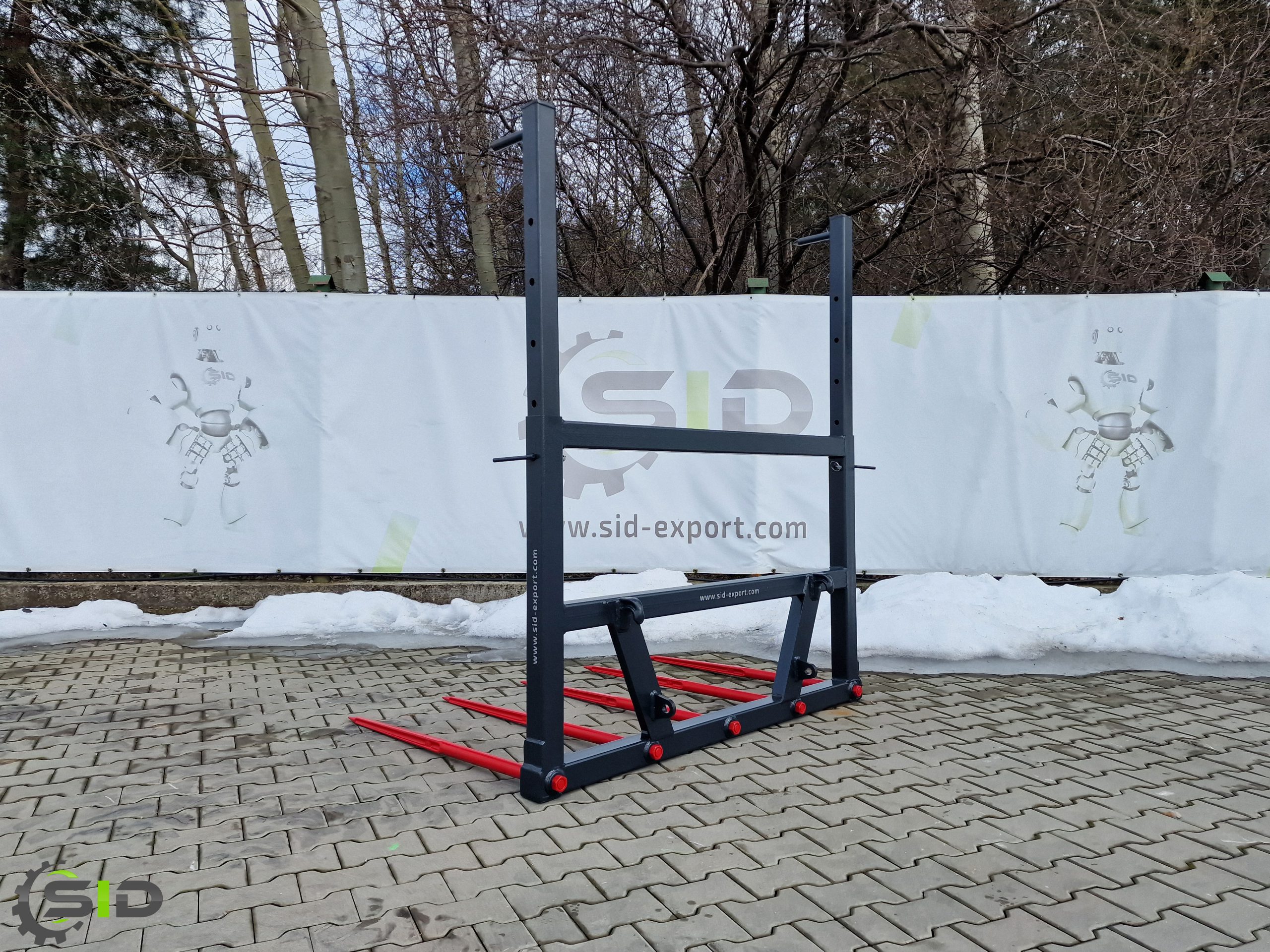

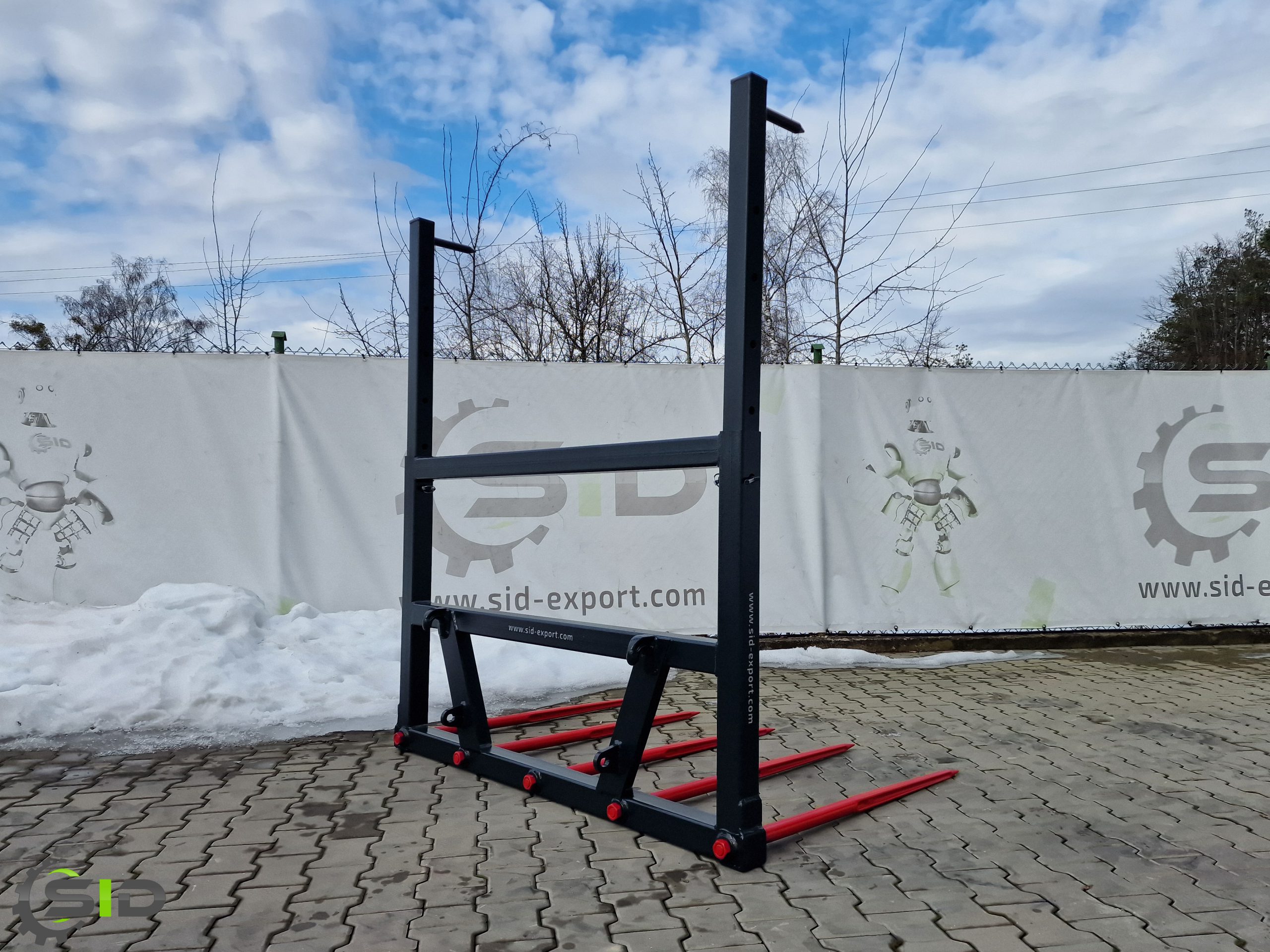

SID Square bale frame
SID Square bale frame
Specification
| Width | Height |
Height (max) | Weight |
| 1700 mm |
1302 mm |
2200 mm |
137 kg |
The adjustable rectangular bale frame we offer is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. It is used in protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID company may introduce changes to the technical specifications without prior notice. Information and graphics on our website are provided for informational purposes only. Certain equipment elements may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID company representative.

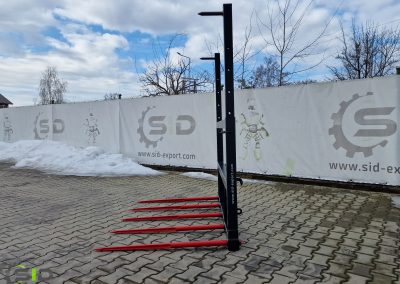

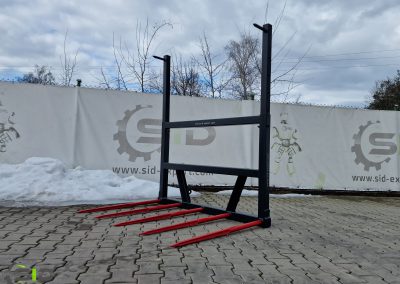

Product Gallery
