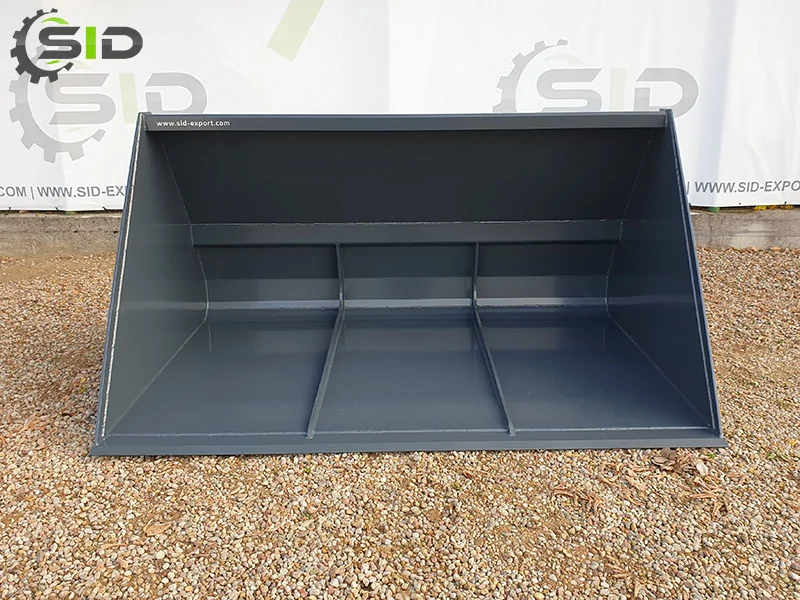

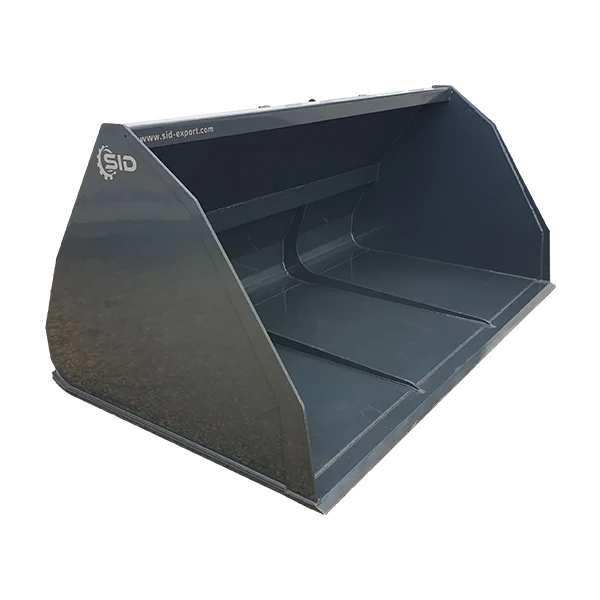

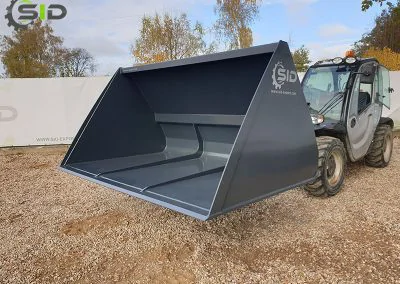

Volume loader bucket
The volume loader bucket is an innovative solution designed for daily work on the farm. This tool is ideal for efficiently loading and unloading various bulk materials. It has been developed to meet the needs of farmers for transporting grain, wood chips, or wood shavings.
Description
The volume loader bucket features elements most susceptible to load and wear (cladding, sides, slides, reinforcements) made from high-strength steel. It is ideal for agricultural farms, grain distribution centers, and anywhere efficient and fast loading of bulk materials is required.
The volume loader bucket future:
- Reliability you can count on: a durable construction using S355 high-strength steel.
- Security for your investment: we offer a 12-month warranty on our product.
- Versatility of use: Perfectly suited for working with various types of bulk materials, from grain to wood shavings.
A full range of equipment for your farm! Don’t forget to check out other products in our offer. Many agricultural devices and accessories such as the volume bucket, manure fork with grapple, or the reinforced universal bucket.
Discover our entire range of agricultural machinery! Don’t wait and explore other innovative solutions we have prepared for you. With them, your farm will operate even more efficiently. We invite you to visit our website and familiarize yourself with the full range of products!
Main product features
Sheathing 6mm, additional side reinforcement 10mm.
Blade made of Hardox with dimensions of 150 mm x 20 mm.
The standard is euro mount and any other on request, according to customer needs.
It is possible to produce a volumetric bucket for the loader with dimensions according to customer needs. We are able to produce shovels up to a capacity of 20 m3.
12-month warranty.
SID Volume loader bucket – specification
SID Volume loader bucket – specification
Specifications
| Width | Capacity SAE |
Depth (B) |
Height (H) |
Weight |
| 1900 mm |
1,0 m³ |
1082 mm |
888 mm | 416 kg |
| 2000 mm |
1,8 m³ |
1480 mm |
1137 mm | 559 kg |
| 2100 mm |
1,0 m³ |
1085 mm |
875 mm | 440 kg |
| 2400 mm |
1,0 m³ |
956 mm |
806 mm | 440 kg |
| 2400 mm |
1,5 m³ |
1204 mm |
969 mm | 526 kg |
| 2400 mm |
2,0 m³ |
1408 mm |
1090 mm | 599 kg |
| 2400 mm |
2,5 m³ |
1615 mm |
1214 mm | 675 kg |
| 2400 mm |
3,0 m³ |
1785 mm |
1316 mm | 743 kg |
| 2400 mm |
3,5 m³ |
1885 mm |
1395 mm | 767 kg |
| 2500 mm |
4,5 m³ |
2233 mm |
1642 mm | 967 kg |
The volumetric bucket for loaders is an agricultural equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID company may introduce changes to the technical specifications without prior notice. Information and graphics on our website are provided for informational purposes only. Certain equipment elements may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID company representative.
