Wood Grapple L

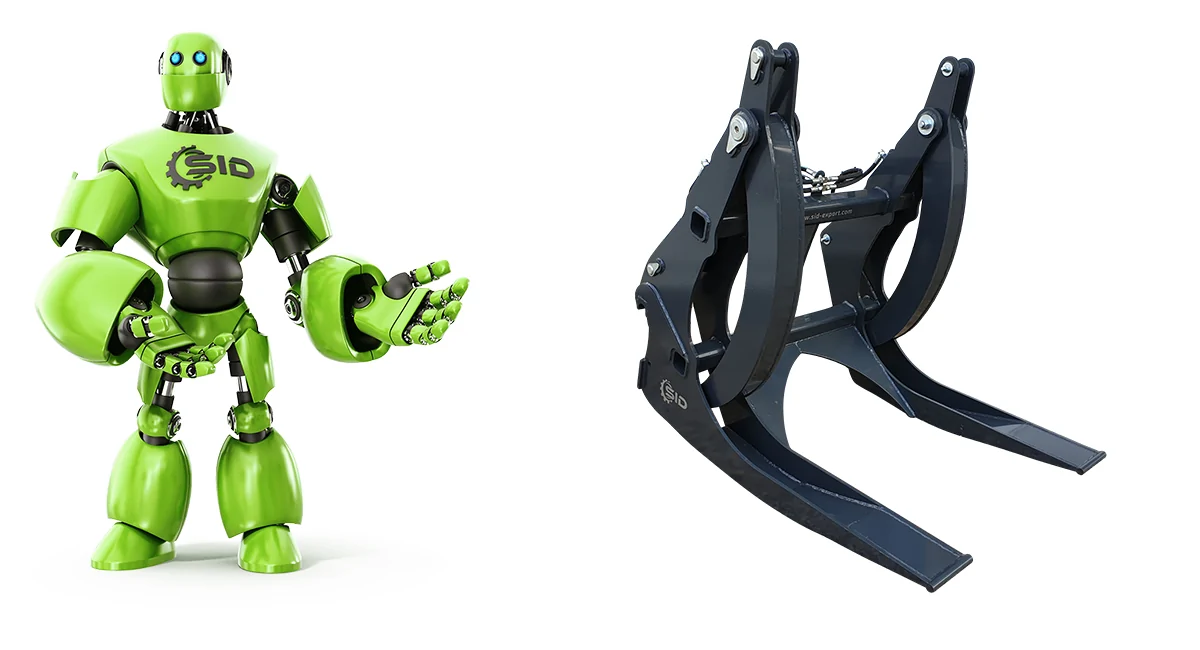

Wood grapple L – a particularly useful tool during forestry work, but also practical in woodworking plants such as sawmills. It is mainly used for transport, loading and unloading of timber.
Description
The wood grapple working very well with front-loaders, loaders and mini-loaders. We offer a wide range of grippers. The smallest models can load logs 95 mm in diameter and have a span of 660 mm, which will make it possible to gather the smallest logs and transport them to their destination. The largest versions we offer can fit a log 1400 mm in diameter and have an arm span of 3012 mm. The log gripper has a solid construction, made of high-quality metals, so it is suitable for heavy-duty work. It is equipped with 1 or 2 actuators, which provide a sure grip and also make it impossible for timber to move.
Main product features
The structural frame is reinforced by a 100 × 100 welded profile with 10 mm reinforcements.
Height 1582 mm.
Span 1536 mm.
Depth 1540 mm.
Movable places are lubricated.
The standard is euro mount, each other on request according to customer needs.
12-month warranty.
A solid and durable structure made of high-quality steel S355.

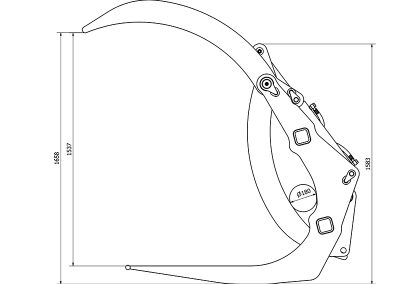

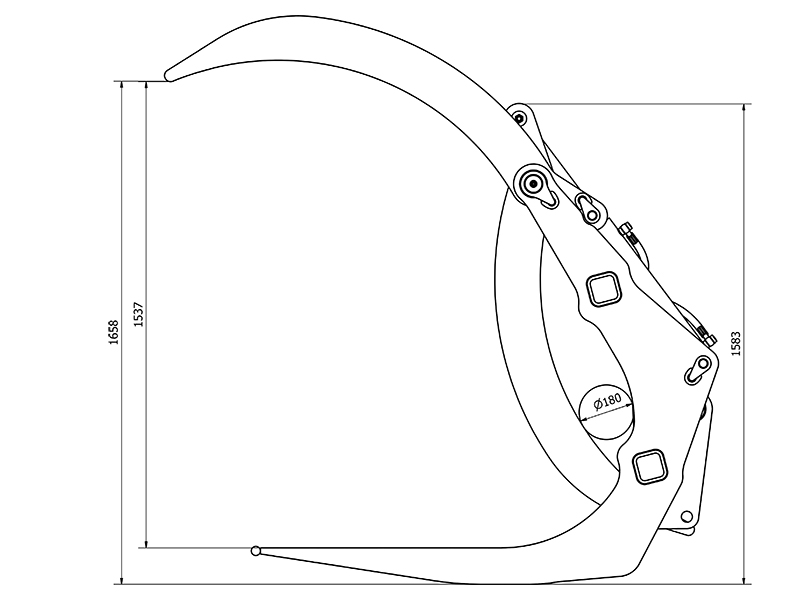

Specification
| Width | Breadth | Weight |
| 1370 mm |
1537 mm |
572 kg |
Wood grapple L is a forestry equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
