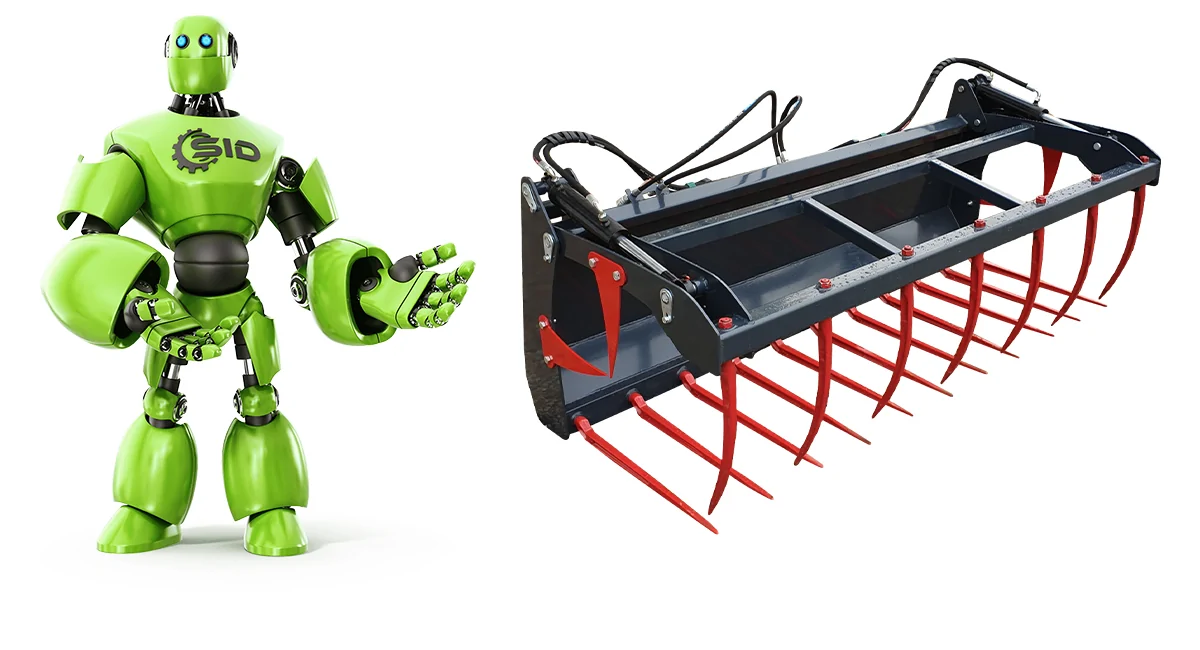

Manure fork with grapple

Crocodile manure fork with grapple –  is adapted to transport manure, maize or silage.

Manure fork with grapple

Description

In order to obtain the appropriate compression of the material, it is equipped with a powerful hydraulic cylinder. Full back wall prevents material from falling out during transport. A solid and durable structure ensures safe and long use.

Main product features

Z

Sheathing 5 mm, S355 steel.

Z

Reinforcements and main fasteners 8 mm.

Z

Forged, screwed teeth seated in conical sleeves welded into a profile 80x80x5-6 mm.

Z

Hydraulic conduits, double steel braid DN10 2SN.

Z

The 220x36x73 cylinders are made of the best components, the piston rod does not corrode even during long periods of non-use.

Z

Pins are made of grade C45 steel, galvanized.

Z

Movable places are lubricated.

Z

The standard is euro mount, each other on request according to customer needs.

Z

It is possible to produce a crocodile with dimensions according to the client's needs.

Z

12-month warranty.

Specification

Width Capacity Weight
1000 mm
0,46 m³
138 kg
1200 mm
0,55 m³ 164 kg
1400 mm 0,64 m³ 190 kg
1600 mm 0,74 m³ 242 kg
2000 mm 0,92 m³ 294 kg
2200 mm 1,01 m³ 320 kg

The crocodile manure fork with grapple we offer is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
