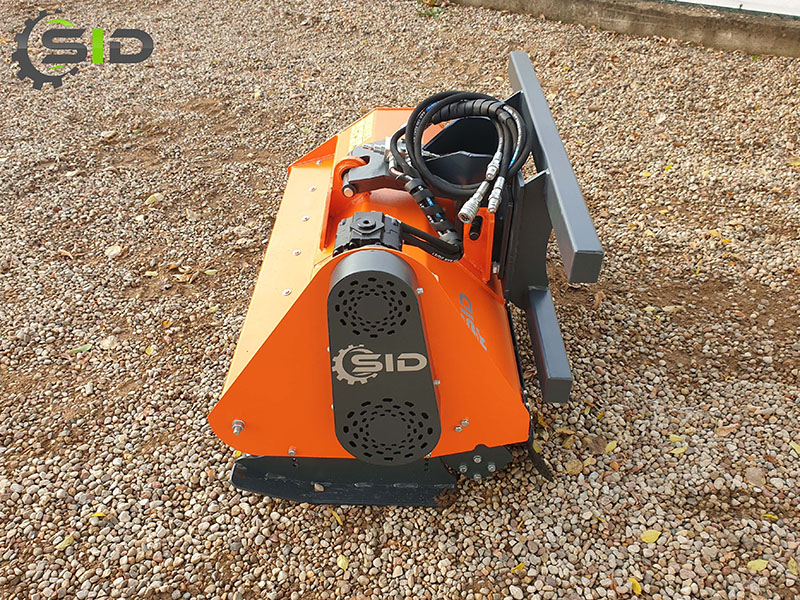

Hydraulic flail mower
The hydraulic flail mower is an essential tool in almost every municipal management enterprise or urban green maintenance department. It utilizes hydraulics to drive the flails, which is more efficient and provides greater power than traditional drive systems. Thanks to its floating frame, it is ideal for use on uneven terrain where standard mowers may struggle with effective mowing. Its design allows it to handle thicker branches and tough plants, making it suitable for work in forests and on wastelands.
Description
The hydraulic flail mower is equipped with a Casappa hydraulic motor, ensuring efficiency and reliability. The adjustable working height allows adaptation to various terrain conditions. Its low-profile housing enables operation in hard-to-reach areas, such as under tree canopies. The use of galvanized C45 pins and FAG bearings guarantees durability and wear resistance. The hydraulic flail mower is powered hydraulically by two hoses plus an outlet (a third hose for leakage/free flow is required). The mounting is customized according to the client’s needs, and if the carrier has been modified, an adapter can be manufactured to the buyer’s dimensions. It is also possible to replace the hammers with “Y” knives.
The hydraulic flail mower features:
- Construction from S355 Grade Steel: The entire structure is made from S355 grade steel, ensuring exceptional strength and long product life.
- 12-Month Warranty: We demonstrate our confidence in the quality of our products by offering a 12-month warranty, providing our customers with additional peace of mind.
- Floating Frame: Ensures precise terrain following.
A complete range of municipal equipment! Don’t forget to check out other products in our range. We offer many municipal devices and accessories such as a sweeper PTO, snow plough, and brush sweeper.
Discover our full range of municipal machines! Don’t wait, and explore the other innovative solutions we have prepared for you. With these, your enterprise will operate even more efficiently. We invite you to visit our website and explore the full range of products!
Main product features
Low housing on both sides, which allows work under the treetops.
Belt tensioner.
Floating frame.
Interchangeable protective chains mounted in the comb.
Tilting tailgate, rubber-covered with fixed opening.
Galvanised C45 pins.
FAG main shaft bearings.
Oil Flow Regulator - Optional Feature.
12-month warranty.
Italian Casappa hydraulic motor.
Cross (safety) valve.
Belt transmission cooling system.
Adjustable working height 50 mm - 130 mm.
8.5 cm wide flail hammers, hammer weight 0.8 kg.
Adjustable terrain copying roller.
Adjustable skids.
Powder coating.
Bolted Mounting - Type WD.
SID Hydraulic flail mower – specification specification
SID Hydraulic flail mower
Specification
| Width | Numbers hammers |
Weight |
| 1250 mm | 16 pc. |
350 kg |
| 1450 mm | 20 pc. |
365 kg |
| 1650 mm | 20 pc. |
380 kg |
| 1850 mm | 24 pc. |
440 kg |
The hydraulic flail mower is a municipal equipment that is shot blasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID company may make changes to the technical specifications without prior notice. The information and graphics on our website are for informational purposes only. Certain equipment elements may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID company representative.
Product Gallery
Video presentation
The SID company presents hydraulic flail mower. It is an indispensable tool in almost every municipal management or urban greening company.
Floating frame.
Low housing on both sides.
8.5 cm wide flail hammers, hammer weight 0.8 kg.
