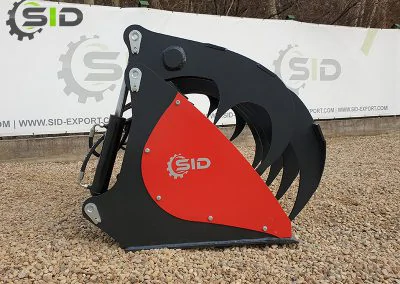

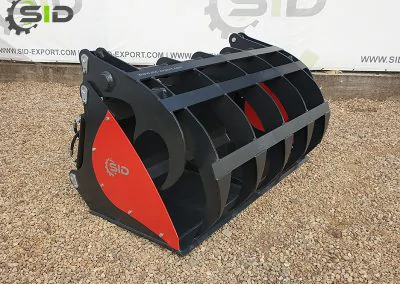

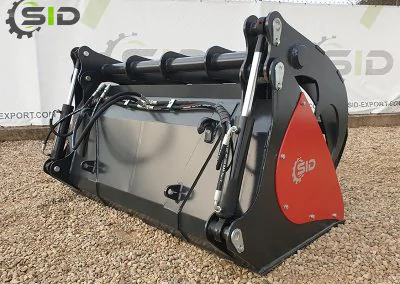

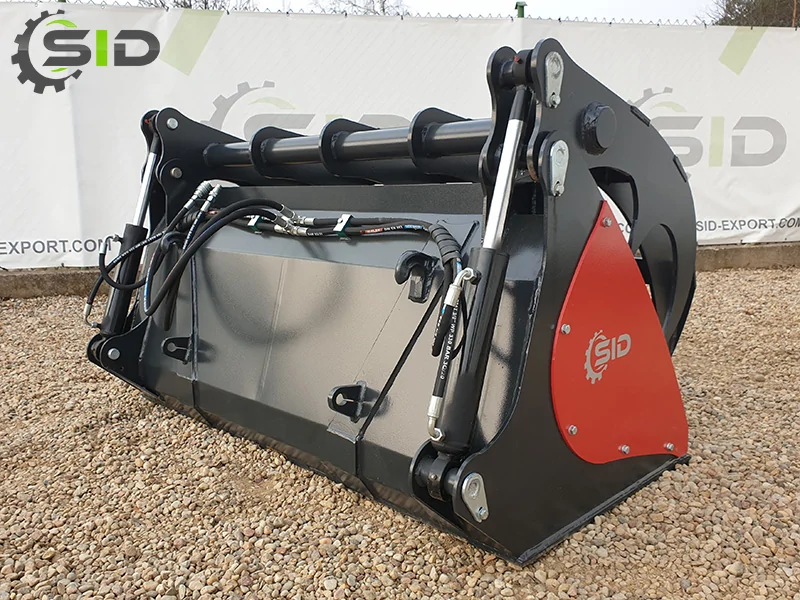

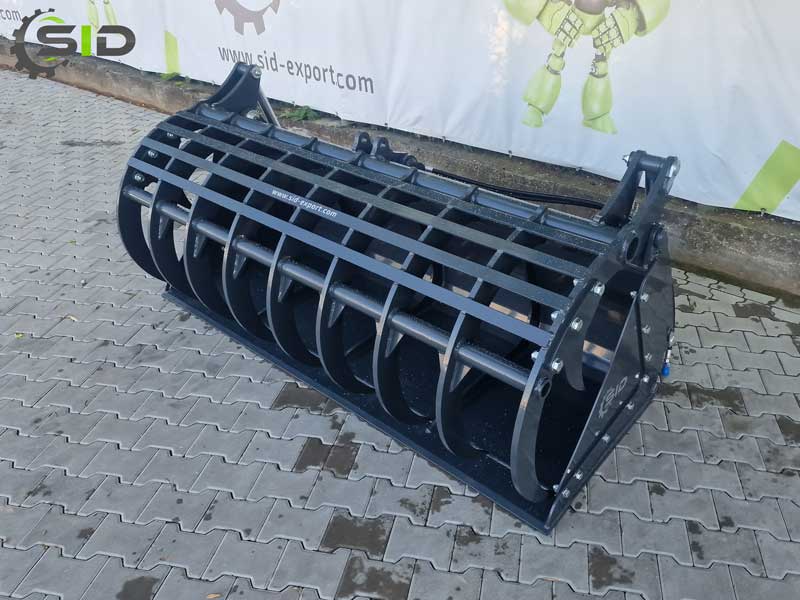

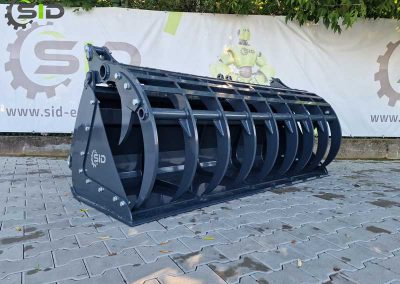

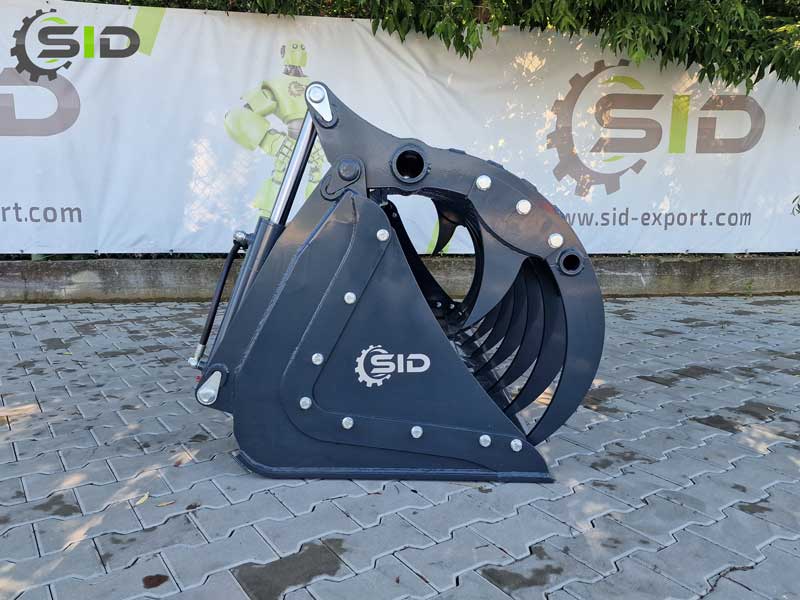

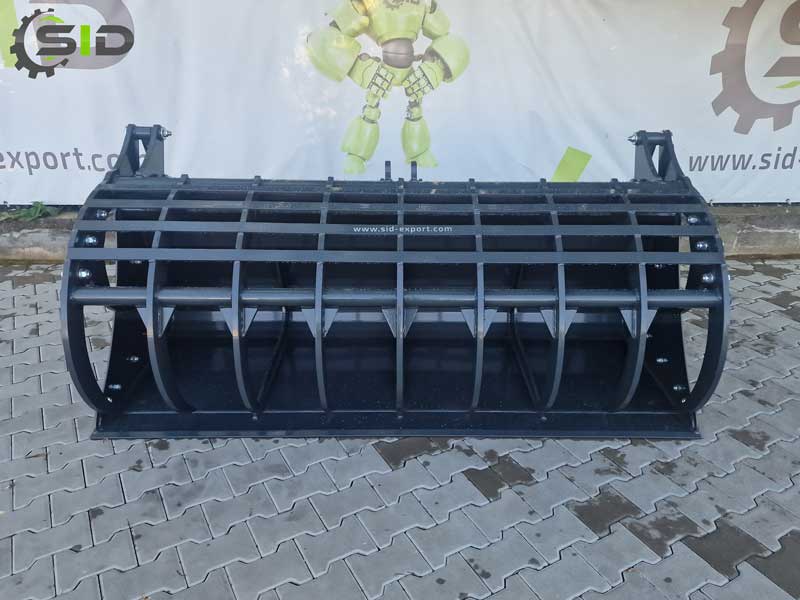

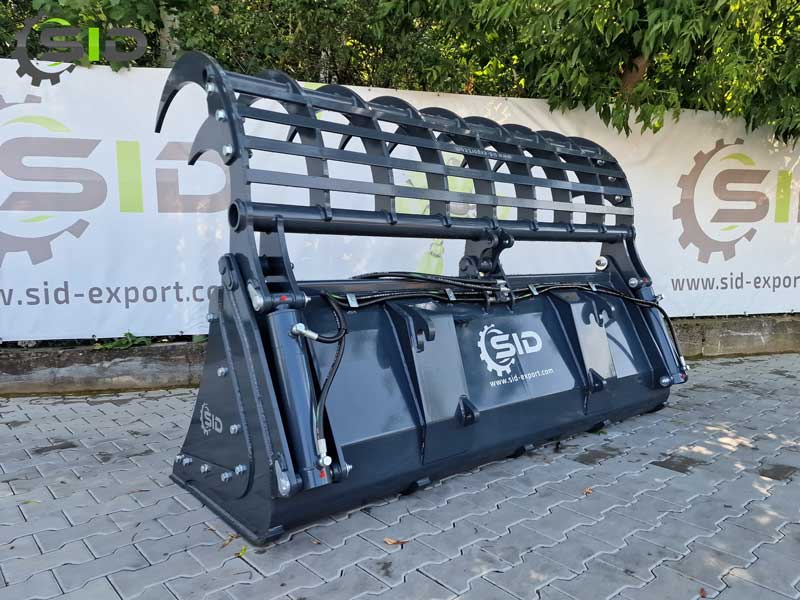

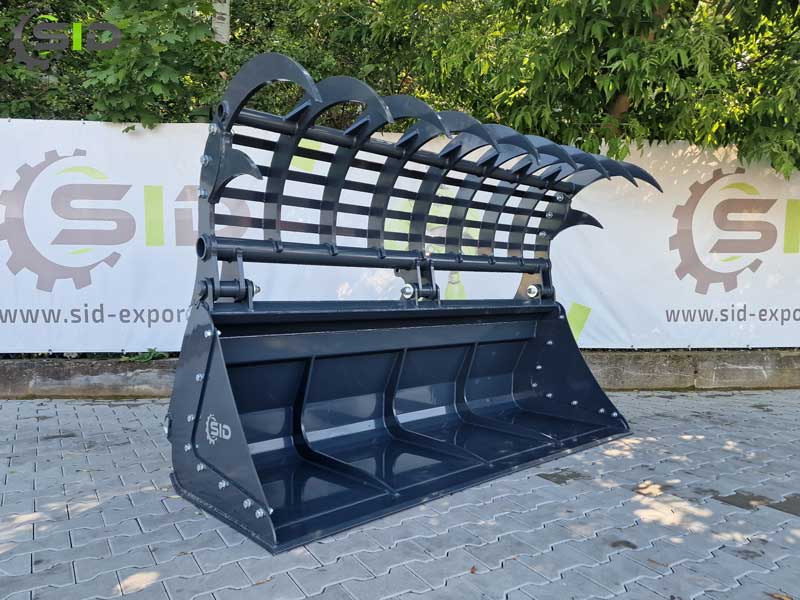

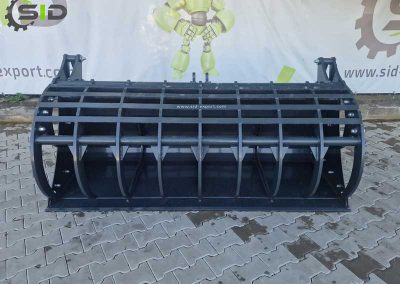

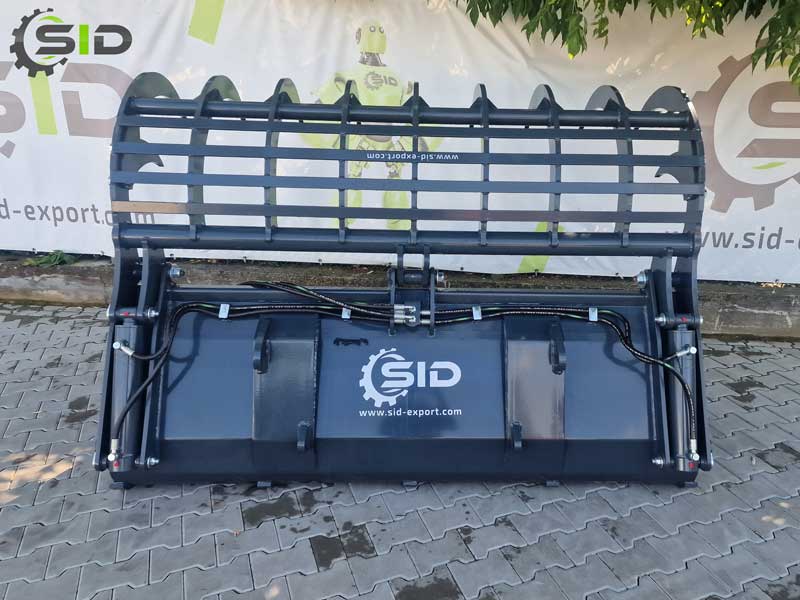

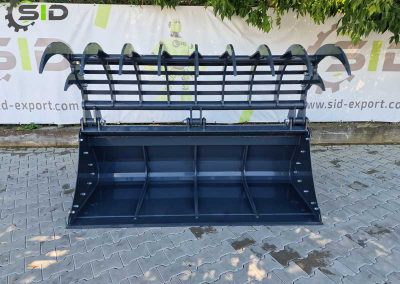

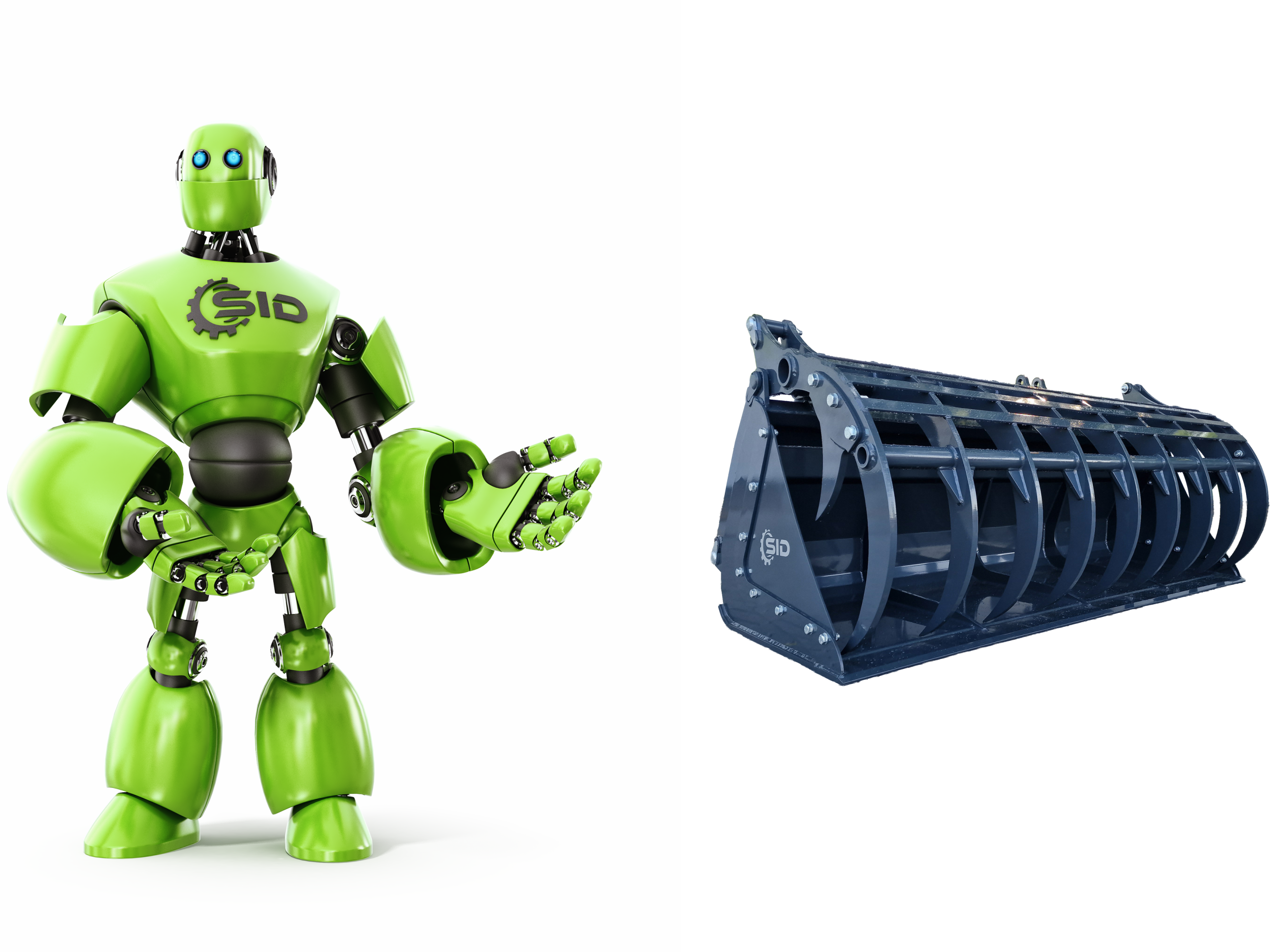

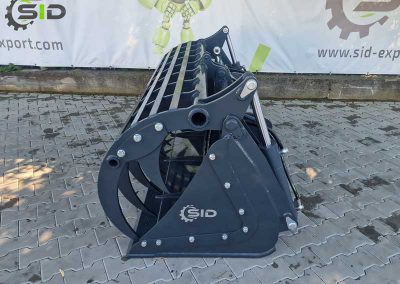

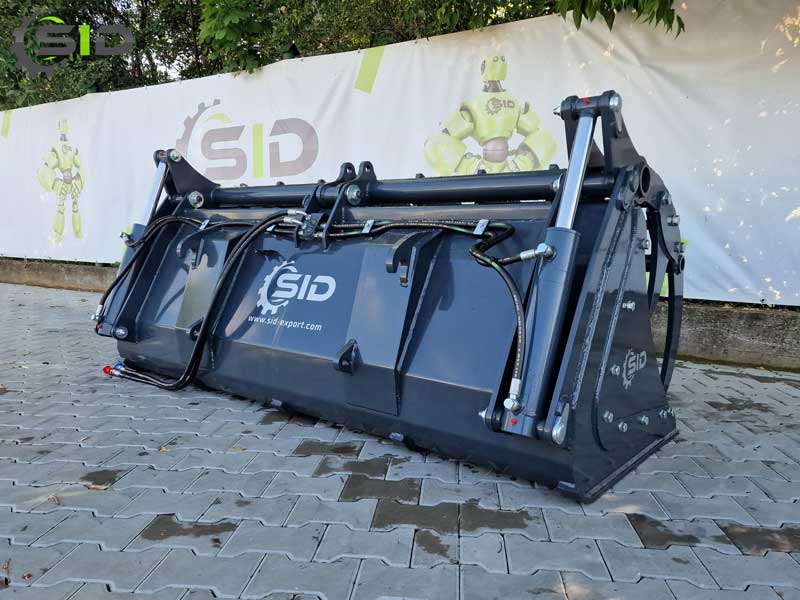

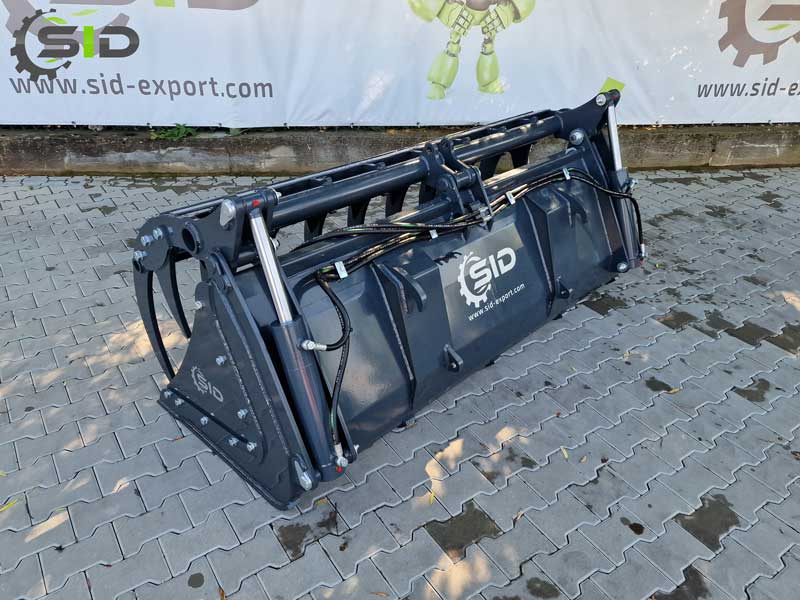

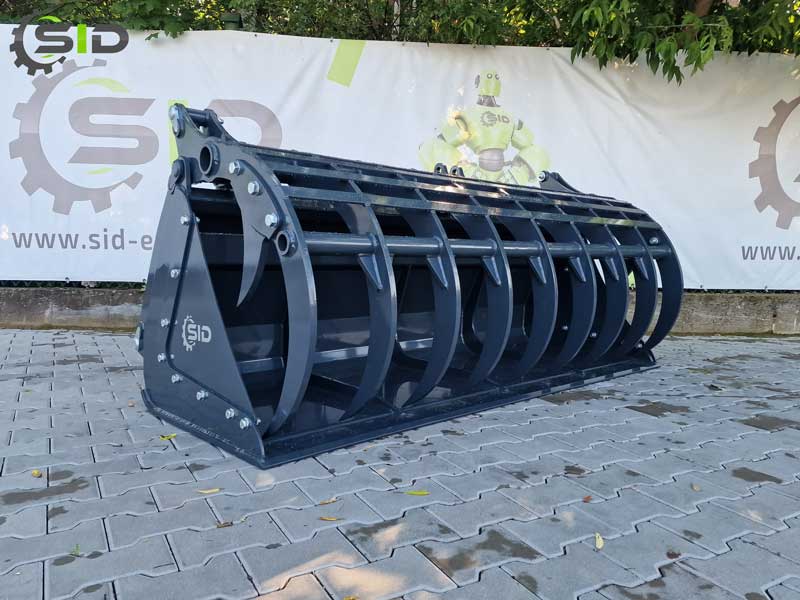

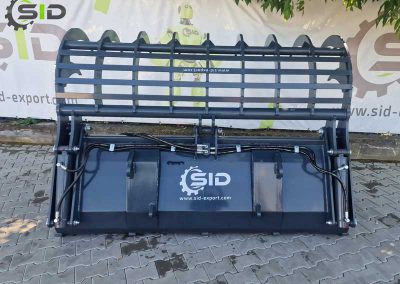

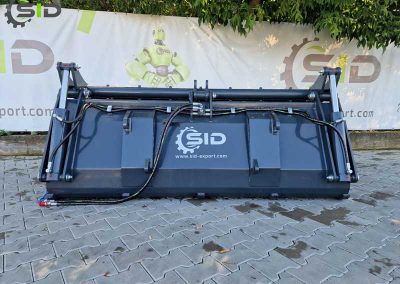

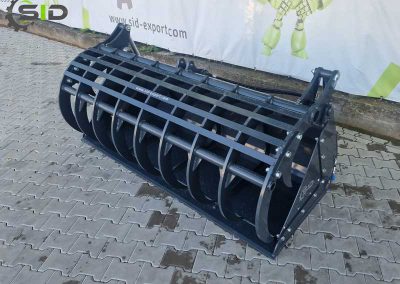

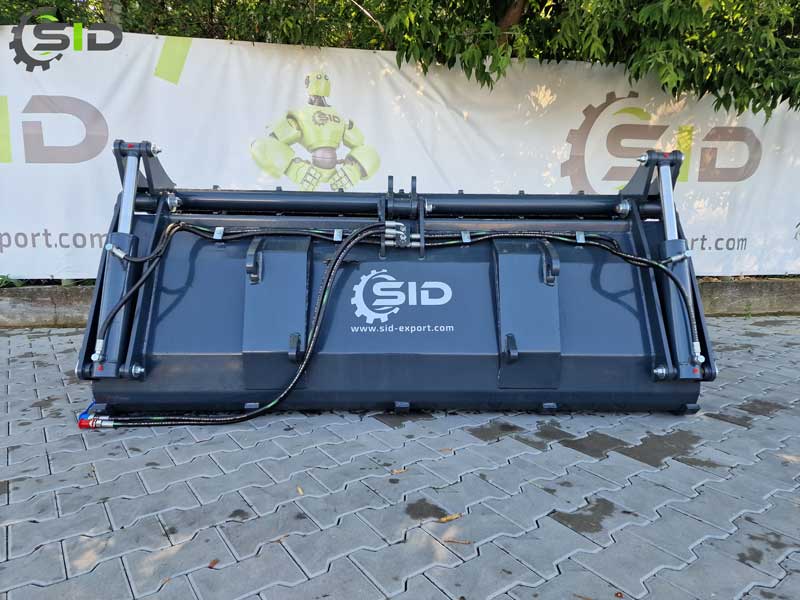

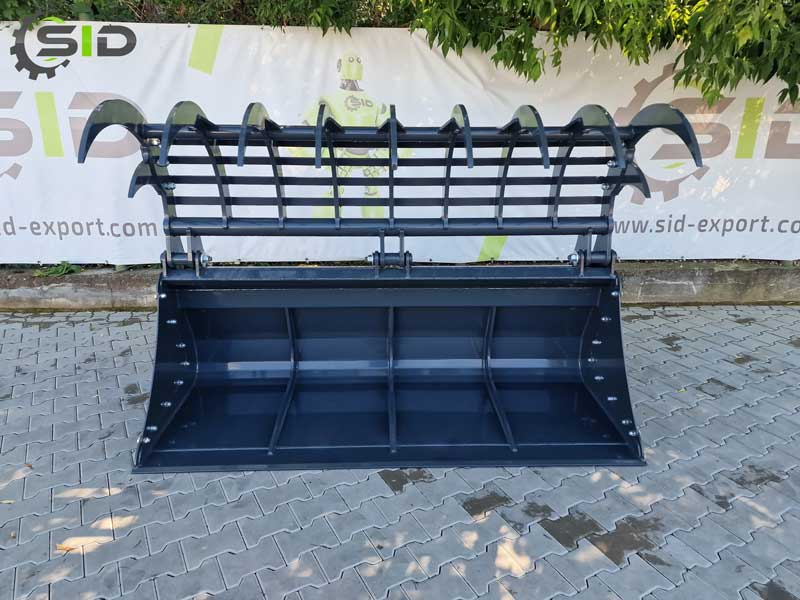

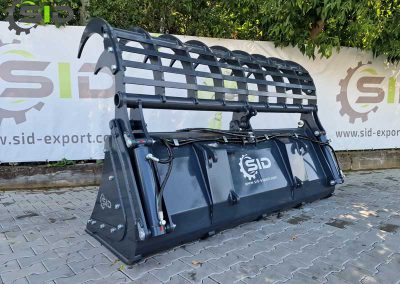

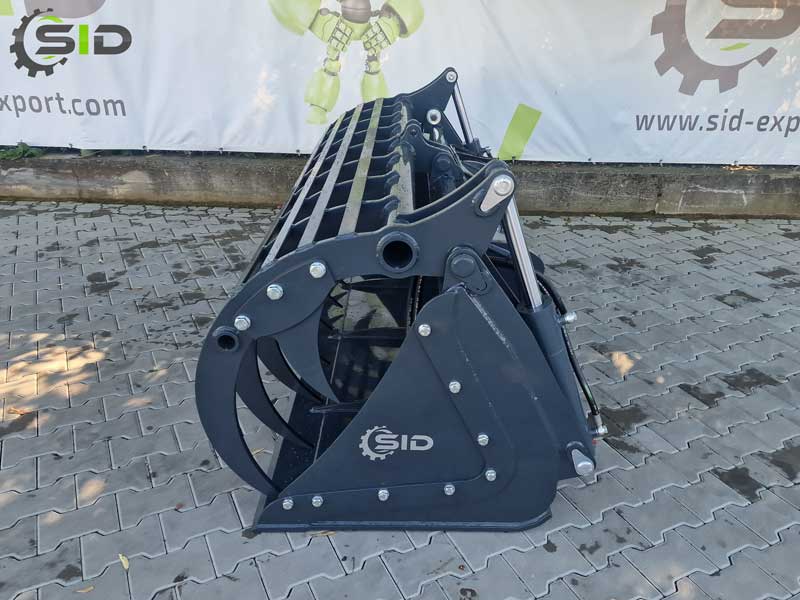

Grab bucket burned tines
The Grab bucket burned tines is a tool that significantly facilitates work in agriculture. Designed with efficiency and versatility in mind, it is ideal for loading, unloading, and transporting a variety of agricultural materials, such as grains, fertilizers, or feed. Its unique design allows for quick and hassle-free manipulation of loads, making it indispensable in any farming operation.
Description
The Grab bucket burned tines has been created to achieve greater efficiency and speed of work. Made from high-quality steel, it is characterized by high resistance to damage. The ability to detach the sides allows for easier transport of wooden material such as branches, etc. Thanks to the use of HARDOX wear-resistant steel blades and the ability to lubricate moving parts on bushings, the machine is protected against rapid wear. The grab bucket is equipped with two powerful cylinders that ensure a very strong and reliable jaw clamp. The unique tooth design provides excellent penetration into various materials, facilitating their capture and retention, which is particularly useful when working with materials of uneven shapes. Additional reinforcements at critical points of the bucket increase its durability and resistance to deformation when working with heavy materials.
The Grab buucket burned tines features:
- Reliability you can count on: durable construction using S355 steel with increased strength.
- Security for your investment: we offer a 12-month warranty on our product.
A full range of equipment for your farm! Don’t forget to check out other products from our offer. Many agricultural devices and accessories such as the manure fork with grapple XXL, the grab bucket forget tines s, or the reinforced universal bucket.
Discover our entire range of agricultural machinery! Don’t wait and explore other innovative solutions we have prepared for you. With them, your farm will operate even more efficiently. We invite you to visit our website and familiarize yourself with the full range of products!
Main product features
Internal reinforcements 15 mm
Sheathing 8 mm steel S355.
burnt teeth - 20mm.
Blade size 150 × 15 Hardox wear resistant steel.
Cylinders with a diameter of 93 mm.
2SN cables 330 bar.
Moving places lubricated sliding sleeves.
12-month warranty.
The standard is euro mount, each other on request, according to the client's needs.
SID Grab bucket burned tines – specification
SID Grab bucket burned tines
Specifications
| Width | Capacity | Number of tines |
Weight |
| 1000 mm | 0,53 m³ | 4 pc. |
406 kg |
| 1200 mm |
0,63 m³ |
4 pc. | 435 kg |
| 1400 mm |
0,74 m³ |
5 pc. | 478 kg |
| 1600 mm |
0,85 m³ |
6 pc. | 521 kg |
| 1800 mm |
0,95 m³ |
7 pc. | 576 kg |
| 2000 mm |
1,06 m³ |
8 pc. | 618 kg |
| 2200 mm | 1,17 m³ | 9 pc. | 686 kg |
| 2400 mm | 1,27 m³ | 10 pc. | 728 kg |
Each agricultural equipment is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID may make changes to the technical specifications without prior notice. Information and graphics on our website are for informational purposes only. Certain equipment features may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID representative.

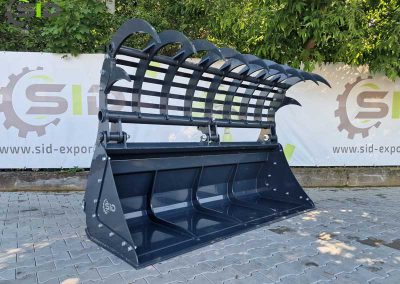

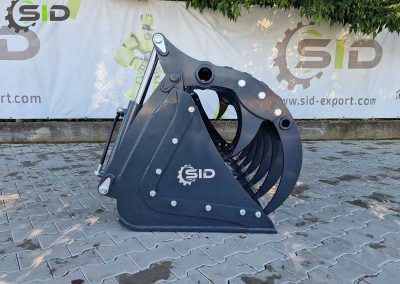

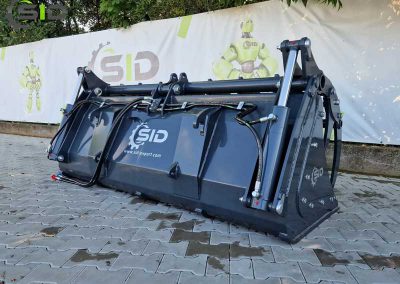

Product Gallery
