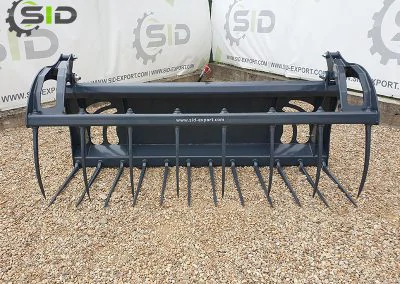

Manure fork with grapple XL
Manure fork with grapple XL is a modern, highly functional agricultural device, specially designed for efficient and easy transportation of manure. Its unique design with a clamping mechanism ensures secure and safe material handling. Made of durable, high-quality materials, Krokodyl guarantees long-lasting performance and resistance to harsh working conditions on the farm.
Description
Manure fork with grapple XL is easy to operate, which allows for quick loading and unloading, significantly increasing work efficiency. Thanks to its versatility, Krokodyl can also be used for transporting other bulk materials, making it an indispensable tool in any modern farm. Its compact construction makes it ideal for working in various conditions, even in limited spaces. Additionally, this device offers easy maintenance and servicing, guaranteeing uninterrupted and efficient operation for a long time. Krokodyl is not just a practical choice but also an investment in the efficiency and development of the agricultural farm.
Manure fork with grapple XL features:
- Reliability you can depend on: durable construction using S355 steel with increased strength.
- Security for your investment: we offer a 12-month warranty on our product.
A full range of equipment for your farm! Don’t forget to check out other products in our offer. Many agricultural devices and accessories such as manure fork, manure fork with grapple mini, or manure fork with grapple .
Discover our entire range of agricultural machinery! Don’t wait and learn about other innovative solutions we have prepared for you. Thanks to them, your farm will operate even more efficiently. We invite you to visit our website and familiarize yourself with the full range of products!
Main product features
Profile 80x80, wall 8 mm, sides 10 mm, reinforcements 10 mm.

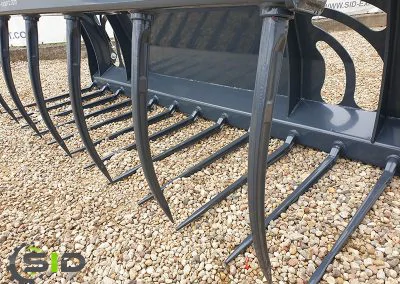

Forged, screwed-on teeth seated in conical sleeves welded into the 80x80x5-6 mm profile.
Hydraulic hoses, double steel braid, DN10 2SN.
Pins made of C45 quality steel, galvanized.
Movable places are lubricated.
The 220x36x73 cylinders are made of the best components, the piston rod does not corrode even when not used for a long time.
The standard is euro mount, each other on request according to customer needs.
12-month warranty.
SID Manure fork with grapple XL – specification
SID Manure fork with grapple XL
Specification
| Width | Capacity | Number of teeths up/down |
Weight |
| 1800 mm |
1,22 m³ |
9/6 |
357 kg |
| 2000 mm |
1,32 m³ |
10/7 |
382 kg |
| 2200 mm |
1,47 m³ |
11/7 |
406 kg |
| 2300 mm |
1,53 m³ |
12/8 |
417 kg |
| 2400 mm | 1,62 m³ | 12/8 |
433 kg |
| 2600 mm |
1,74 m³ |
13/8 |
455 kg |
Each of the agricultural equipment we offer is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID company may introduce changes to the technical specifications without prior notice. Information and graphics on our website are provided for informational purposes only. Certain equipment elements may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID company representative.
