Manure fork with grapple XXL

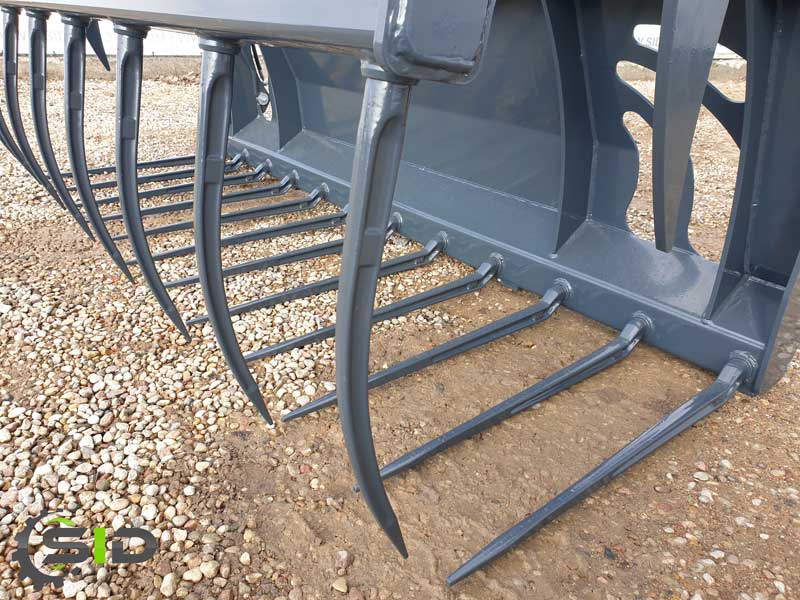

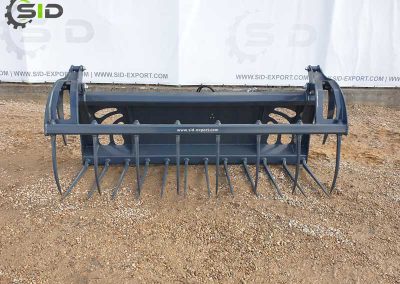

Crocodile manure fork grapple XXL – an equipment for transporting of manure, corn or silage. To clamp the material properly, the crocodile jaws are equipped with high-power hydraulic actuators. The full rear wall secures the material from falling out during transport. The forged teeth have high strength. A significant advantage of the machine is the large opening angle of the moving frame.
Description
To achieve greater efficiency and work quality crocodile jaws were created with high resistance to damage. Equipment is powered by two actuators, which ensure that the jaws’ grip is very strong and assured. Crocodile manure fork grapple XXL are made from high-quality steel a significant advantage is large opening angle of the moving frame, reaching 2100 mm with reaching the capacity up to 2.40 m3. This makes loading manure or corn a simple task.
Main product features
Frame 80 × 80, wall 8 mm, sides 10 mm, reinforcements 10 mm.
Dolne zęby M28 x 1,5.
Hydraulic hoses, double steel braid, DN10 2SN.
Pins made of C45 quality steel, galvanized.
Movable places are lubricated.
Height 1300 mm.
Opening height 2100 mm.
Depth 1400 mm.
The standard is euro mount, each other on request according to customer needs.
12-month warranty.
A solid and durable structure made of S355 high-quality steel.
SID Manure fork with grapple XXL – specification
SID Manure fork with grapple XXL
Specification
| Width | Capacity | Number of teeth up / down |
Weight |
| 1800 mm |
1,60 m |
6/9 |
421 kg |
| 2000 mm |
1,85 m |
7/10 |
451 kg |
| 2200 mm |
2,00 m |
7/11 |
481 kg |
| 2400 mm |
2,20 m |
8/12 |
506 kg |
| 2500 mm |
2,30 m |
8/12 |
521 kg |
| 2600 mm |
2,40 m |
8/13 |
531 kg |
Our all agricultural equipment offered are sandblasted and powder coated. It’s the most effective modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protect of anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
As part of our policy of continuous improvement, SID may make changes to the technical specifications without prior notice. Information and graphics on our website are for informational purposes only. Certain equipment features may be available as an option and are not part of the standard offer. To learn more about the warranty, safety standards, and products, please contact a SID representative.
