Grab bucket forged tines XL

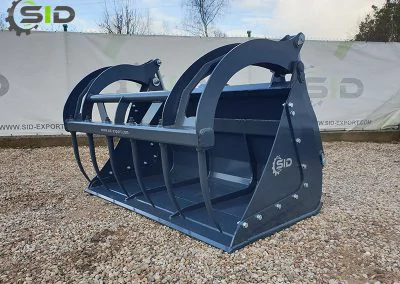

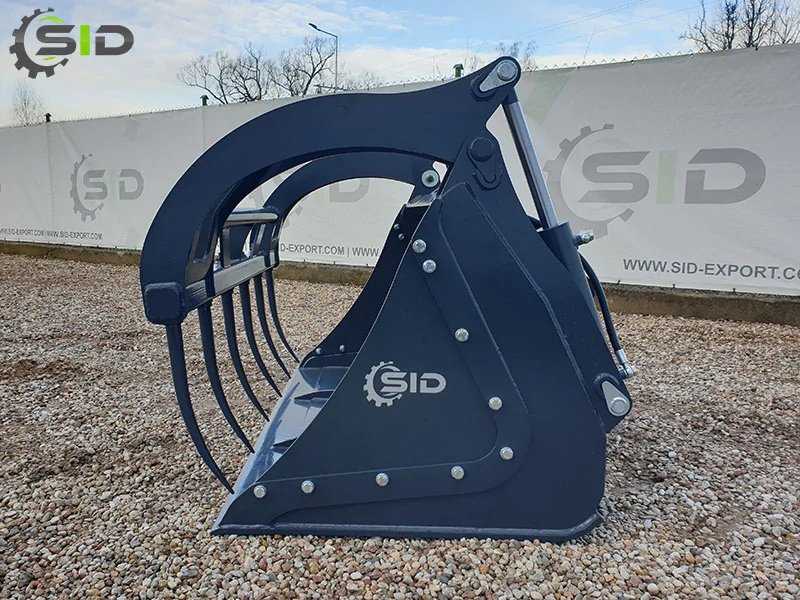

Crocodile grab bucket forged tines XL – an equipment for working with silage, but it also performs its function well in other tasks related to gripping and gathering in agriculture, municipal services and small enterprises.
The crocodile grab bucket forged tines XL is equipped with a conical scoop that facilitates filling and emptying of the machine. There is no problem with access to the material, including near walls, since it opens very wide. The possibility of unfastening the sides affords easier transport of wood material, ie branches, etc. Thanks to the application of blades made of HARDOX abrasion-resistant steel and the possibility of lubricating moving parts on sleeves, the machine is protected against rapid wear.
It is also possible to equip the crocodile shovel with detachable sides, which will help in some work. The euro mount is standard, but we have a wide range of mounts.
Main product features
Sheathing 6 mm, steel S355, Hardox 500 HB blade 150 × 15, reinforcements 15 mm.
Hydraulic hoses, double steel braid, DN10 2SN.
Pins made of C45 quality steel, galvanized.
Movable places are lubricated.
Height 1100 mm.
Opening height 1700 mm.
Depth 1200 mm.
The standard is euro mount, each other on request according to customer needs.
Possibility to manufacture with dimensions according to customer needs.
|2000 mm||1,42 m³
Crocodile grab bucket forged tines XL an equipment is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. It is used in protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
