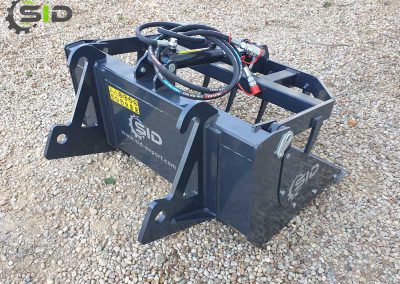

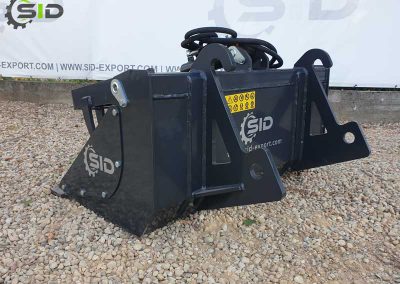

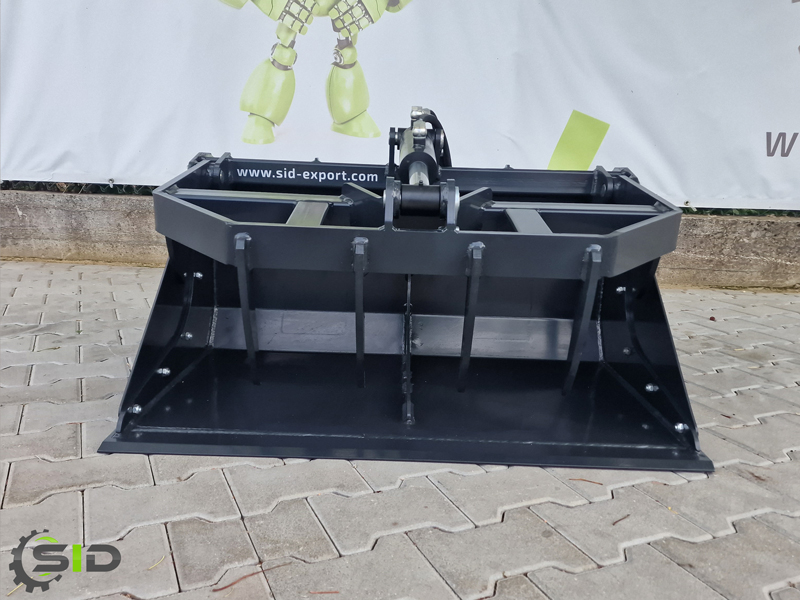

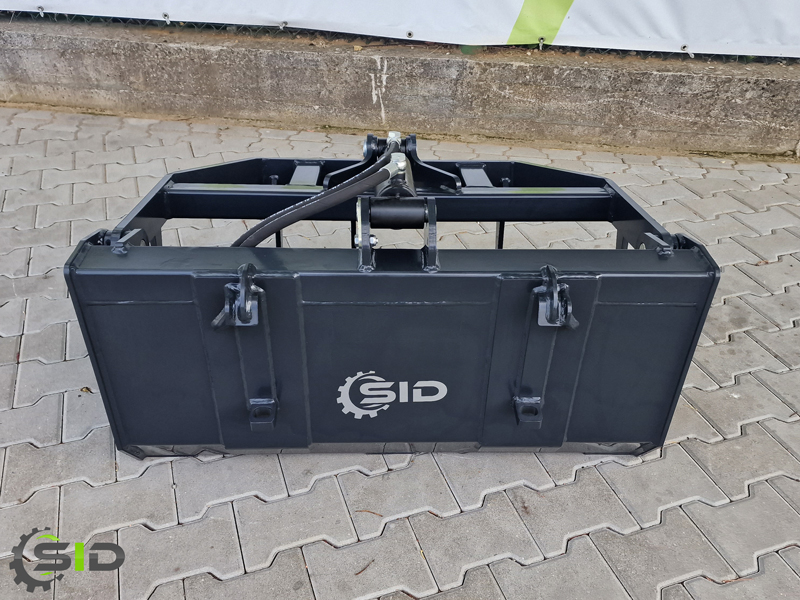

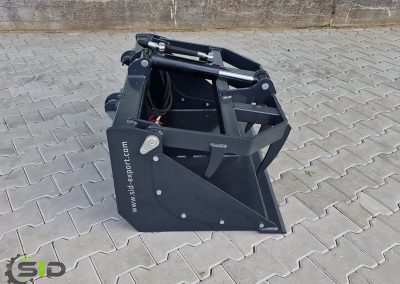

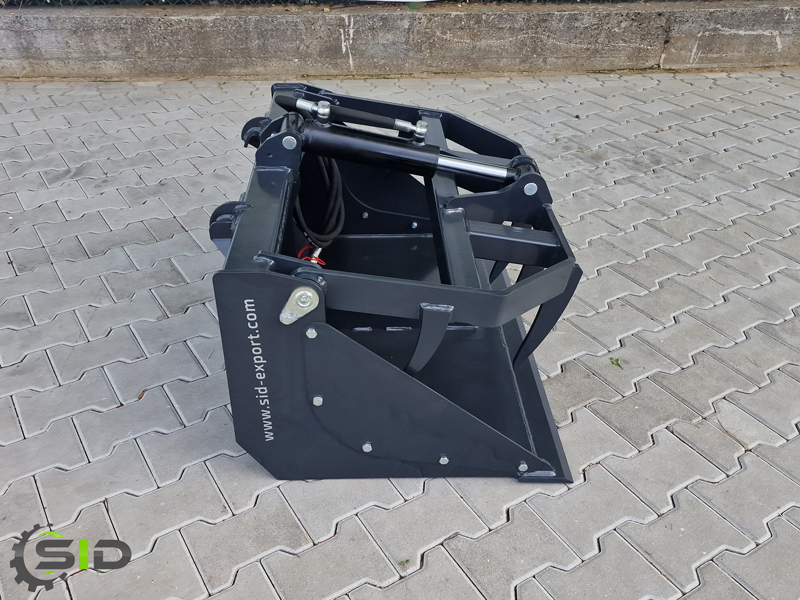

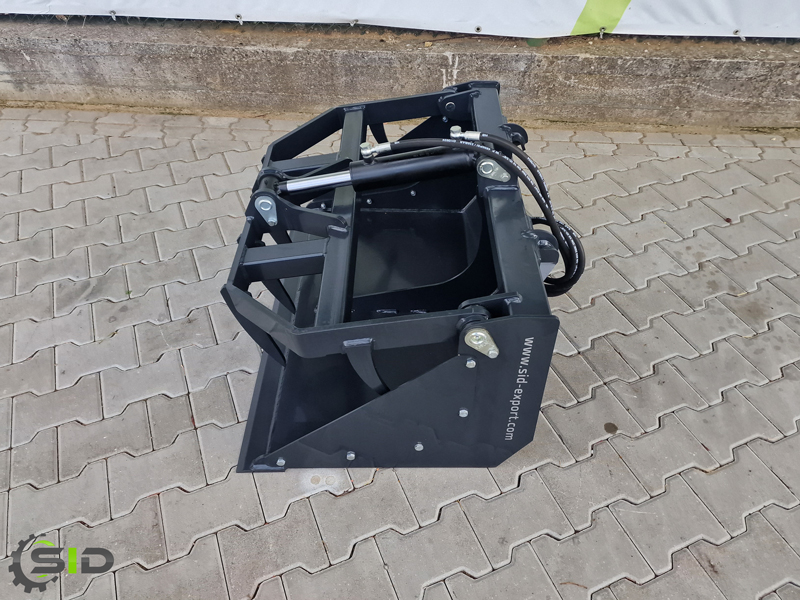

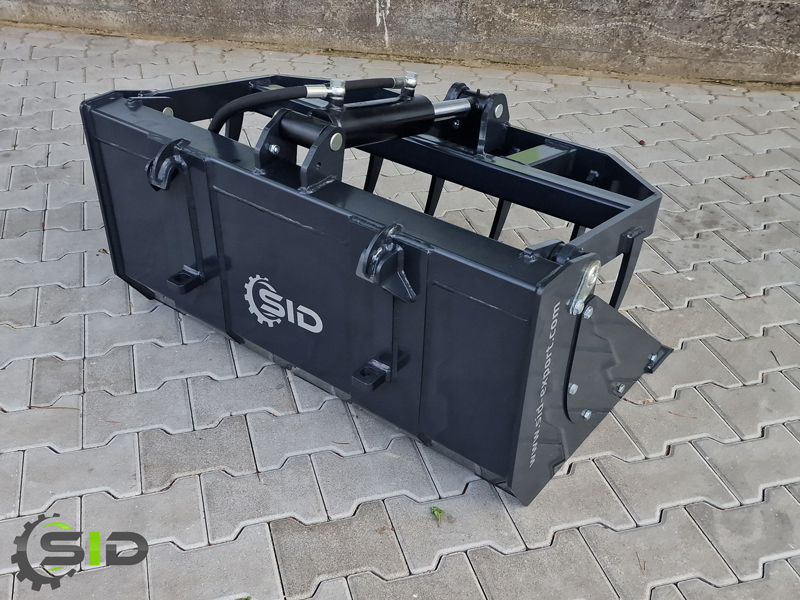

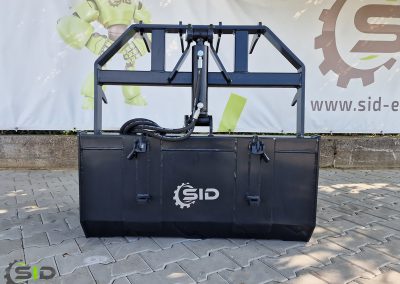

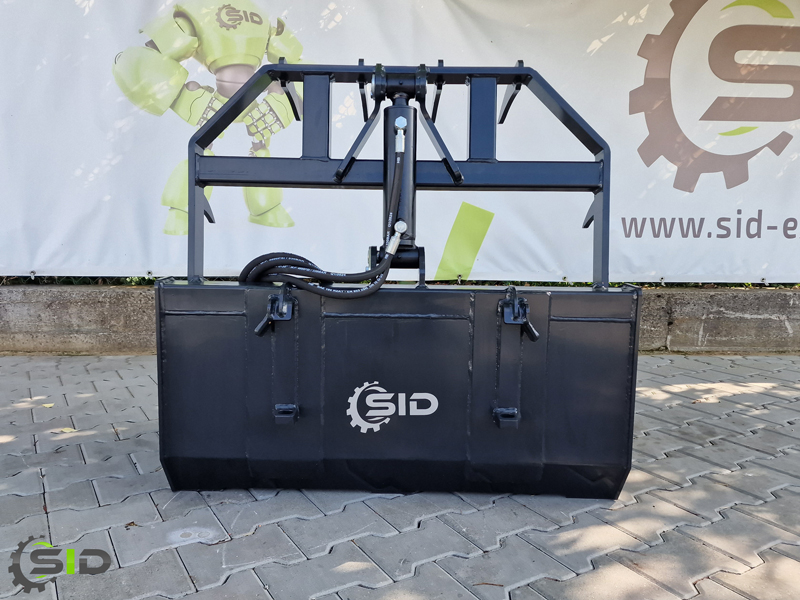

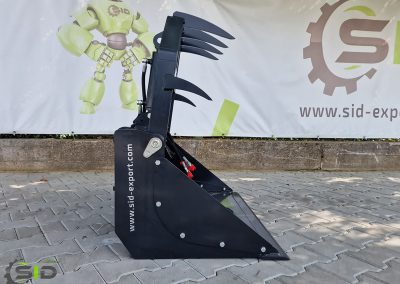

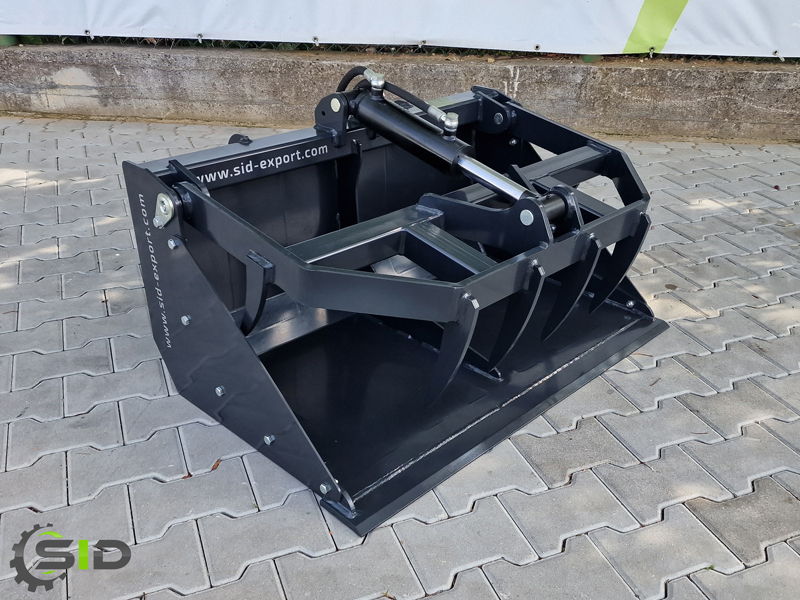

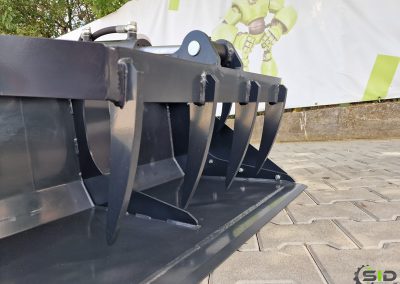

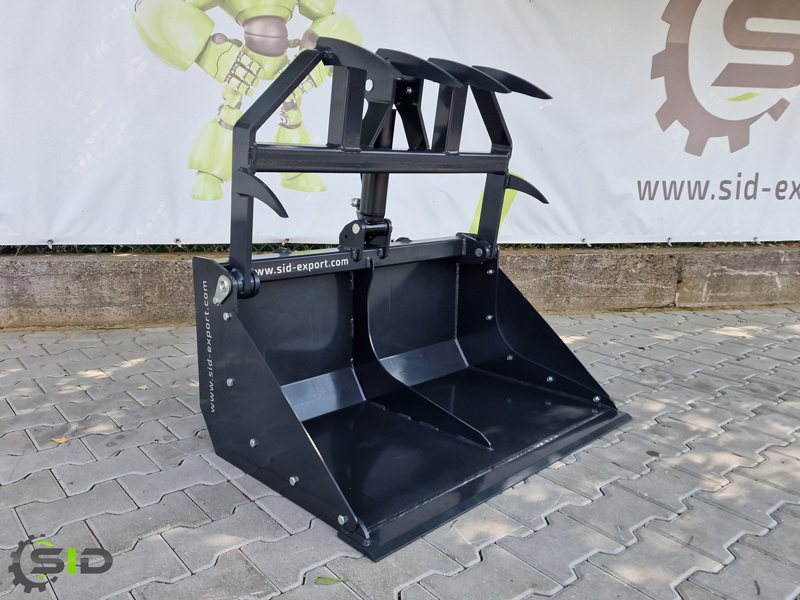

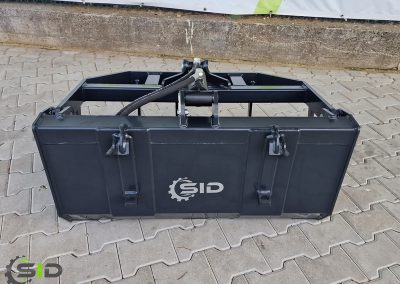

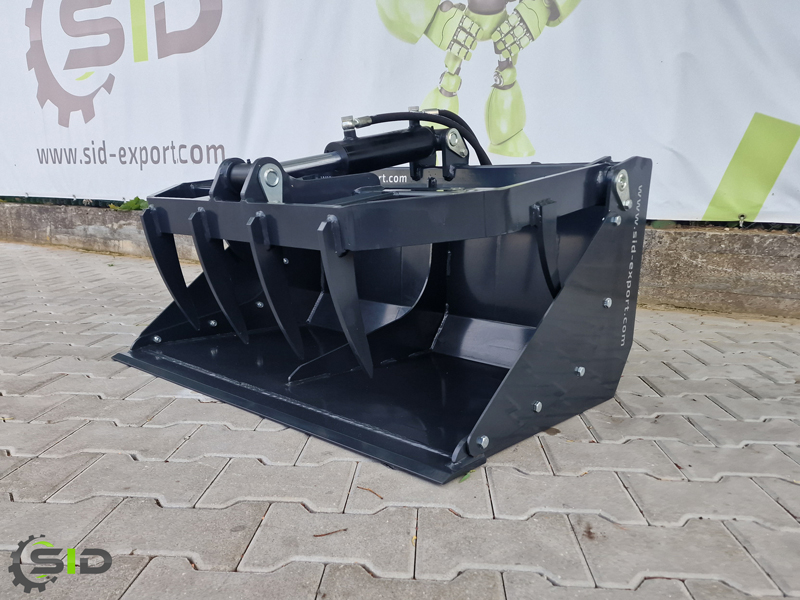

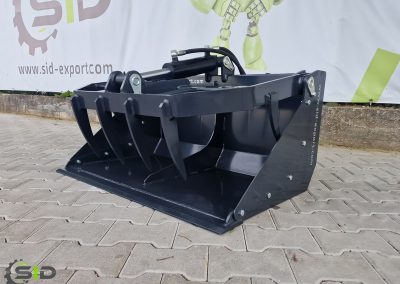

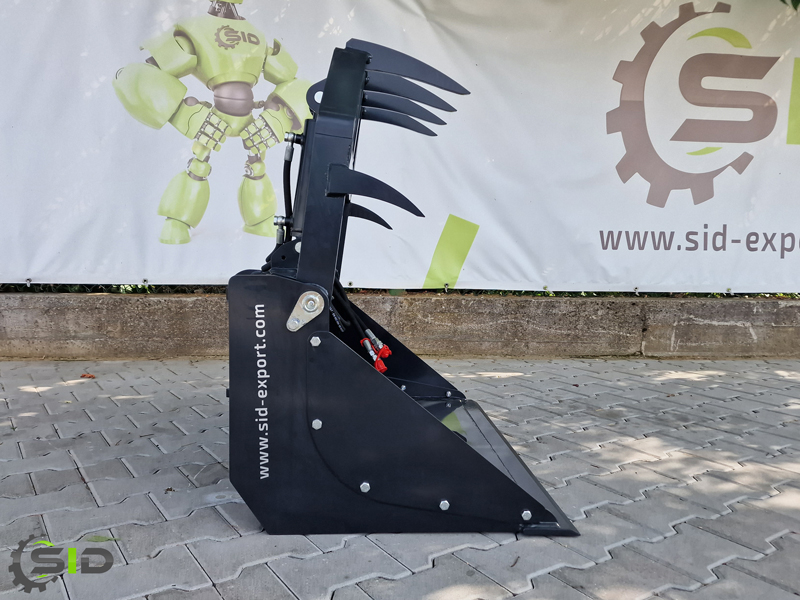

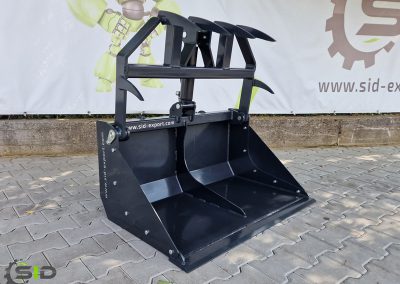

Grab bucket Mini burned tines
The grab bucket Mini burned tines is primarily a silage handling attachment, but it also performs well when carrying out other grabbing and harvesting tasks in agriculture.
Description
Grab bucket Mini burned tines is equipped with a conical bucket that makes it easy to fill and empty the unit, the detachable sides make it easier to transport different types of material. Thanks to the use of HARDOX wear-resistant steel blades and the possibility of lubricating the moving points on the bushings, the machine is protected against rapid wear.
Main product features
A solid and durable structure made of high-strength steel S355.
Sheathing - 8mm
Sides - 6mm.

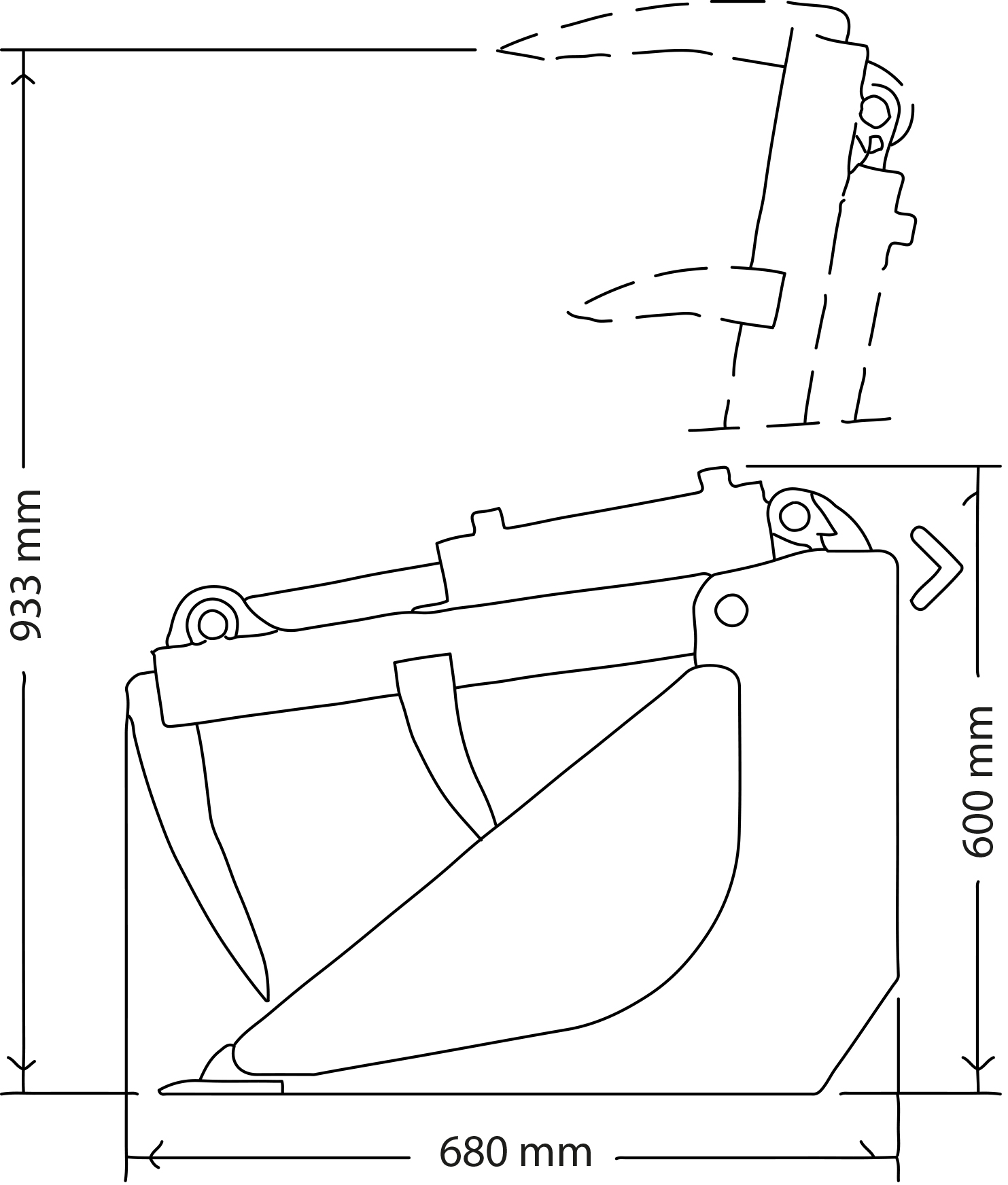

Depth - 680 mm.
Actuator diameter 720 mm.
Front tooth length 260 mm, thickness 13 mm.
A high-powered hydraulic cylinder enables adequate and secure compression of the material.
The full bottom of the crocodile bucket allows the material to be completely collected and prevents it from falling out during transport.
The standard is euro mount, each other on request according to customer needs.
12-month warranty.
Specification
| Width | Volume |
Nember of tines |
Weight |
| 1000 mm |
0,21 m |
4 |
156 kg |
| 1200 mm | 0,25 m |
5 |
172 kg |
| 1400 mm |
0,29 m |
5 |
183 kg |
| 1600 mm | 0,34 m | 6 |
195 kg |
The grab bucket mini burned tines we offer is sandblasted and powder coated. This is by far the most effective of the modern metal coating methods used today. Contrary to traditional (liquid) varnishes, powder paints guarantee smooth coatings, without cracks, stains, bubbles and wrinkles. They are used for protective, anti-corrosion and decorative painting of metal objects. The thermal resistance of the coating is approx. 100 ° C. The coatings are characterized by very good mechanical properties and high resistance to chemical agents. A special advantage of powder paints is their versatility (thanks to the possibility of obtaining coatings with various degrees of gloss in a wide range of textures and structures, in full RAL colors).
